SolarEdge StorEdge Solution with Backup

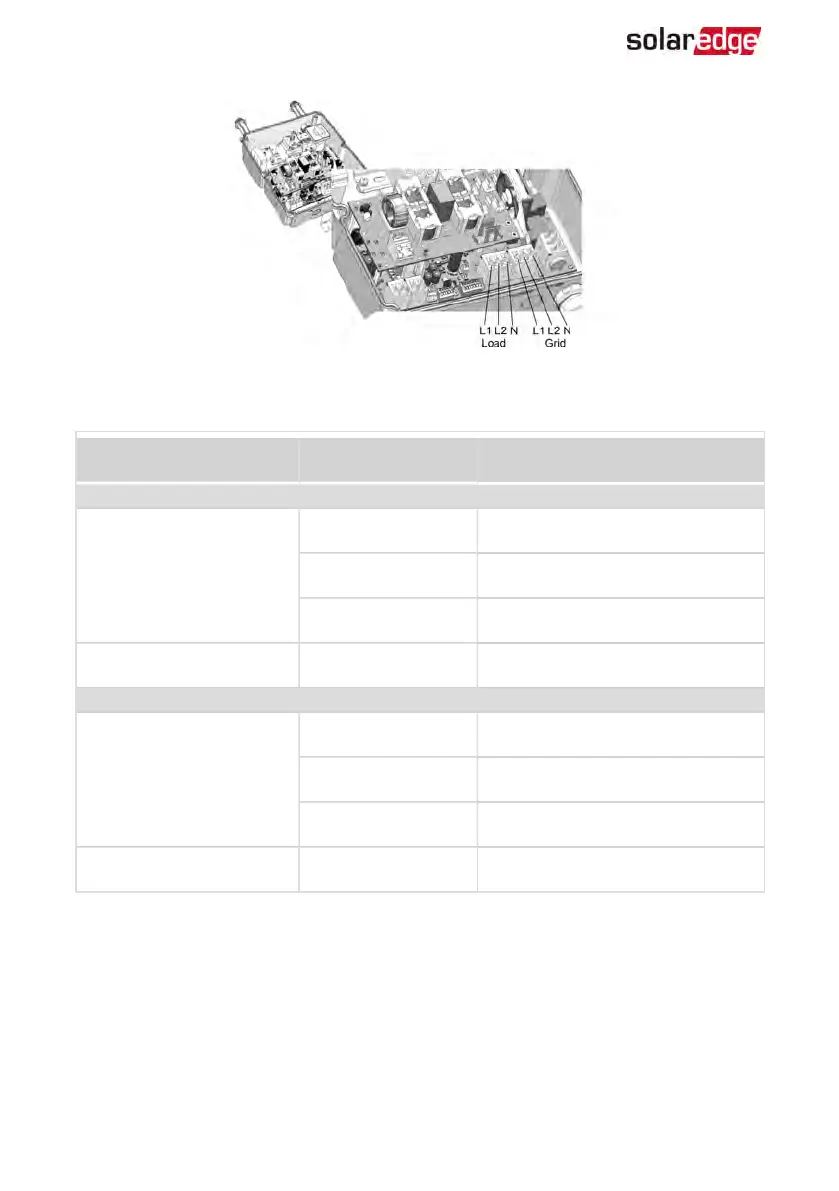

Figure 31: Connection to grid, backed-up loads
Prepare cables and connect as described in the following table:
Recommended cable type
(min-max AWG)
StorEdge Connection
Unit connection
External connection
Grid
6 AWG (4-20 AWG)
3-pin terminal block:
Grid L1
Main distribution panel: L1
3-pin terminal block:
Grid L2
Main distribution panel: L2
3-pin terminal block:
Grid N
Main distribution panel: N
Min. 10 AWG grounding
wire
 to ground
Backed-up loads panel
6 AWG (4-20 AWG)
3-pin terminal block:
L1
Backed-up loads panel: L1
3-pin terminal block:
L2
Backed-up loads panel: L2
3-pin terminal block:
N
Backed-up loads panel: N
Min. 10 AWG grounding
wire
 to ground
StorEdge Solution with Backup MAN-01-00262-1.5
70 Connecting to AC
