In the adjacent table, you can select the time values (general values, DC values, AC values)
of the device to be shown.

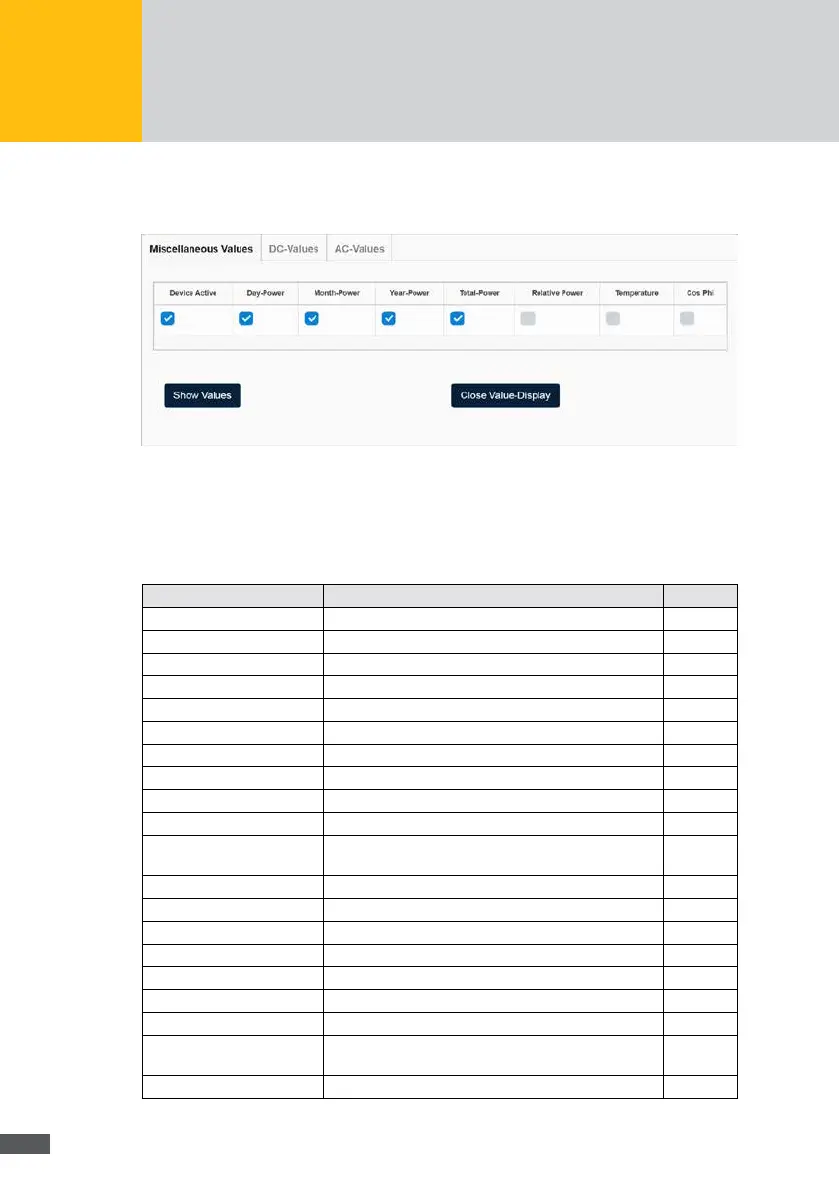

Fig. 21: Time values of the device settings
Click on the Show values button to view the selected values.
Click on the Close value display button to close the list of values.
The following measured values can be selected:
Measured value Description Unit
AC power Active power kW
Reactive power Q Reactive power Kvar
DC power Total input power kW
Energy day Daily yield kWh
Energy month Monthly yield kWh
Energy year Annual yield kWh
Energy total Total yield kWh
Mains frequency Mains frequency Hz
Line period Duration of mains period ms
Pdc 1 … Pdc 12 Input power tracker / string 1 … 12 kW
Relative power Calculated value, corresponds to "AC output / installed
capacity x100"
%
Apparent power S Apparent power output kVA
Voltage Uac L1 AC output voltage, phase 1 V
Voltage Uac L2 AC output voltage, phase 2 V
Voltage Uac L3 AC output voltage, phase 3 V
Voltage Udc DC input voltage V
Voltage Udc 1 … DC-Eingangsspannung Tracker 1 … Tracker 12 V
Voltage Udc 12 DC input voltage tracker 1 … tracker 12 V
Voltage Ugnd Voltage of the PV generator in comparison with the
ground potential (DC + and DC – to ground)
V
Voltage Uzk Intermediate circuit voltage A
