7828 Density Transmitter Technical Manual Introduction
78285000_AB 1-3
1.1.4 TYPICAL 7828 APPLICATION
Net Mass flowrate calculation
Magnetic
Flow
Meter
Volume
Flow Rate
7828
Density
Transmitter
% Solids
Net
Mass
calc.
RS485
Solartron’s
ADView
Windows
TM
Tool

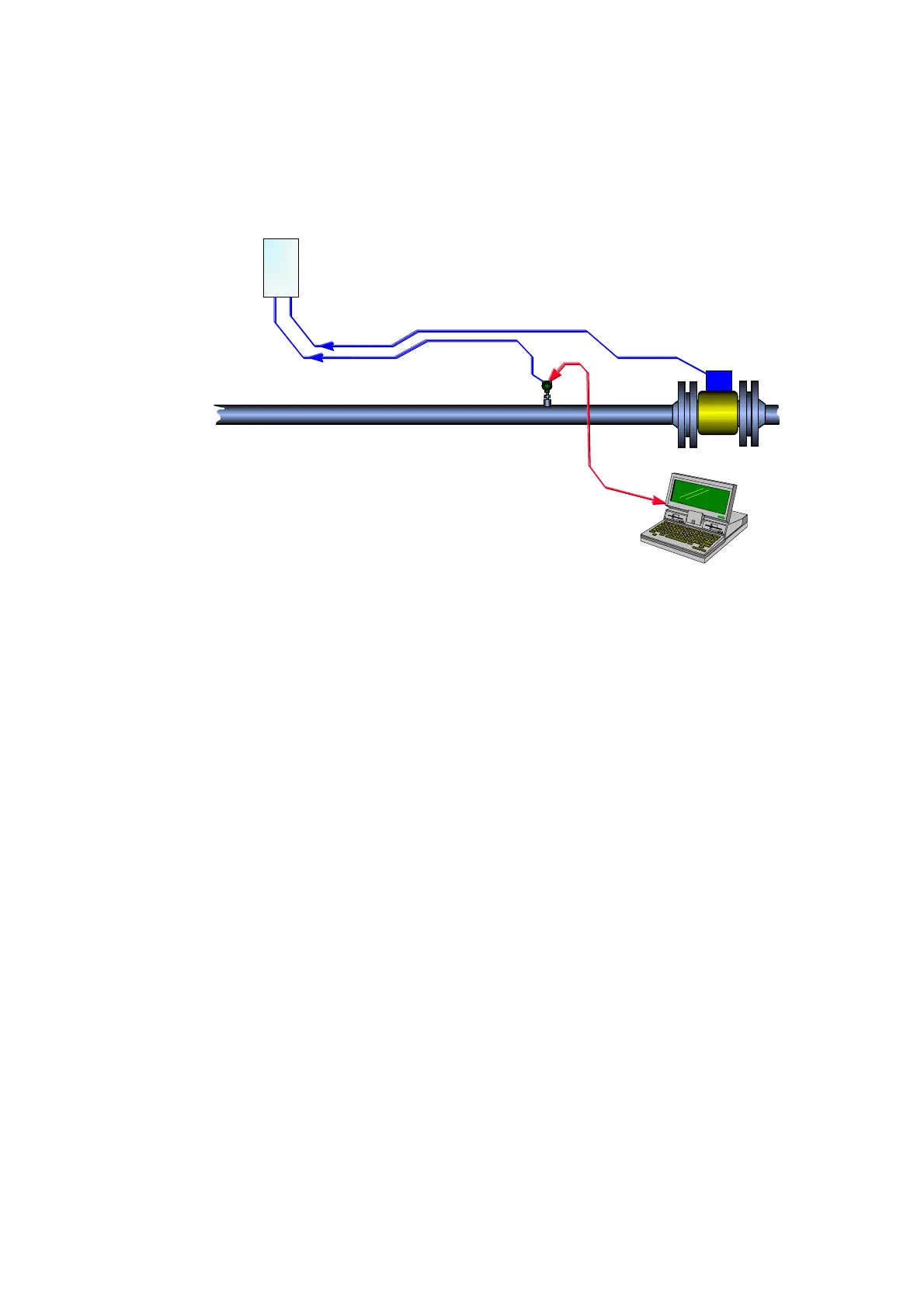

This shows and outline of a typical wet process mineral application where 7828 provides a
4-20mA signal of the %solids determination from the slurry stream. From this signal and
the measured volumetric flowrate, net mass flowrate is determined.
The output signal could also be used for %solids control or for net mass flow rate ratio
blend control.
The optional RS485/Modbus connection to a PC running ADView can be used for
configuration and access to other measured values.
