Mechanical Installation 7828 Density Transmitter Technical Manual
2-8 78285000_AB

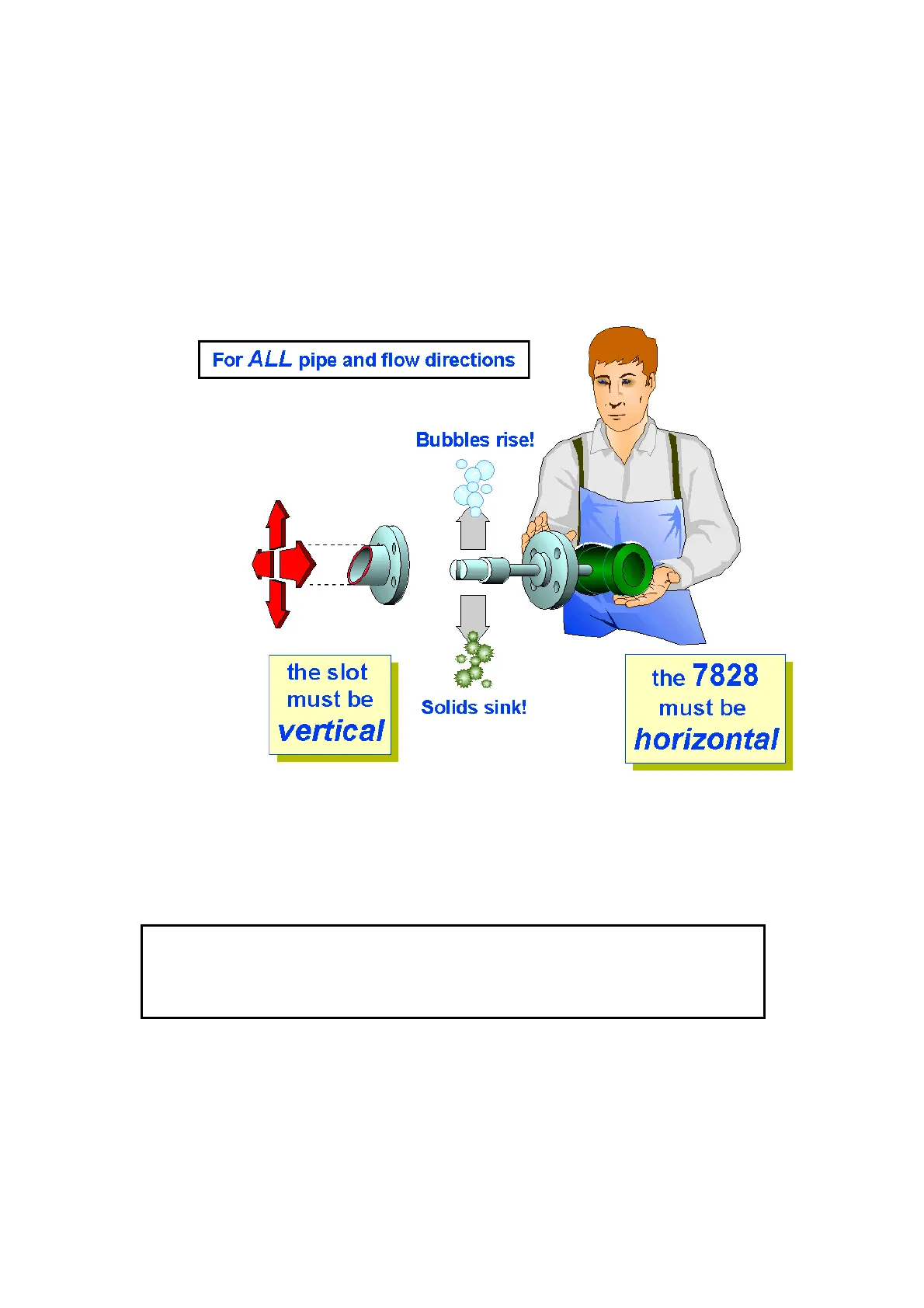

2.3.1 7828 ORIENTATION
For Free-stream and T-piece installations, it is essential that the 7828 is always
orientated with the transducer horizontal and the slot between the tines vertical.
This is irrespective of the pipe line orientation, and helps to prevent the trapping of
bubbles or solids on the transducer.
Note: All drawings and dimensions given in the following sections are derived from
detailed dimensional drawings. They are given here for planning purposes only.
Before commencing fabrication, reference should always be made to the current issue
of the appropriate drawings - contact Solartron for details.
