MIC-10 / MIC-30 – USER MANUAL
- Disabling t2 will also disable t3.
- Timer measuring the measurement time is started when V
ISO
voltage is stabilized.
- Symbol LIMIT I! indicates working with current limiting (e.g. when charging an object).
- If the work with limited current lasts for 20 seconds, the measurement is interrupted.
- When the timer passes specific points (tx times) a long beep is emitted.
- If any of the measured values of partial resistance is out of range, the value of the absorption
coefficient is not displayed – the display shows dashes.
- During the measurement LED is lit in orange.
- After completion of measurement, the capacitance of the object tested is discharged by shorting test
terminals with the resistance of 100k.
- Capacitance of the object is measured at the end of the measurement during the object discharge.
- If during the measurement, an external voltage is present, after 20 seconds the measurement is
stopped, is displayed and two-tone beep is emitted, LED will lit in red.

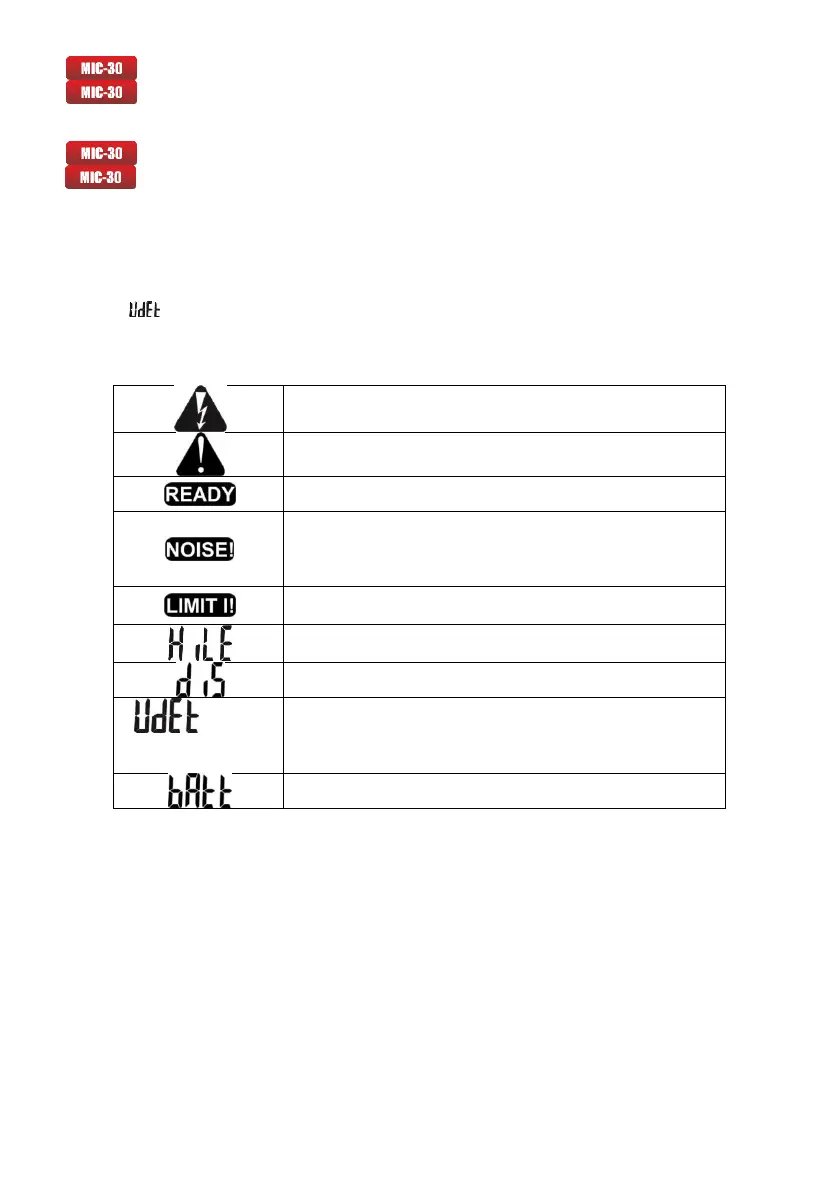

Additional information displayed by the meter
Test voltage is present on terminals of the meter.
You must consult the manual.
The meter is ready for measurement.
This inscription displayed after the measurement indicates
noise in the system during the measurement. The
measurement result may be affected by additional
uncertainty.
Activation of current limit. The symbol displayed is
accompanied by a continuous audio signal.
Leakage current too high (breakdown of insulation during
the measurement.)
Discharging of the object tested after the measurement.
LED is lit
in red, two-tone
acoustic signal
The tested object is live. The measurement is blocked.
Discharged batteries (rechargeable batteries).
