MIC-10 / MIC-30 – USER MANUAL
8

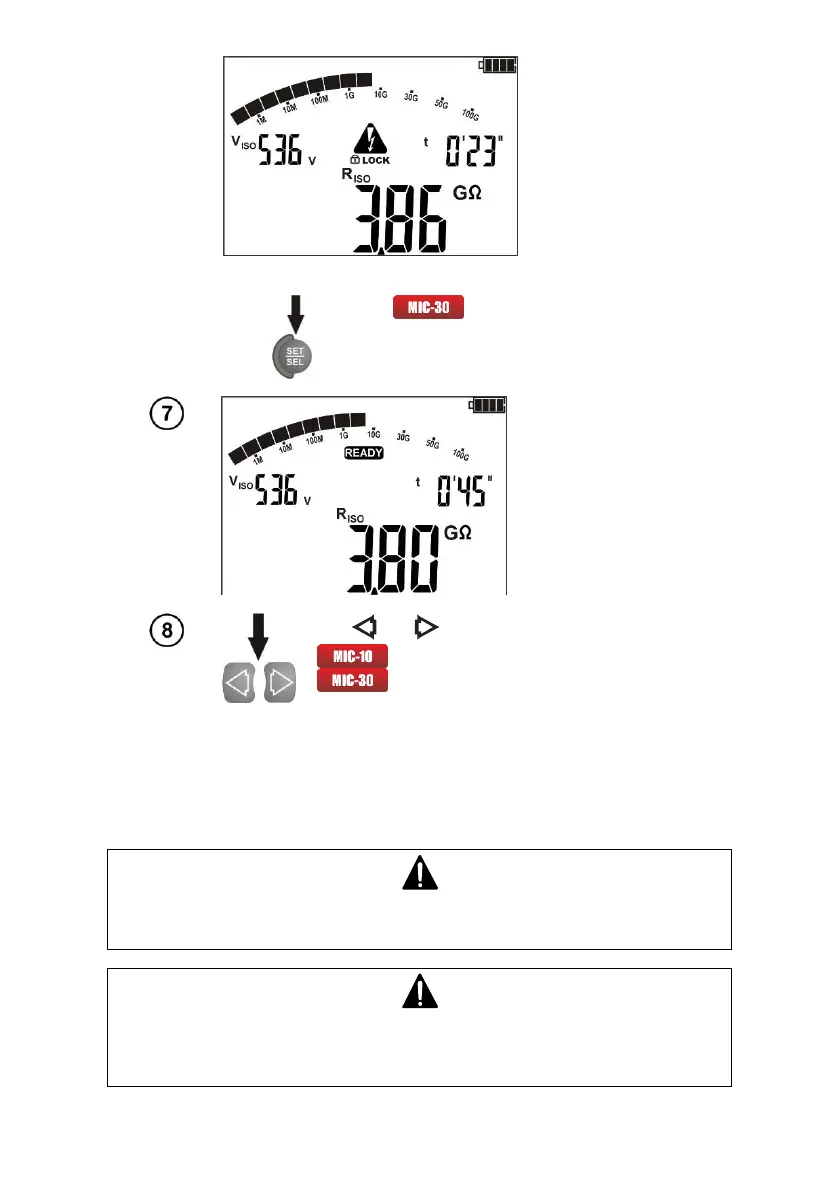

View of the screen
during
measurement.
Using SET/SEL you may
display the leakage current I
L
instead of
V
ISO
.
After measuring is
completed, read the
result.
Use and to see:
the capacitance of the tested object,
individual components of the result in the
following order:
(R
ISO
+ U
ISO
)→(C + I
L
)→(Rt1 + It1)→(Rt2 + It2)→
(Rt3 + It3)→(Ab1(DAR) + U
ISO
)→(Ab2(PI) + U
ISO
)→
(R
ISO
+ U
ISO
), where C – is the capacitance of the
tested object.
Notes:
During measurements of insulation resistance, dangerous voltage up to 1 kV
occurs at the ends of test leads of MIC-10 / MIC-30 meter.
It is forbidden to disconnect test leads before the measurement is completed.
Failure to obey the above instruction will lead to high voltage electric shock and
make it impossible to discharge the object tested.
