4 Installation and Adjustments
The following steps and procedures detail the installation and setup of a typical blower
assembly. Disassembly of a blower unit is the opposite of the assembly procedure.
4.1 Lifting and Handling
Due to the weight of the blower / motor assembly, it should be lifted by a hoist or forklift
using the single eyebolt on the top middle of the motor (See Figure 5). See Section 6.1 -
Component Specification Sheet for weight and dimension details.

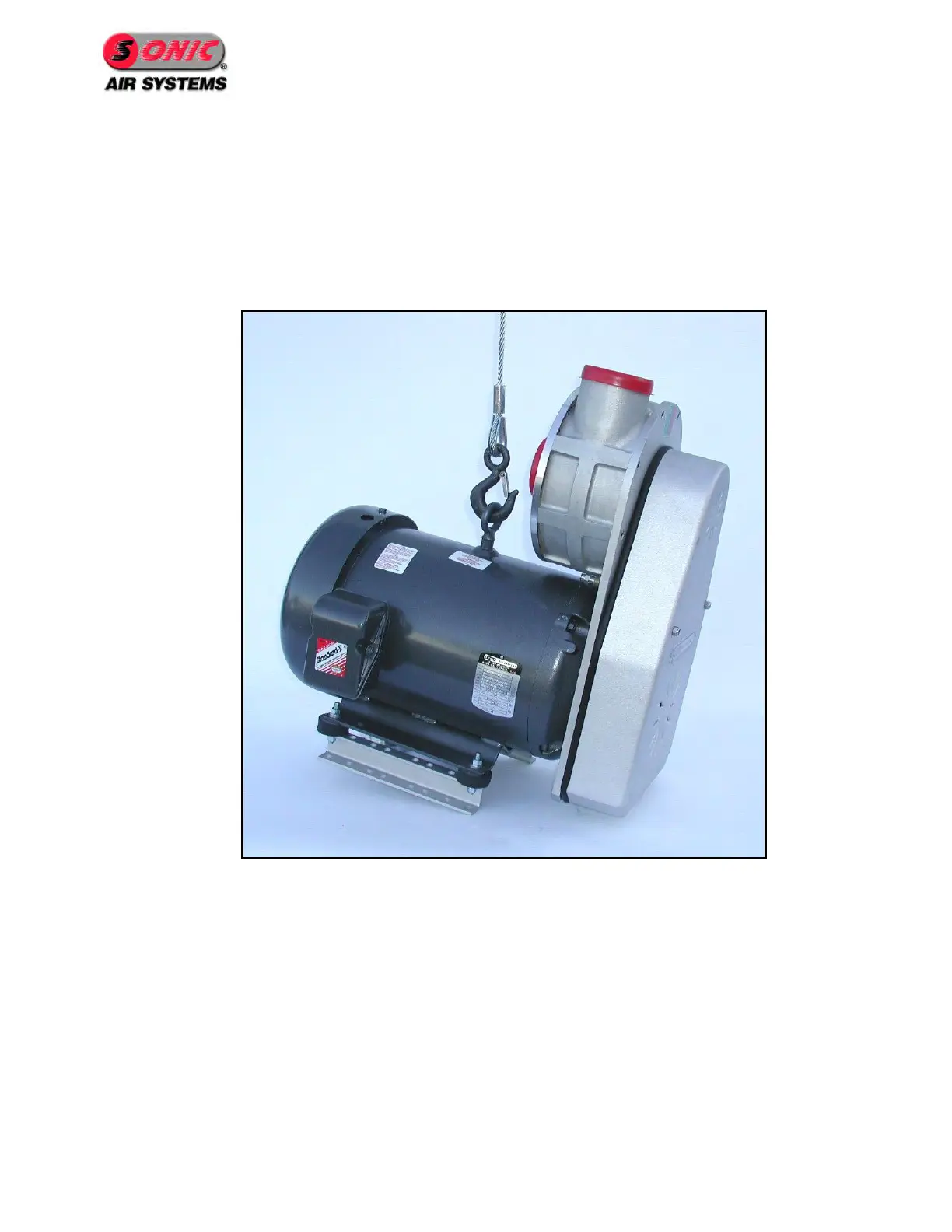

Figure 5 - Blower Lifting Point
4.2 Blower Location
4.2.1 Access
Make certain to allow room for proper ventilation and accessibility to remove the
belt guard for belt replacement as well as filter servicing. Never block the
ventilation holes in the belt guard. Mount the blower / motor assembly in a well
ventilated area to prevent motor overheating and premature belt and / or blower
head failure.
