1 Sonic 150 / Sonic 150C

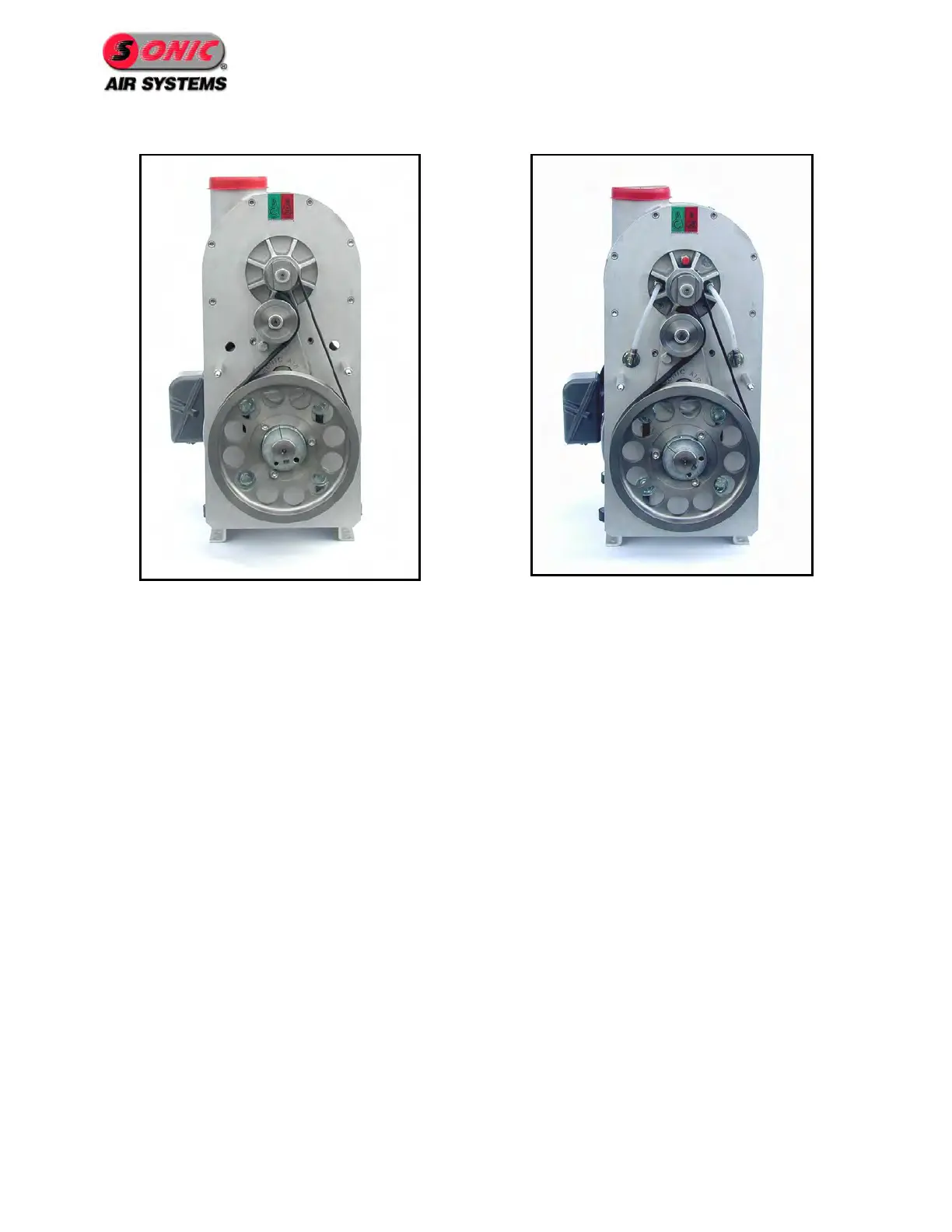

Figure 1 - Sonic 150
Figure 2 - Sonic 150C
1.1 Introduction
Thank you for the recent purchase of a Sonic 150 or Sonic 150C centrifugal blower or
retro-kit. Sonic Air Systems is confident that the blower unit is the best available in this
performance range. Sonic manufactures blowers using the finest components available,
assembles using only highly trained and qualified personnel, and inspects each unit 100%
for quality and performance.
The following manual is intended to:
Identify safety hazards
Familiarize personnel with the equipment performance
Demonstrate typical installation and usage
Identify maintenance schedule and typical spare components
Provide Sonics’ Performance Guarantee and Warranty information
1.2 Blower Performance
The Sonic 150 series blower is a single stage centrifugal blower and has been designed in
accordance with fan engineering laws. Horsepower demand increases in proportion to
increased air volume (motor amperage draw increases). As the air volume decreases
(valve closes or filter clogs), the amp draw decreases. Always check a fully installed
system to ensure that the motor is not overloaded.
