Sonic Air Systems Sonic 150 - Sonic 150 C Blower Unit Parts

Page 22

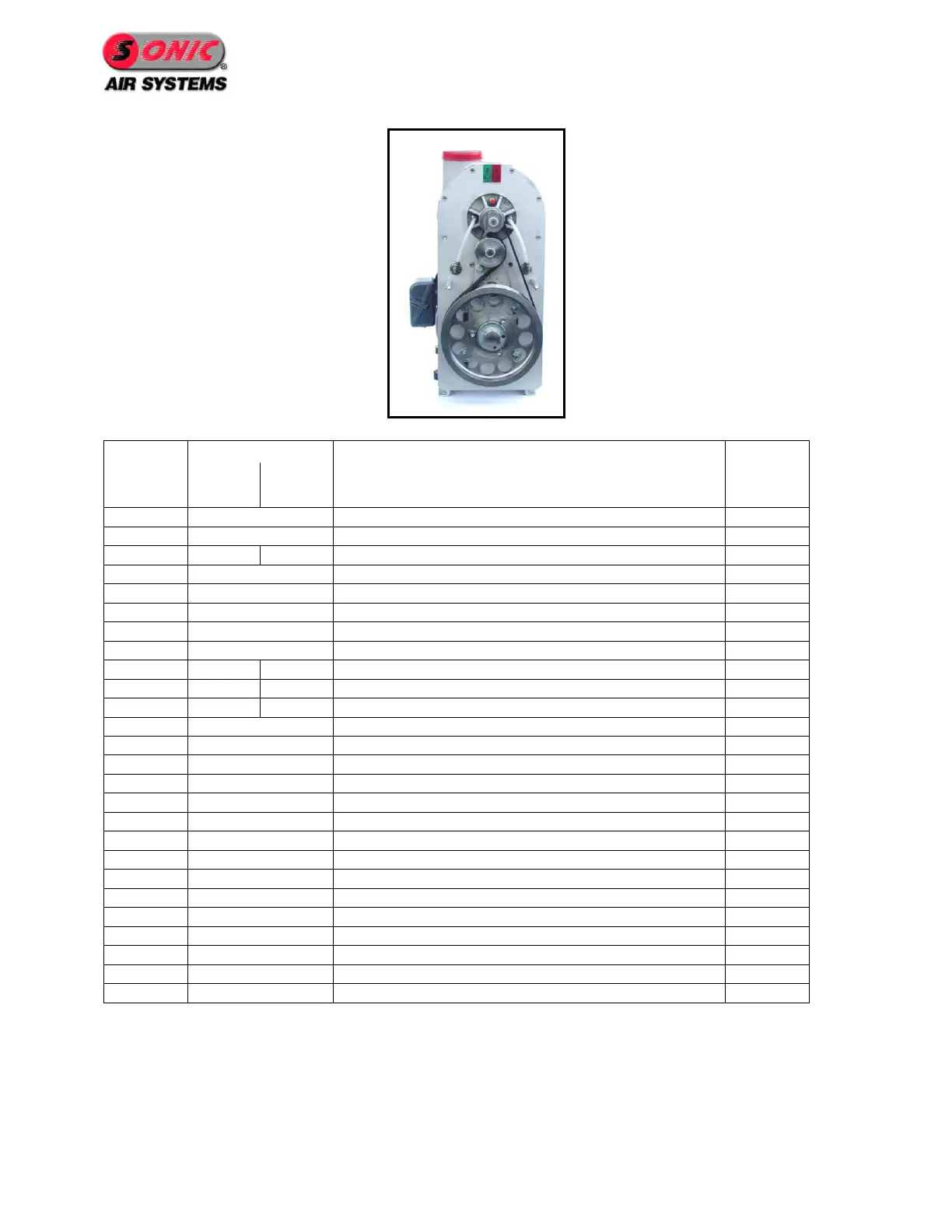

6.3.2 Sonic 150C Blower Unit
Item
Part No.
Description
Qty.
No.
215TC &
256TC
Frame
284TSC
Frame
(Only)
1
Section 6.4.1
Motor, Electric
1
2
14459
Blower Head, Sonic 150C
1
3
12335
12623
Bracket, Sonic 150
1
4
13455
Belt Tensioner Assembly
1
5
13450
Pulley, Blower
1
6
13452
Pulley, Motor
1
7
Section 6.4.2
Bushing Kit
1
8
Section 6.5
Belt
1
9
11130
12615
Belt Guard
1
10
11934
12548
Vibration Isolators
4
11
10653
N/A
Uni-mounts
2
12
Feed thru Assembly – Water Cooled
2
13
15018
Retainer – Blower Pulley
1
14
13506
Standoff Assembly
2
15
(Not Required)
16
10454
Screw, 5/16-18 x 1.0 Lg. SHCS SS
8
17
13482
Screw, 5/16-24 x 1.0 Lg. FHCS SS
1
18
12342
Nut, 5/16-18 Hex SS w/ Nylock
2
19
13573
Screw, 3/8-16 x 1.5 Lg. SHCS (See Bushing Kit)
3
20
10759
Screw, ½-13 x 1.5 Lg. HHC Plated
4
21
12340
Screw, 5/16-18 x 1.5 Lg. FHS SS
1
22
11251
Washer, 3/8” Flat Plated
8
23
11407
Lock Washer, 3/8” Plated
8
24
10273
Nut, 3/8-16 Hex Plated
8
25
10263
Washer, ½” Plated
4
26
12364
Lock Washer, ½” Plated
4
