Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
12(50)
Disassembly

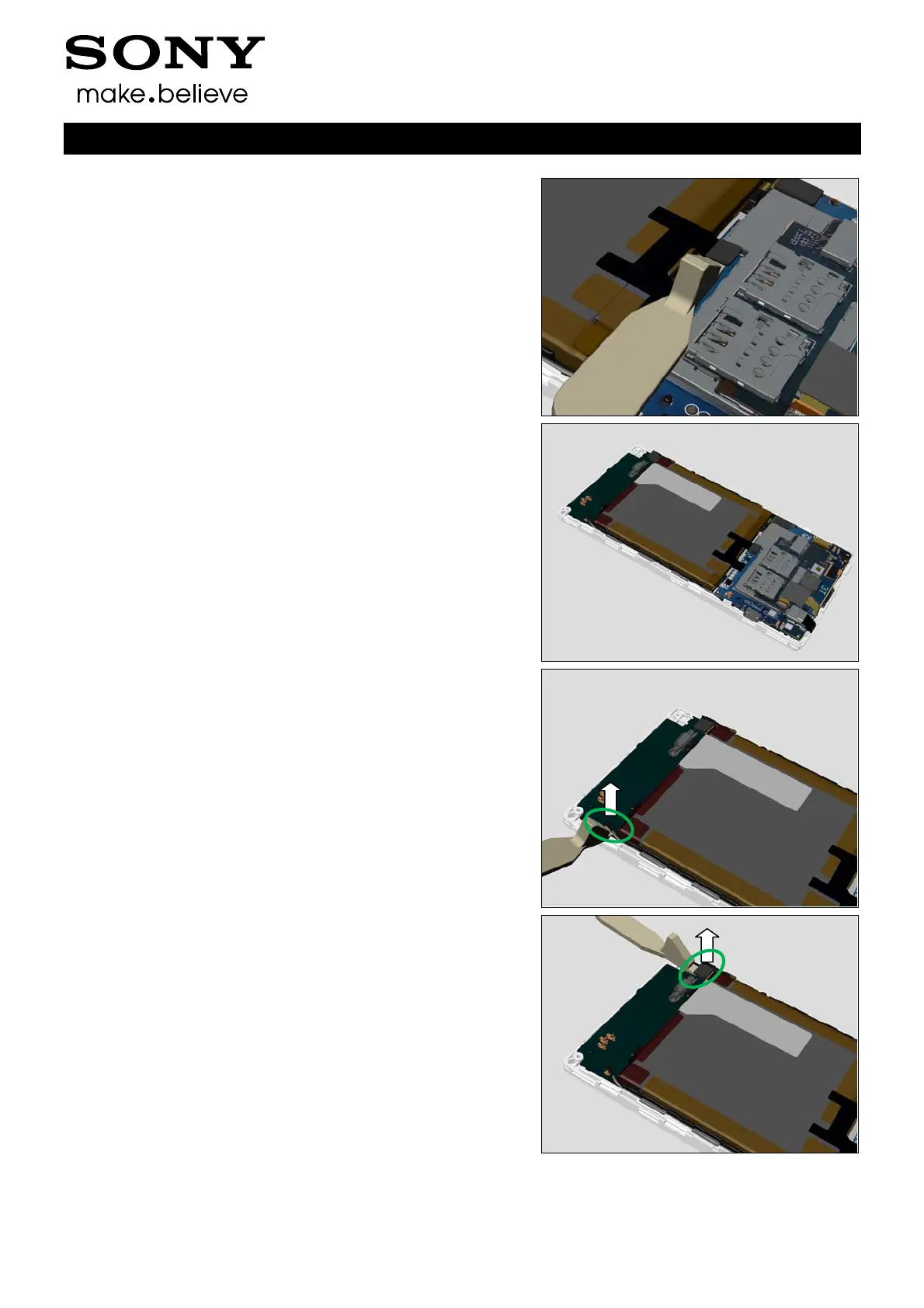

Open Battery FPC BtB Connector using Front Opening Tool.
The Core unit as shown in picture.
Open the Coaxial Cable connector on SUB Board Assy.
Open the Link FPC connector on SUB Board Assy.
To Next Page
