Sony C2305 - Liquid Intrusion Label

Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
34(50)
Replacement

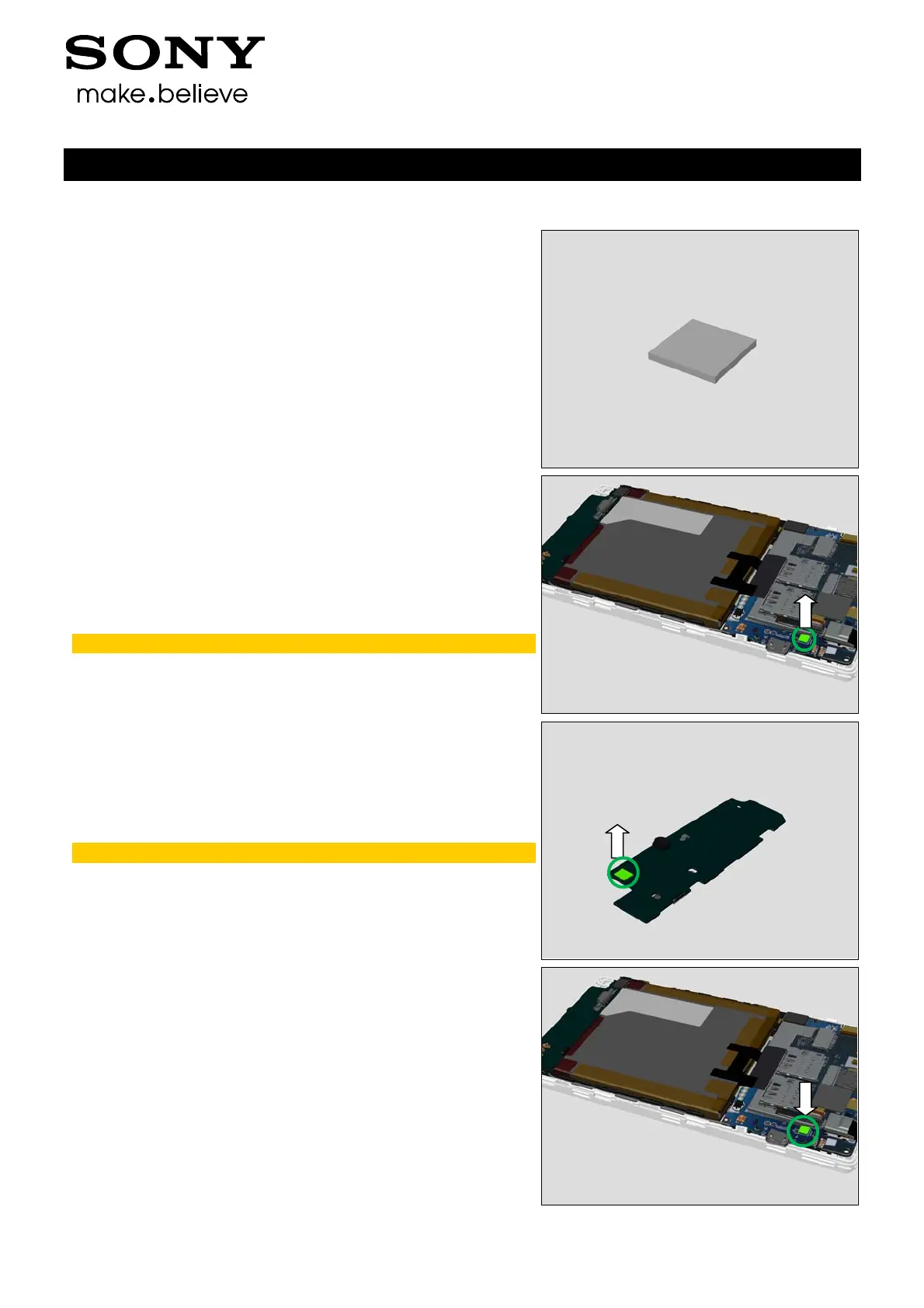

4.20 Liquid Intrusion Label
Follow the 3.1 – 3.3 Disassembly instructions!
Carry out the Removal as described below.
Prepare the new Liquid Intrusion Label.
Carry out the Installation as described below.
Follow the 5.4 – 5.6 Reassembly instructions!
REMOVAL
There are two Liquid Intrusion Labels on the phone.
Remove the one on Main PBA.
Scrap! Not to be reused!
Remove the other one on SUB Board Assy.
Scrap! Not to be reused!
INSTALLATION
Place a new Liquid Intrusion Label on Main PBA.
