Sony C2305 - Reassembly; Front Cover LCM TP Assembly

Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
39(50)
5 Reassembly
The reassembly is done in the following order:
1. Front Cover LCM TP Assy
2. Main PBA (a) & Coaxial Cable (b)
3. Rear Cover Assy
4. Battery Cover Assy
5.1 Front Cover LCM TP
Assembly

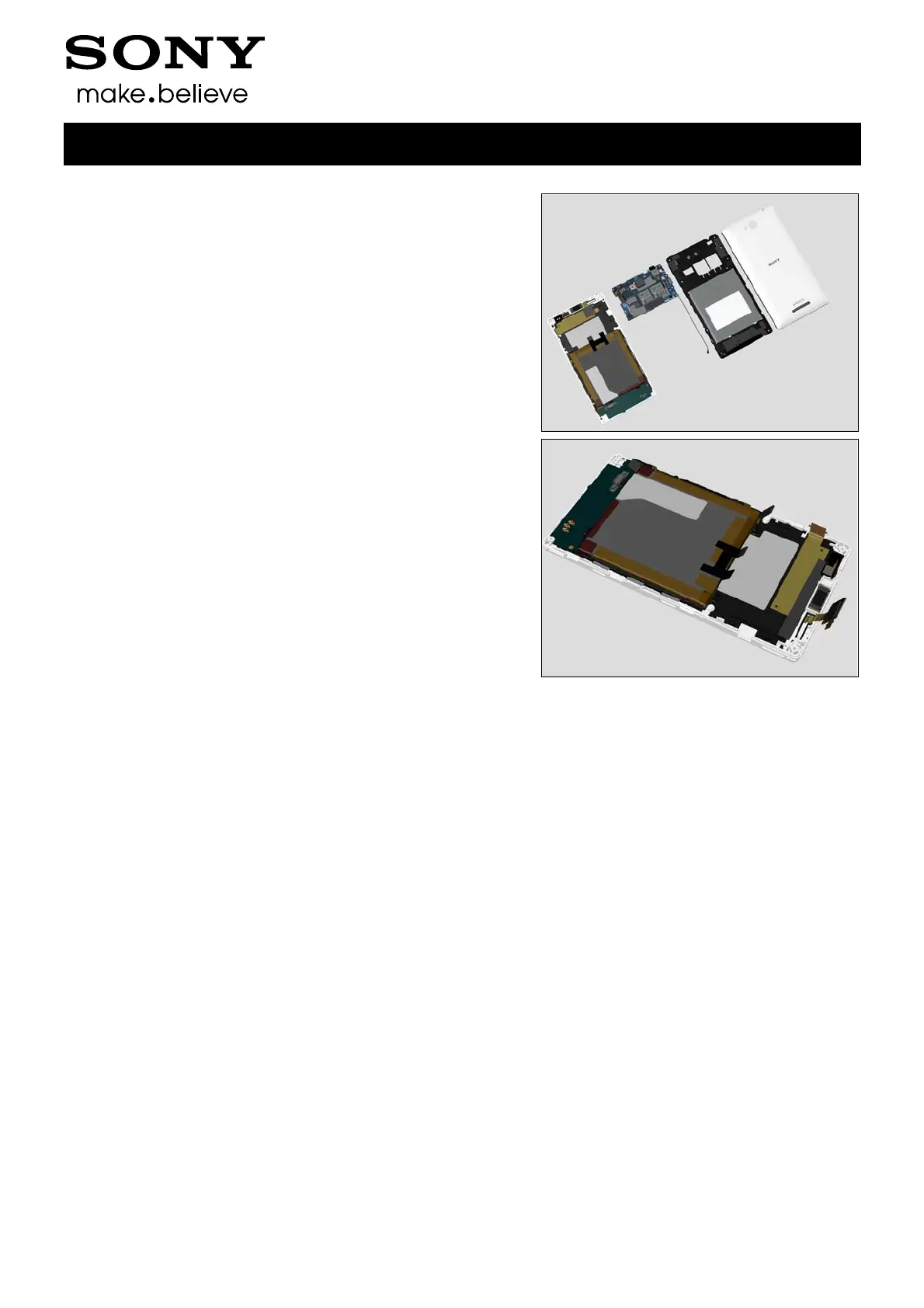

Prepare the Front Cover LCM TP Assy.
4
3
2a
1
2b
