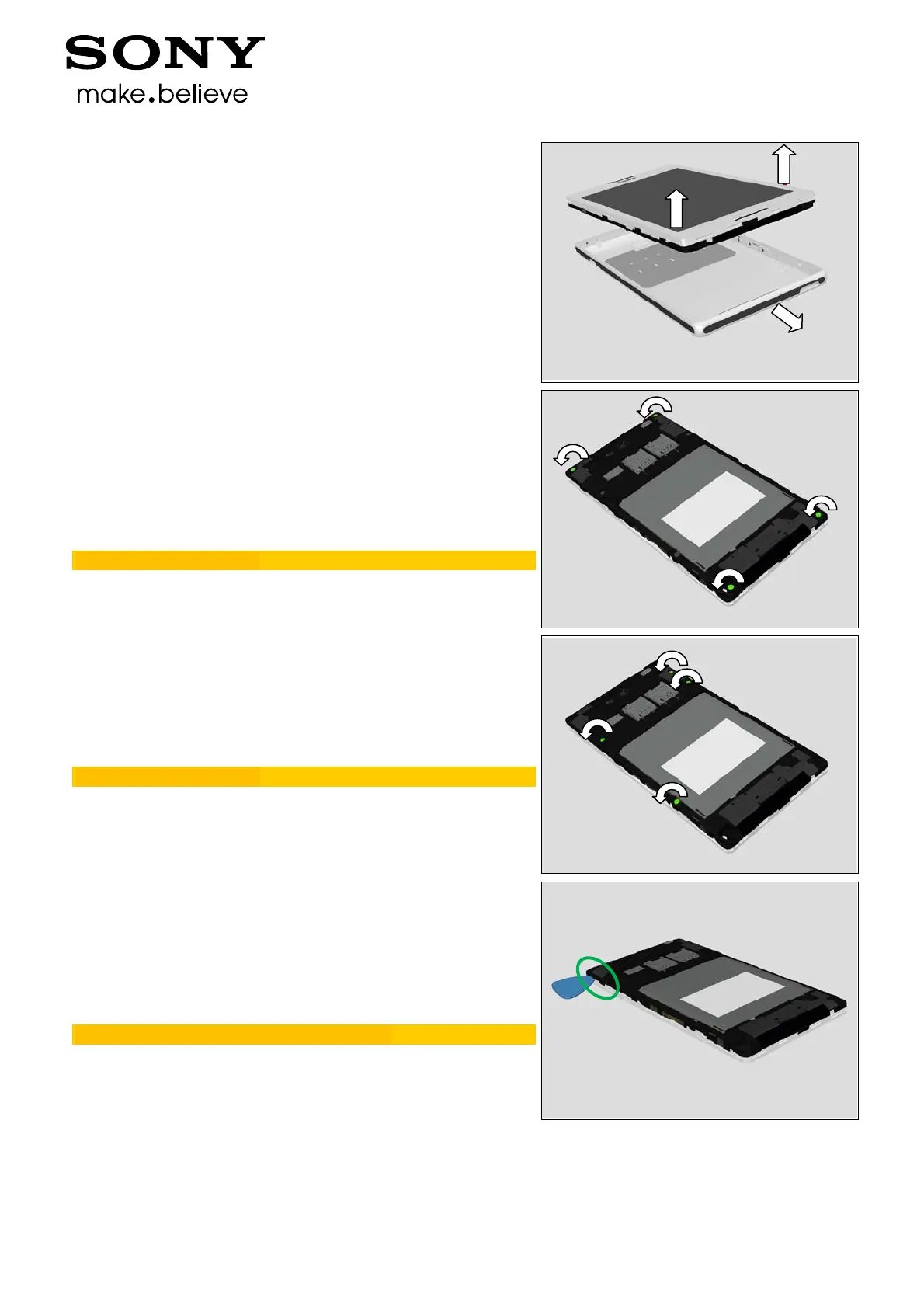

Remove the Battery Cover Assy.
3.2 Rear Cover Assy
Remove these four Screws(Screw TORX 1.6mm 4.5mm
Black) by using a screwdriver with Bits (T5).
Scrap! Not to be reused!
Remove these four Screws(Screw TORX 1.6mm 2.8mm
Black) by using a screwdriver with Bits (T5).
Scrap! Not to be reused!
Insert Guitar Pick as shown in picture to release this position
hook.
Do not slide Guitar Pick along phone side!
