Reassembly

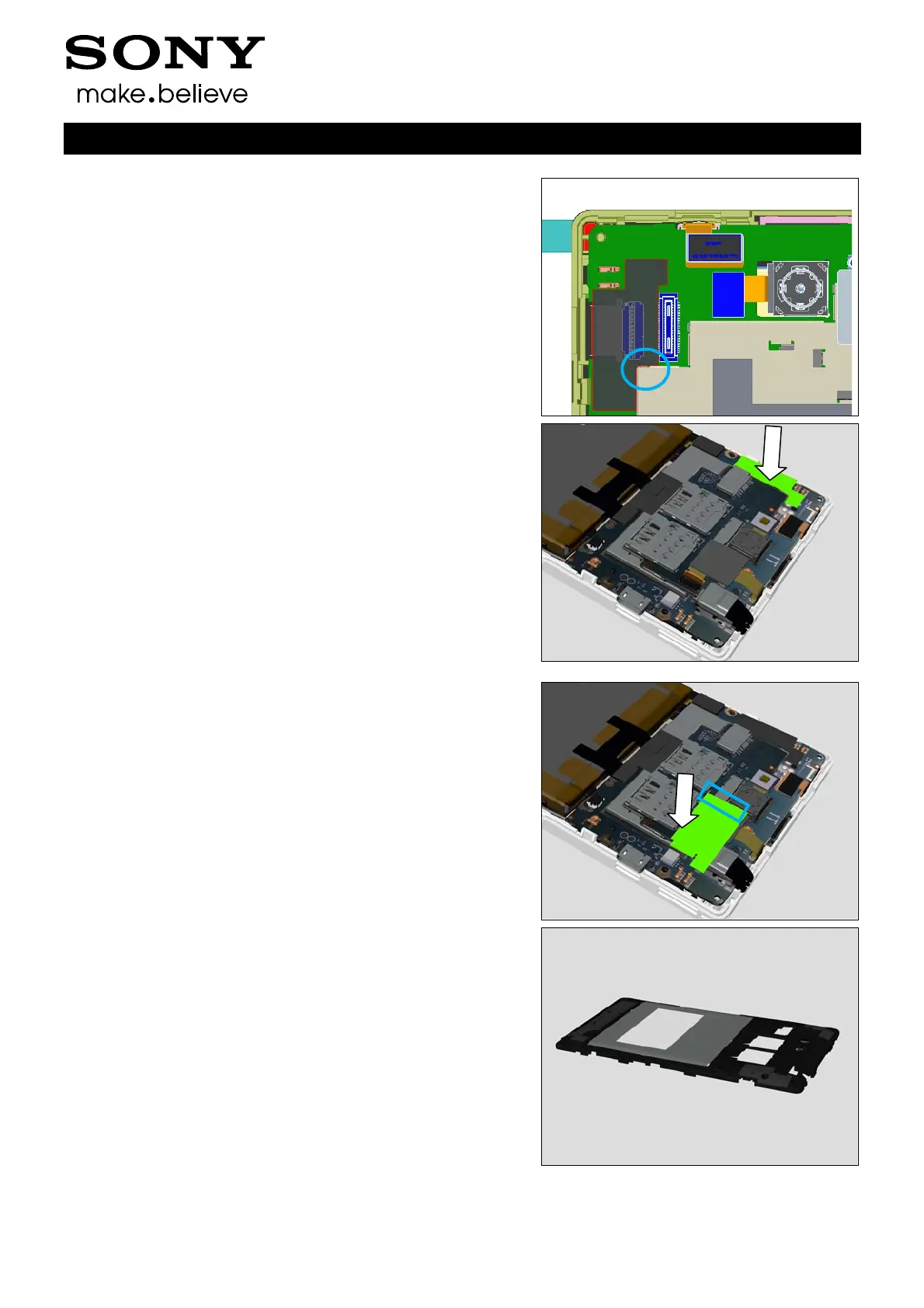

Align LCM ZIF MYLAR to the corner of shielding case
Press LCM ZIF MYLAR to cover LCM ZIF connector.
Assembly TP FPC MYLAR on Main PBA to cover TP
Connector.
Align TP FPC MYLAR as shown in picture.
5.3 Rear Cover Assy
Prepare the Rear Cover Assy.
