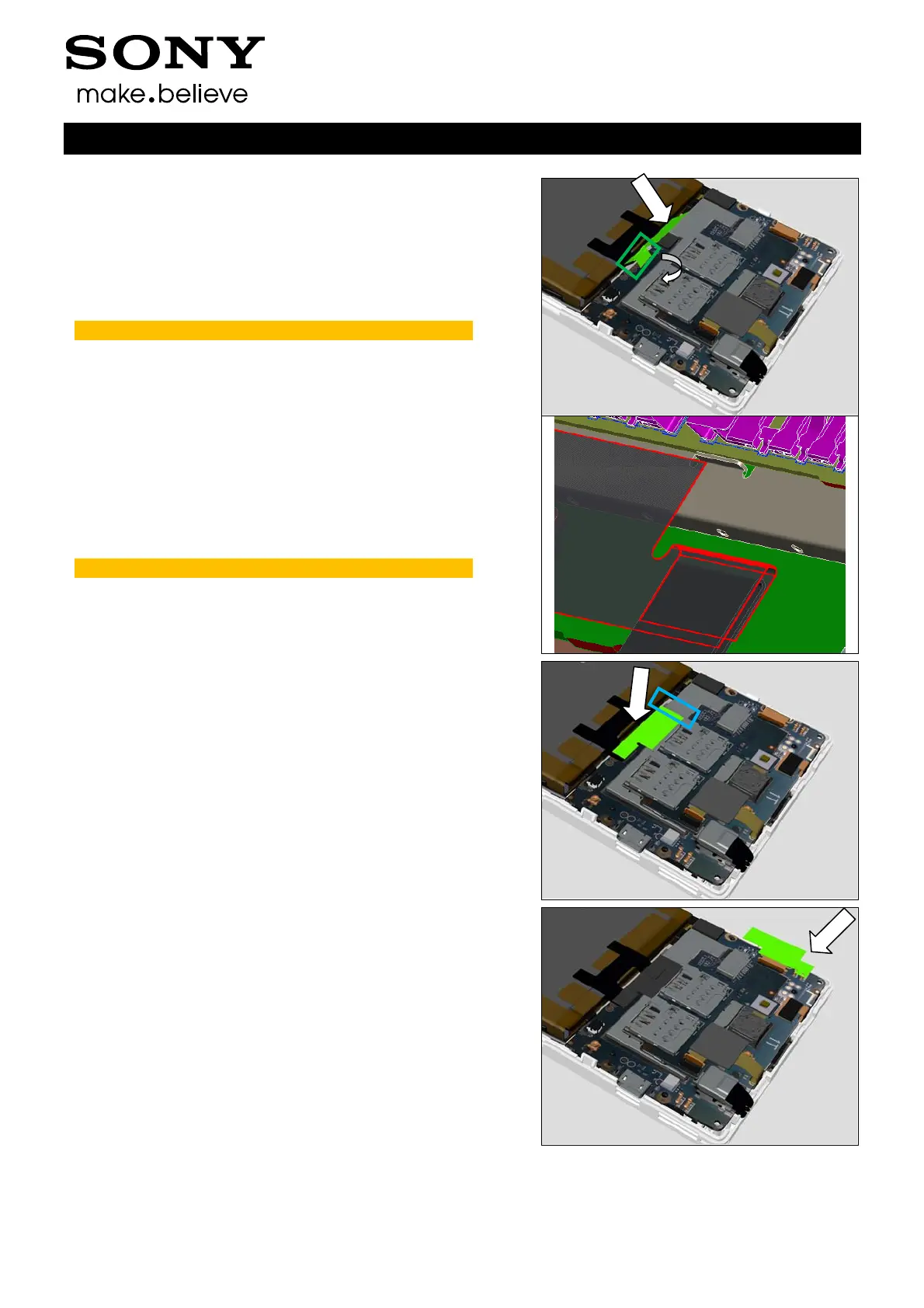

Reassembly
Assemble Battery FPC Mylar and fold shown area to cover
Battery FPC.
Note: the Battery FPC Mylar is folded at shown area.
The Battery FPC Mylar need to be folded to the back of
battery FPC.
Note: the Battery FPC Mylar is folded at shown area.
Align Battery FPC Mylar with the mark on shielding as
shown.
Press Battery FPC Mylar on Main PBA to cover Battery
Connector.
Insert LCM ZIF MYLAR under SIM PBA Assy.
To Next Page
