Sony C2305 - Main PBA (A) & Coaxial Cable (B)

Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
13(50)
Disassembly
3.3 Main PBA (a) & Coaxial
Cable (b)

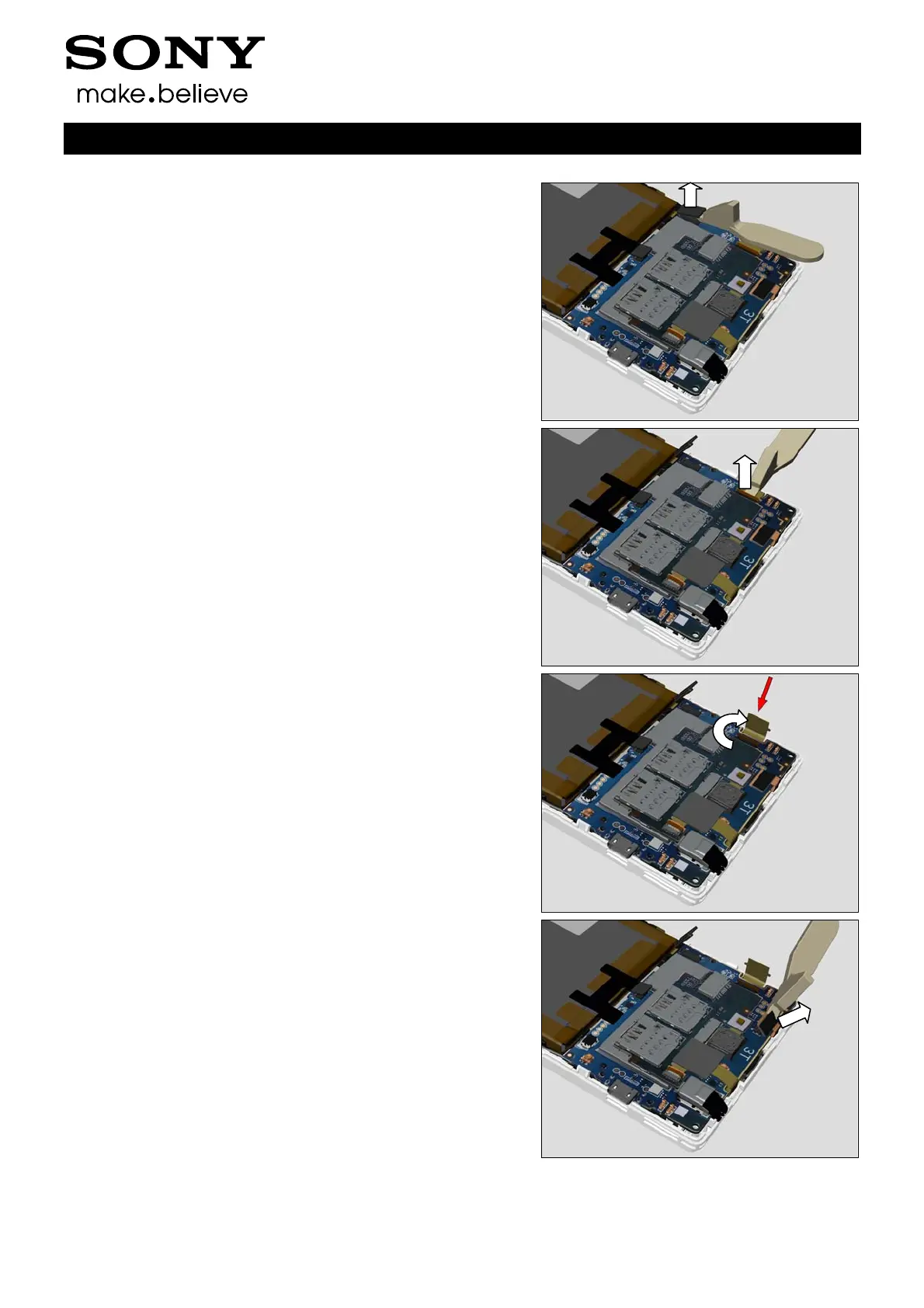

Open the Link FPC connector on Main PBA.
Open the LCM ZIF connector.
Pull out the LCM FPC from its ZIF connector.
Open the Front Camera BtB connector.
