Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
23(50)
Replacement

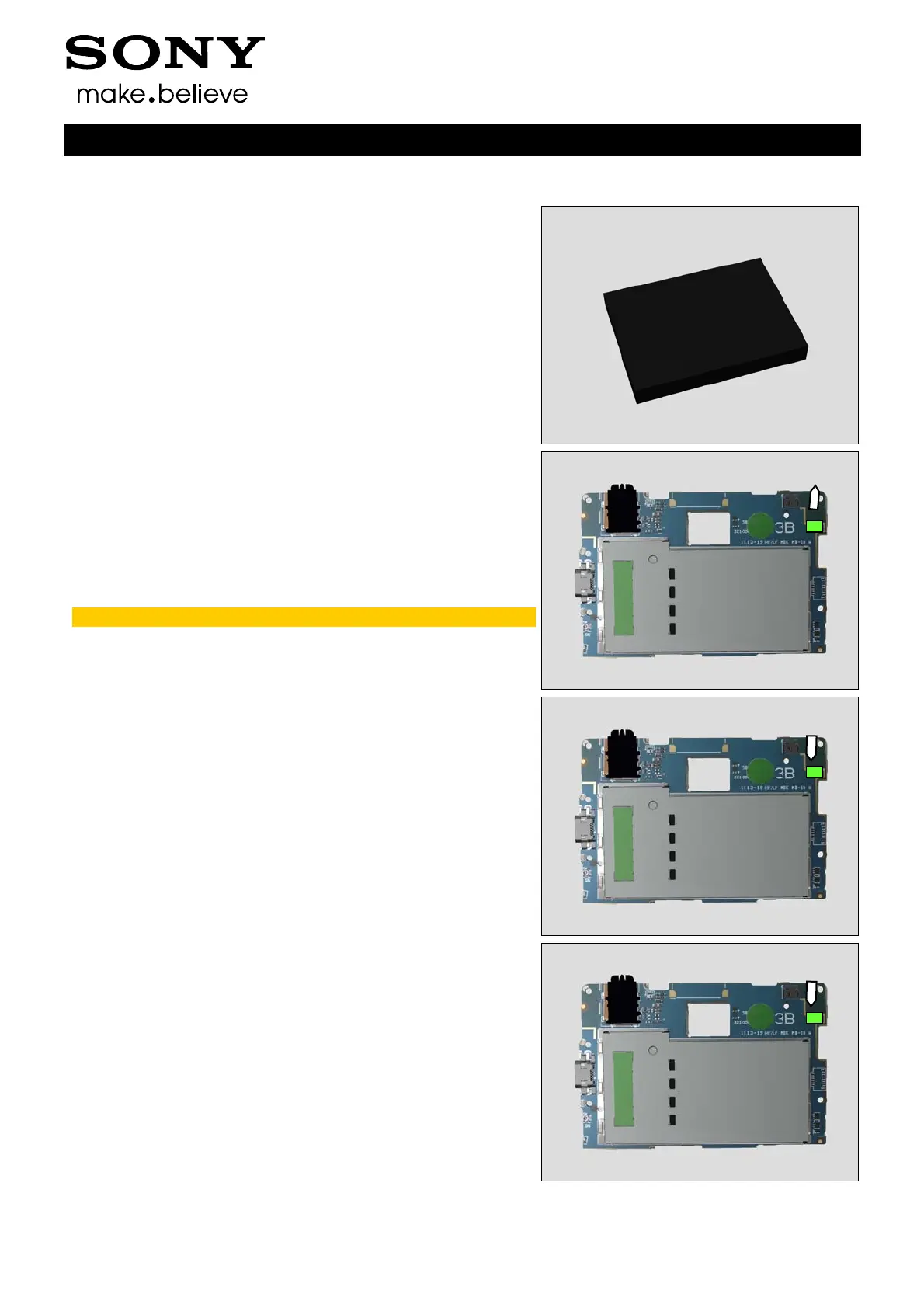

4.13 Conductive WIFI Grounding Gasket
Follow the 3.1 – 3.4 Disassembly instructions!
Carry out the Removal as described below.
Prepare a new
Conductive WIFI Grounding Gasket.
Carry out the Installation as described below.
Follow the 5.1 – 5.4 Reassembly instructions!
REMOVAL
Peel off the Conductive WIFI Grounding Gasket from Main
PBA.
Scrap! Not to be reused!
INSTALLATION
Place a new Conductive WIFI Grounding Gasket in the
correct position as shown in the picture.
Press to secure its attachment.
To Next Page
