Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
31(50)
Replacement

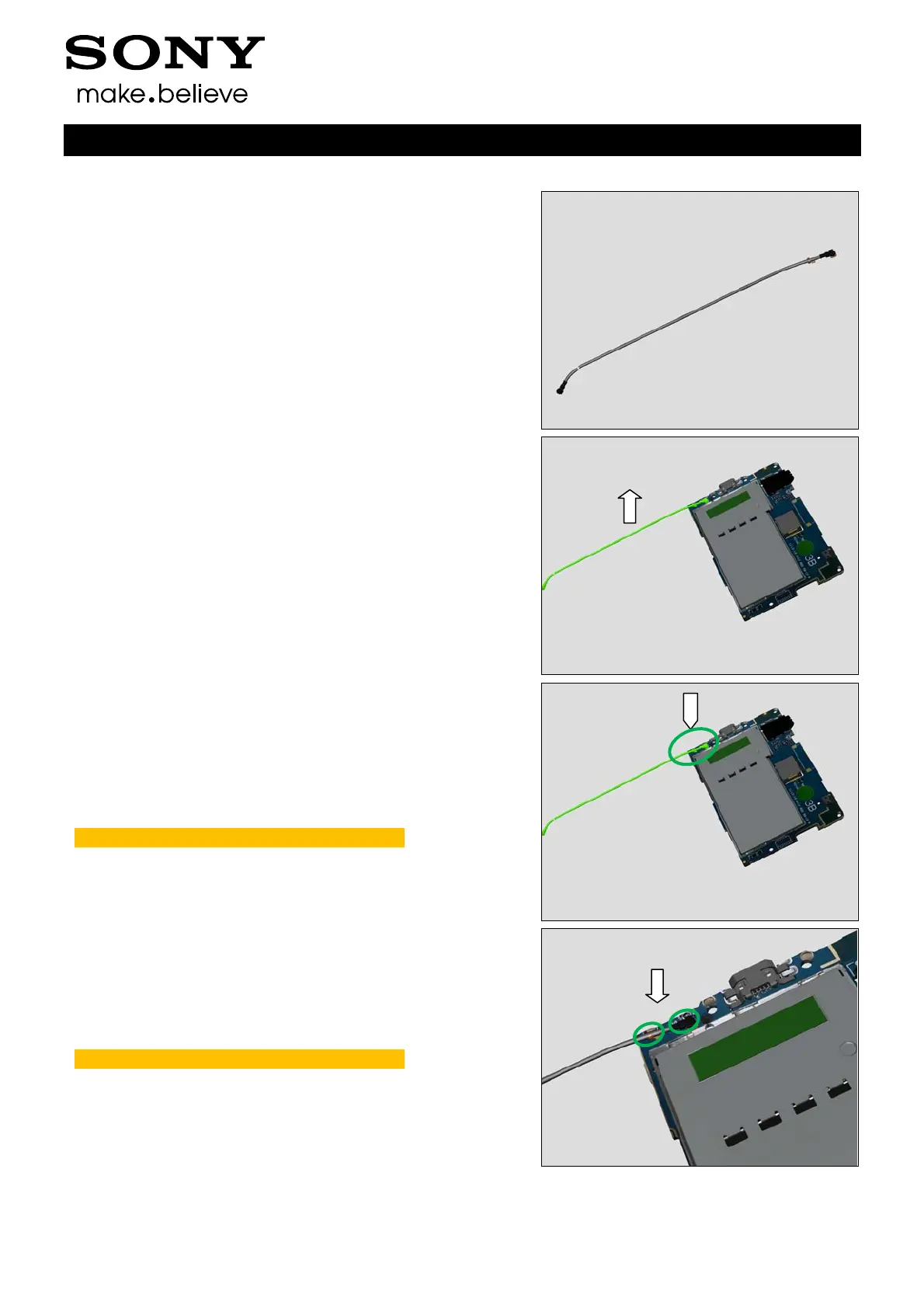

4.18 Coaxial Cable
Follow the 3.1 – 3.4 Disassembly instructions!
Prepare a new Coaxial Cable.
Follow the 5.1 – 5.4 Reassembly instructions!
REMOVAL
Remove the Coaxial Cable from Main PBA.
INSTALLATION
Place the Coaxial Cable in the correct position.
Note: pay more attention about its direction.
Press to secure its position.
Note: pay more attention about its direction.
