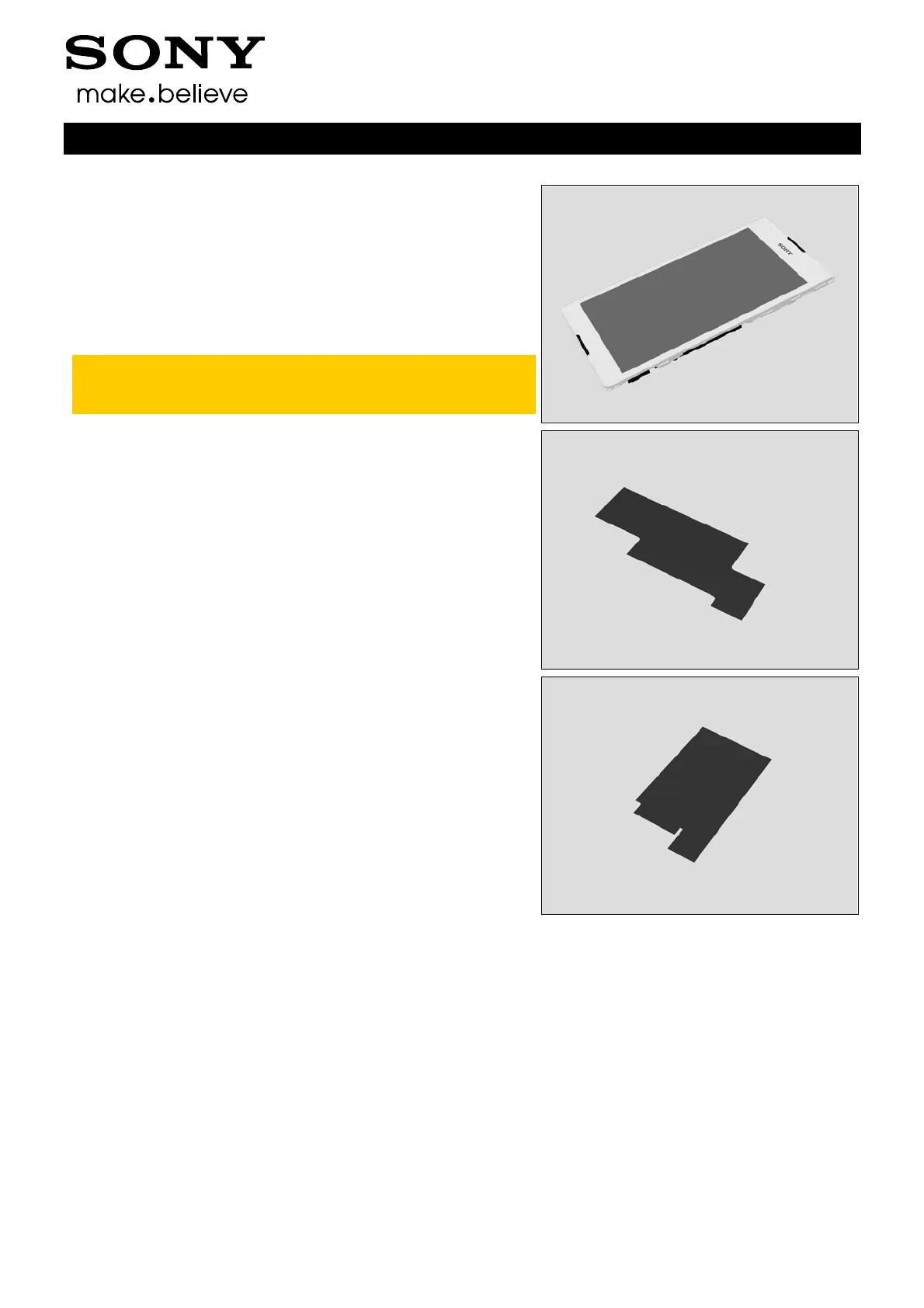

Sony C2305 - Front Cover LCM TP Assy; Lcm Zif Mylar; Tp Fpc Mylar

Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
17(50)
Replacement
4.5 Front Cover LCM TP Assy
Follow the 3.1 – 3.4 Disassembly instructions!
Follow 4.6, 4.17, 4.14 Removal instructions.
Prepare a new Front Cover LCM TP Assembly.
Follow 4.6, 4.17, 4.14 Installation instructions.
Follow the 5.1 – 5.4 Reassembly instructions!
Note: Calibrate the Proximity sensor/Light sensor 1277-
0611 Trouble Shooting Application – mechanical after
replacement.
4.6 LCM ZIF MYLAR
Follow the 3.1 – 3.2 Disassembly instructions!
Prepare new LCM ZIF MYLAR.
Follow the 5.3 – 5.4 Reassembly instructions!
4.7 TP FPC MYLAR
Follow the 3.1 – 3.2 Disassembly instructions!
Prepare new TP FPC MYLAR.
Follow the 5.3 – 5.4 Reassembly instructions!
