Sony C2305 - Receiver & Receiver Adhesive

Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
29(50)
Replacement

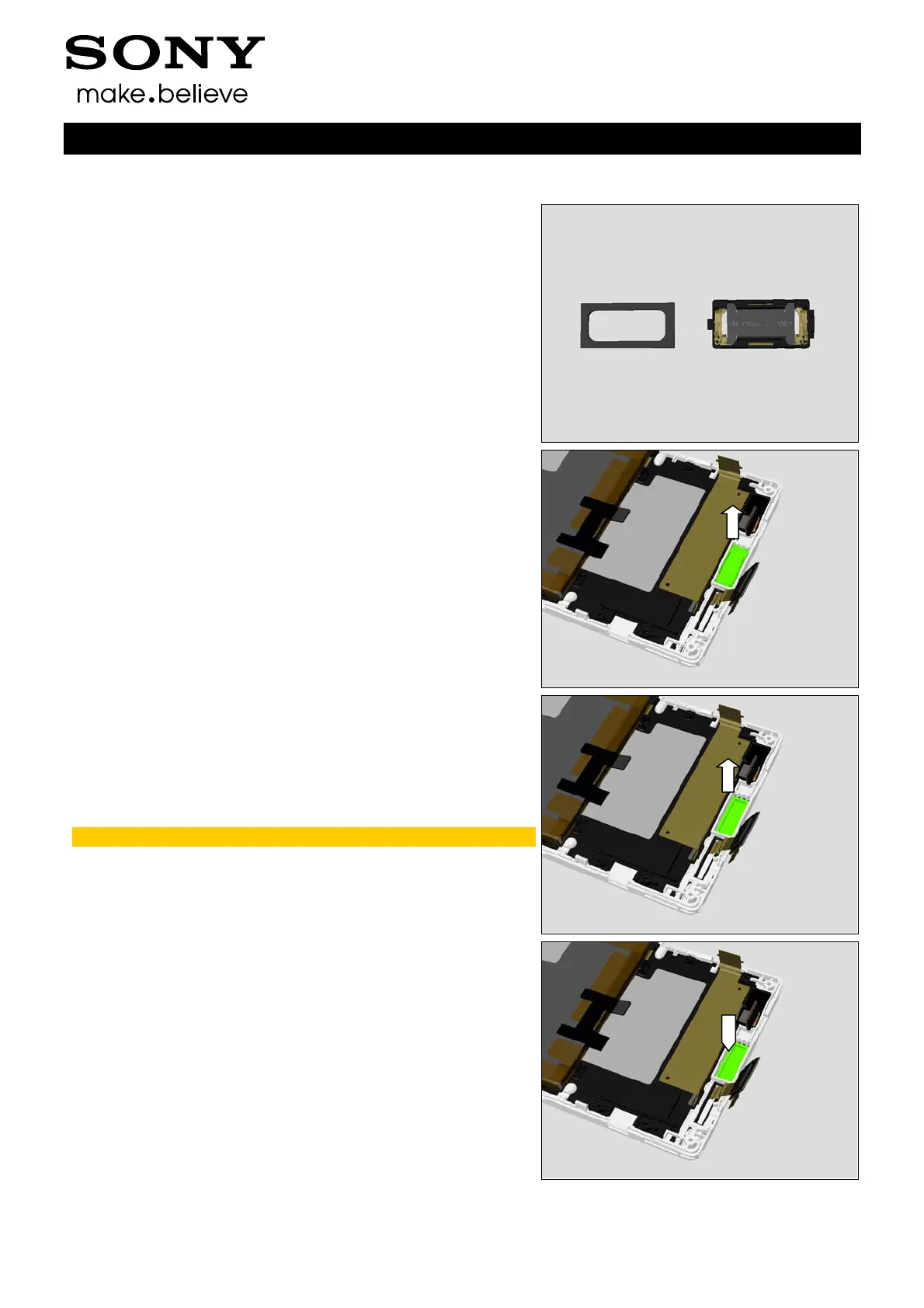

4.17 Receiver & Receiver Adhesive
Follow the 3.1 – 3.4 Disassembly instructions!
Carry out the Removal as described below.
Prepare a new Receiver and Receiver Adhesive.
Carry out the Installation as described below.
Follow the 5.1 – 5.4 Reassembly instructions!
REMOVAL
Detach the Receiver by using a pair of tweezers.
Clean the remaining foil of the Receiver Adhesive on the
Front Cover LCM TP Assembly.
Scrap! The Receiver Adhesive can’t be reused!
INSTALLATION
Place a new Receiver Adhesive in the correct position.
