Sony C2305 - SUB Board Assy & Sub PBA Adhesive

Working Instruction Repair Instruction Mechanical/
1275-8436 Rev2
© Sony Mobile Communications AB – Company Internal
32(50)
Replacement
4.19 SUB Board Assy & Sub PBA Adhesive
Follow the 3.1 – 3.2 Disassembly instructions!
Carry out the Removal as described below.
Prepare new SUB Board Assy & Sub PBA Adhesive.
Follow 4.18 Installation instructions.
Carry out the Installation as described below.
Follow the 5.3 – 5.4 Reassembly instructions!

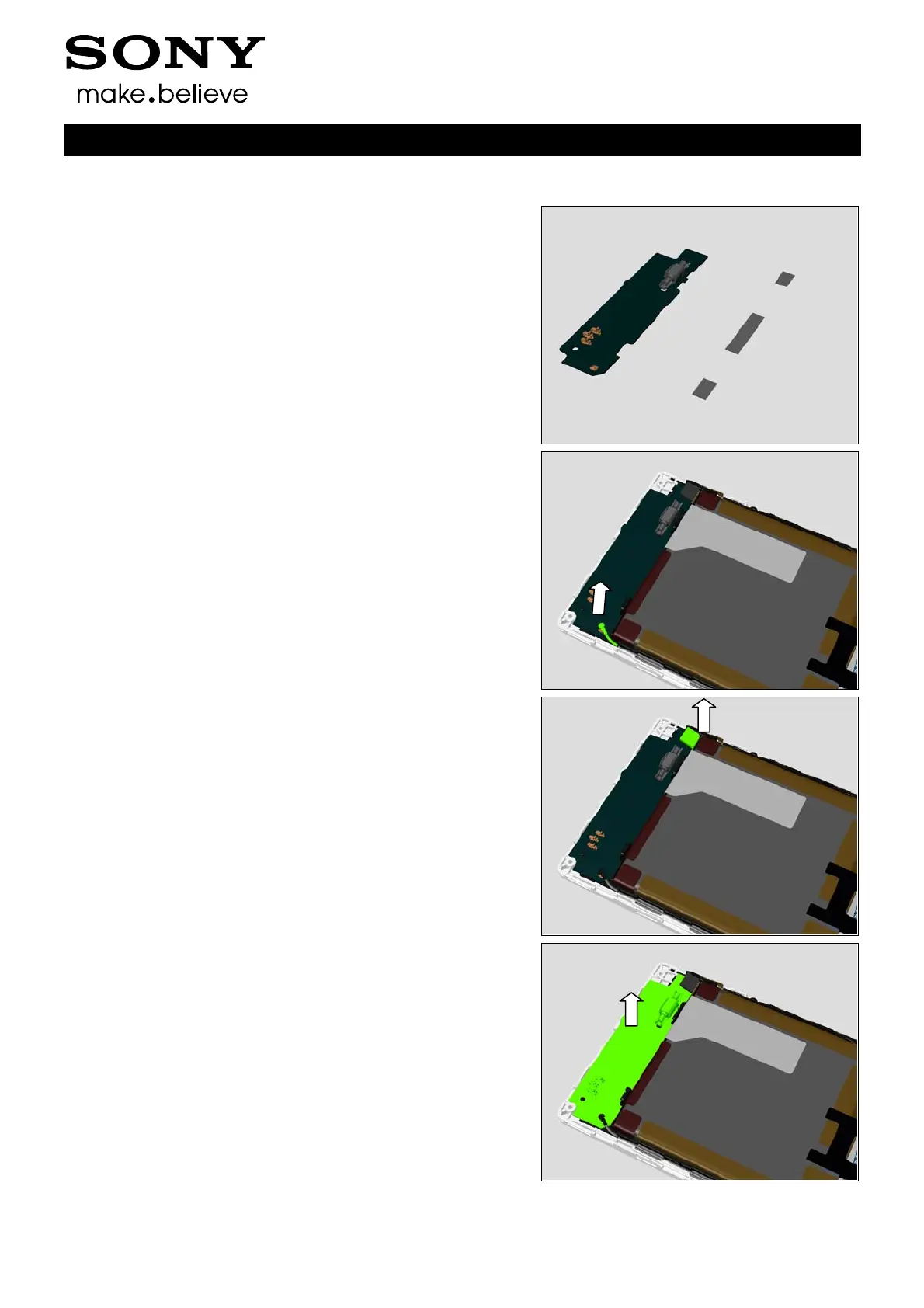

REMOVAL
Open the Coaxial Cable Connector on SUB Board Assy.
Open the Link FPC connector on SUB Board Assy.
Remove the SUB Board Assy carefully.
