CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E
CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E
4-55 4-56
4-57
AV OUT
PJ-90/91

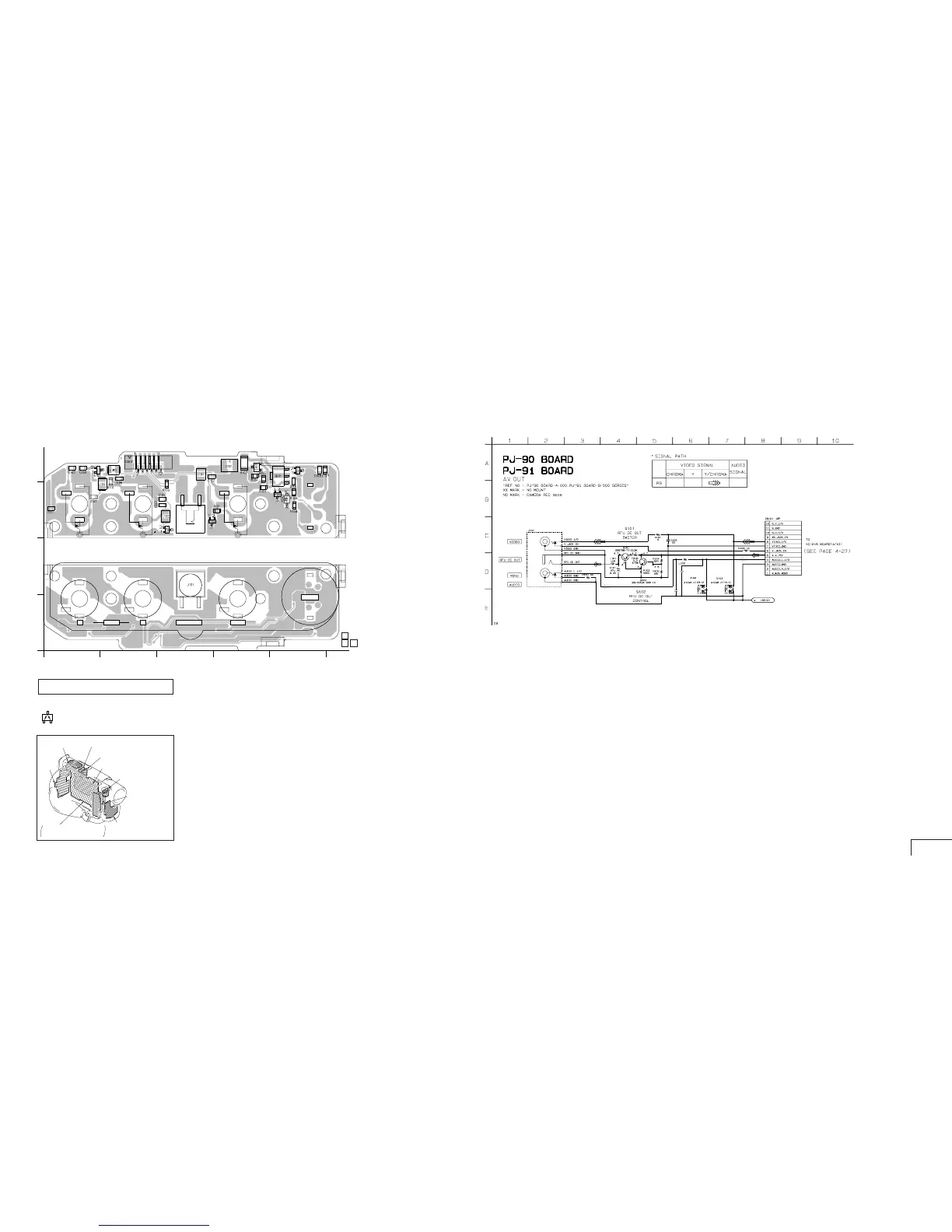

PJ-90/91 (AV OUT) PRINTED WIRING BOARD
– Ref No. PJ-90 BOARD: 4,000 series, PJ-91 BOARD: 9,000 series –
• For Printed Wiring Boards.
• Chip diode
There are few cases that the part isn't mounted in this model is
printed on this diagram.
3
21
AUDIO RFU DC OUT VIDEOLR
S VIDEO
PJ-90/91 BOARD (SIDE B)
PJ-90/91 BOARD (SIDE A)
123456
A
B
C
D
09
1-672-460-
11
1-672-466-
11 21
PJ-90/91 BOARD
C101 D-4
C102 D-3
C103 C-3
C104 C-3
C105 D-1
C106 D-2
C107 C-1
C108 D-1
C109 D-5
C110 C-5
C111 C-1
CN101 D-2
D101 D-1
D102 C-3
D103 C-3
D104 C-5
D105 C-5
D106 D-5
J101 B-3
L101 D-3
L102 C-3
L103 D-2
L104 C-2
Q101 D-5
Q102 D-4
R101 C-4
R102 D-4
R103 C-4
R104 D-4
R105 D-4
R106 C-5
R107 D-5
R108 C-5
R109 C-3
R110 C-2
VF-119... Color EVF models only
(Color EVF)
DD-117
(Power)
VL-21...
TR515E/TR516E/TR713
E
VL-22... TRV36E/TRV46E
(Video light)
VF-120...
Color EVF models only
(Color EVF)
MA-345...
TR series
MA-346... TRV series
(Mic, Laser link)
PJ-90...
TR series
PJ-91... TRV series
(AV Out)
VC-215
Camera, Y/C processor, IN/OUT,
REC.PB head amp, Servo/System control,
Servo, Audio, IR transmitter, Mode control
CF-60... TR series only
(Control)
LB-54...
Color EVF models only
(Back light)
C104
0.001u
B
C103
0.001u
B
100uH
(TR SERIES)
TR SERIES:CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E
TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E
(TRV SERIES)
