Peripheral equipment configuration
Peripheral Equipment Configuration

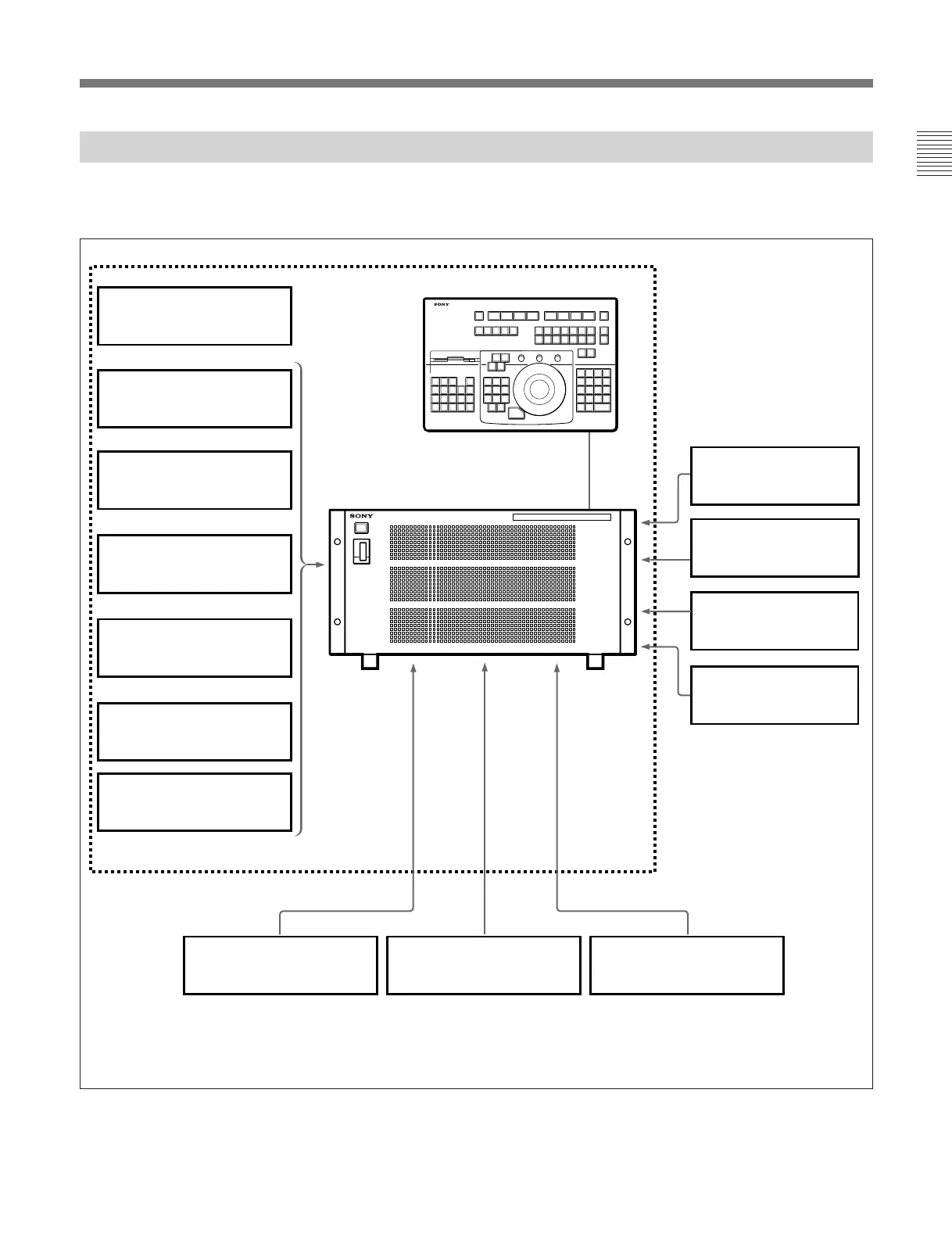

The configuration of peripheral equipment around the
DME-3000/7000 is as follows. The dotted lines
enclose components needed for the minimum system
configuration.
BZDM-3020/7020
a)
Operation
Software with Manual
BKDM-3010 DME Control Panel
DME-3000/7000 Digital Multi Effects
BKDM-3020 Composite Digital
Input/Output Board
or
BKDM-3021Component Digital
Input/Output Board
or
BKDM-3022 Composite Digital/
Analog Input/Output Board
or
BKDM-3023 Component Digital/
Analog Input/Output Board
BKDM-3030 Non-Linear
Effects Board
BKDM-3040 Wipe/
Graphics Board
BKDM-7031 Digital
Sparkle Effects Board
BKDM-3050 Combiner/
Lighting Board
BKDM-7070
b)
Advanced
Shadow Effects Board
BKDM-3060/7060
Key Channel/Recursive
Effects Board
a) Use the BZDM-3020 software with the DME-3000, and the BZDM-7020 software
with the DME-7000.
b) Can be used only with the DME-7000. Cannot be used together with the BKDM-3060.
or
BKDM-7020 Digital Input/
Output Board
BKDM-7041 Digital Sketch
Effects Board
BKDM-7021 Digital Color
Effect Board
To Next Page
