Sony DME-3000 - System Configuration; Control Panel and I;O Connections

12(E)

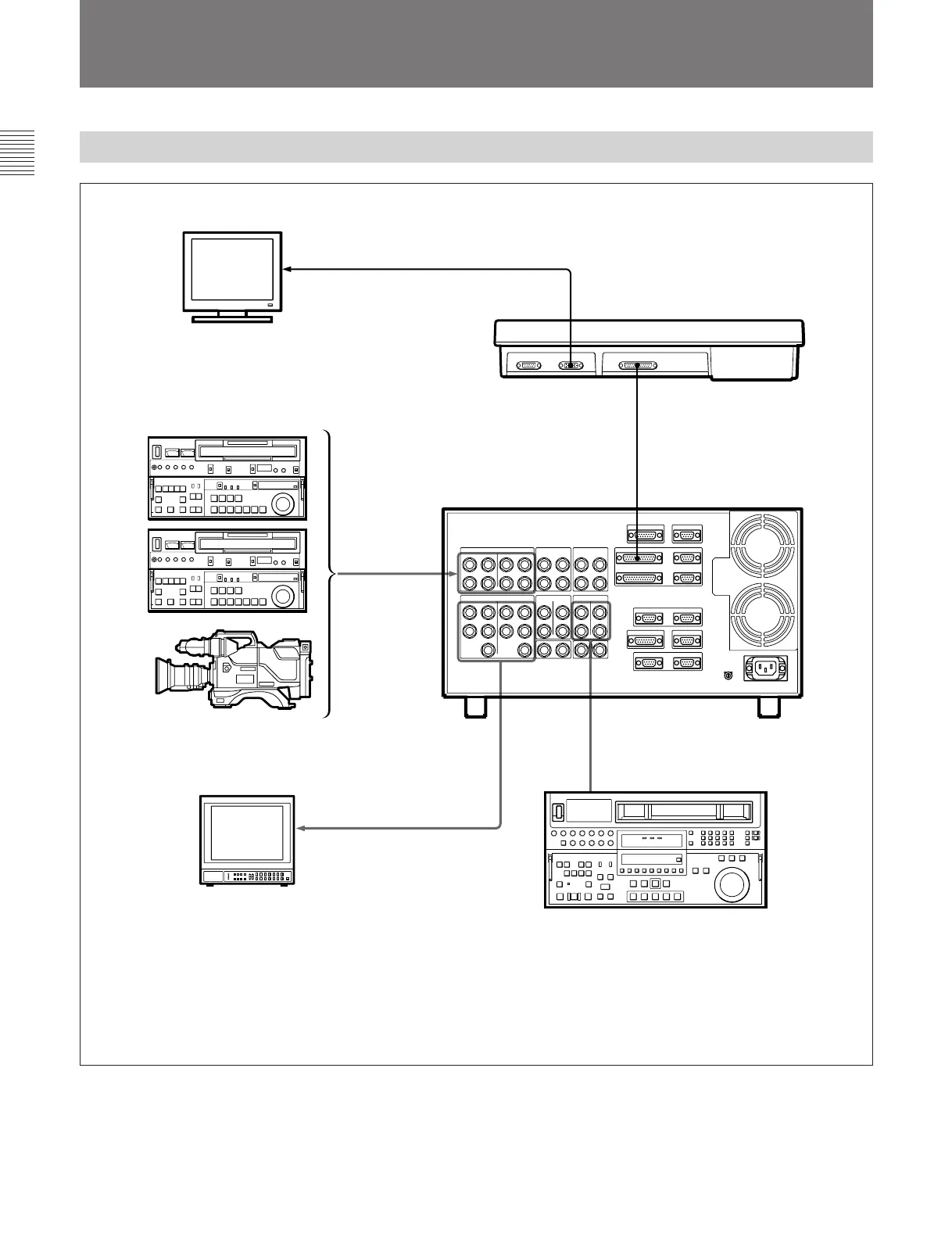

System Configuration
Control Panel and I/O Connections
Control panel and I/O connections
Menu monitor
(CPD-15SF8)
BKDM-3010 DME Control Panel
VTR, Camera, etc.
DME-3000/7000
Main monitor
Digital VTR with serial output
(DVW-A500/500/A500P/500P, etc.)
15-pin remote cable
MONITOR
25-pin remote cable
ROCESSOR
CONTROL PANEL
75-ohm coaxial
cable
75-ohm coaxial cable
ANALOG
OUTPUTS
b)
75-ohm coaxial cable
a) Use the Y, R–Y, B–Y and KEY connectors for component signal input.
Use the VIDEO and KEY connectors for composite input.
b) Use either the Y, R–Y, B–Y connectors or the R, G, B, SYNC connectors for
component video signal output.
c) These connectors are provided only on the DME-7000.
ANALOG
INPUTS
a)
DIGITAL INPUTS
c) c)
