11(E)
BKDM-3010 DME Control Panel (Rear Panel)

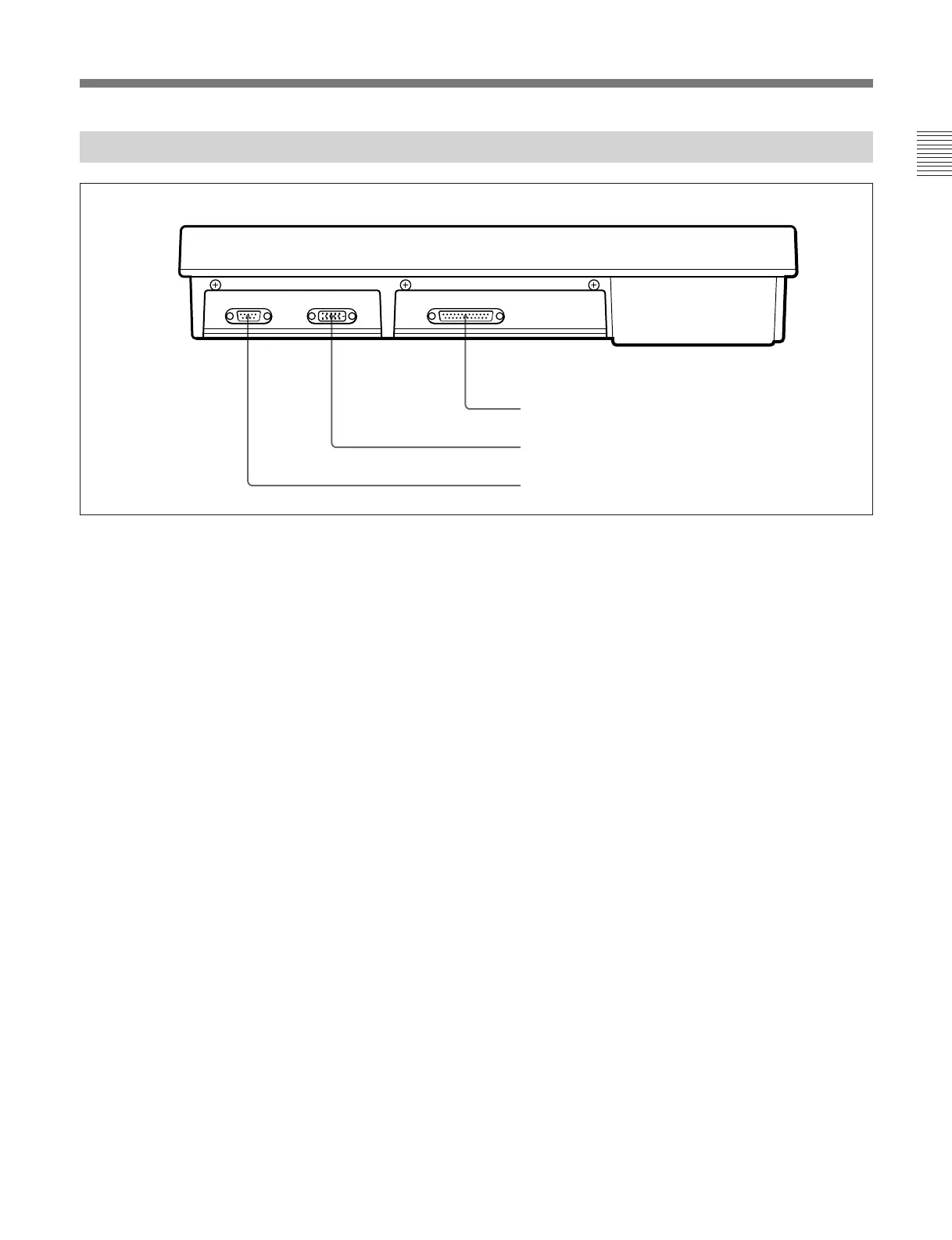

BKDM-3010 control panel (rear panel)
1 PROCESSOR connector (D-sub 25-pin)
Connect to the DME-3000/7000. Reference video
signals, +12 V power and RS-422A signals are
supplied by the DME-3000/7000 through this
connector.
2 MONITOR connector (D-sub 15-pin, high
density)
Connect a CPD-15SF8 or other VGA
1)
graphics
monitor.
3 RS-232C connector (D-sub 9-pin)
A Microsoft™ Mouse
2)
can be connected.
You can also use this connector as serial port for the
ISR (interactive status reporting) system.
1 PROCESSOR connector
2 MONITOR connector
3 RS-232C connector
1) VGA is a registered trademark of International Business
Machines Corporation.
2) Microsoft is a registered trademark of Microsoft
Corporation.
..........................................................................................................................................................................................................
