Sony DME-3000 - BVE-2000 Editing Control System Connections; DVS-V1201 Digital Video Routing Switcher Connections

17(E)

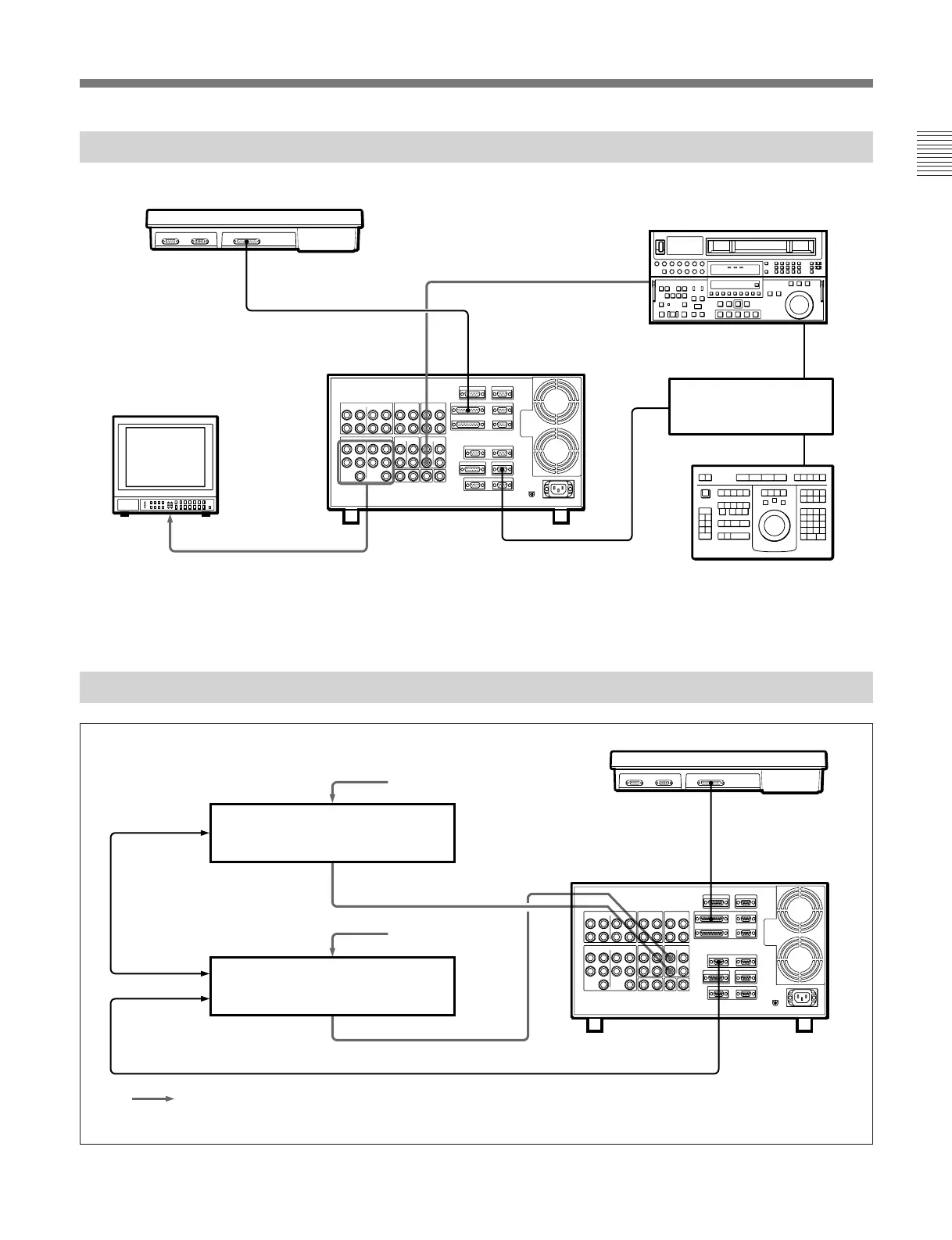

BVE-2000 Editing Control System Connections
BVE-2000 Editing Control System connections
DVS-V1201 Digital Video Routing Switcher Connections
DVS-V1201 Digital Video Routing Switcher connections
Digital VTR with serial output
(DVW-A500/500, etc.)
BVE-2000
Editing Control Unit
Main monitor
25-pin remote cable
PROCESSOR
CONTROL PANEL
75-ohm coaxial cable
DIGITAL
INPUTS
75-ohm coaxial cable
ANALOG OUTPUTS
9-pin remote cable
DME-3000/7000
a) These connectors are provided only on the DME-7000.
a)
a)
BKDM-3010 DME Control Panel
DME-3000/7000
DVS-V1201
a)
DVS-V1201
a)
25-pin remote cable
PROCESSOR
CONTROL PANEL
9-pin remote cable
AUX
REMOTE 1
9-pin remote cable
REMOTE 1
Serial digital input
Serial digital input
: 75-ohm coaxial cable
b)
b)
DIGITAL INPUTS A (KEY)
DIGITAL INPUTS A (VIDEO)
a) DVS-V1201 can also be connected to DME-3000/7000 DIGITAL INPUTS B
connectors.
b) These connectors are provided only on the DME-7000.
BKDM-3010 DME Control Panel
