Specifications
DXC-D50/D50P/D50WS/D50WSP Camera
Head
Imaging element Three-chip interline transfer CCD
Pixel resolution 980 (horizontal) × 504 (vertical)
Imaging area DXC-D50/D50P: 8.8 × 6.6 mm
(
2
/3-inch, 4:3 optical system)
DXC-D50WS/D50WSP:
9.6 × 5.4 mm (
2
/3-inch, 16:9
optical system)
Built-in filter settings
1: CLEAR
2:
1
/4ND
3:
1
/16ND
4:
1
/64ND
Lens mount Bayonet mount
Signal standards EIA standard signal (NTSC color
system) (DXC-D50/D50WS)
CCIR standard signal (PAL color
system) (DXC-D50P/D50WSP)
Scanning system 525 lines, 2:1 interlace
(DXC-D50/D50WS)
625 lines, 2:1 interlace
(DXC-D50P/D50WSP)
Scanning frequencies
Horizontal:
15.734 kHz (DXC-D50/D50WS)
15.625 kHz (DXC-D50P/
D50WSP)
Vertical: 59.94 Hz (DXC-D50/
D50WS)
50.00 Hz (DXC-D50P/D50WSP)
Synchronization Internal sync
External sync, using signal input
(VBS or BS) to the GEN LOCK
IN connector of an optional
camera adaptor or input from the
GEN LOCK connector of a
camera control unit to the CCU/
VTR/CMA connector of an
optional camera adaptor.
Horizontal resolution (center)
DXC-D50/D50P: 920 TV lines
DXC-D50WS/D50WSP: 850 TV
lines (4:3 mode), 800 TV lines
(16:9 mode)
Minimum illumination
0.5 lux (at f/1.4, +36 dB)
0.8 lux (at f/1.8, +36 dB)
Sensitivity 2000 lux (f/11.0 standard, 3200 K)
Gain levels Selectable –3 dB, 0 dB, 3 dB, 6 dB,
9 dB, 12 dB, 18 dB, 24 dB,
30 dB, 36 dB
Video output Composite signal
1.0 Vp-p, sync negative, 75-ohm,
unbalanced
Y/C separate signals
Y: 1.0 Vp-p, sync negative,
unbalanced
C: burst level 0.286 Vp-p (DXC-
D50/D50WS) or 0.3 Vp-p
(DXC-D50P/D50WSP),
no sync
Video S/N ratio 65 dB (typical) (DXC-D50/
D50WS)
63 dB (typical) (DXC-D50P/
D50WSP)
Registration 0.05% for all zones, without lens
Input/output connectors
VIDEO OUT connector: BNC,
75-ohm, unbalanced
LENS connector: 12-pin, for
2
/3-inch lens
VF connector (front): 20-pin
REMOTE connector: 10-pin
MONITOR OUT connector: BNC,
75-ohm, unbalanced
Power supply 12 V DC
Power consumption
14 W
Operating temperature
–10 °C to +45 °C (14 °F to 113 °F)
Storage temperature
–20 °C to +60 °C (–4 °F to
+140 °F)
Mass Approx. 2.2 kg (4 lb 14 oz)(camera
head)

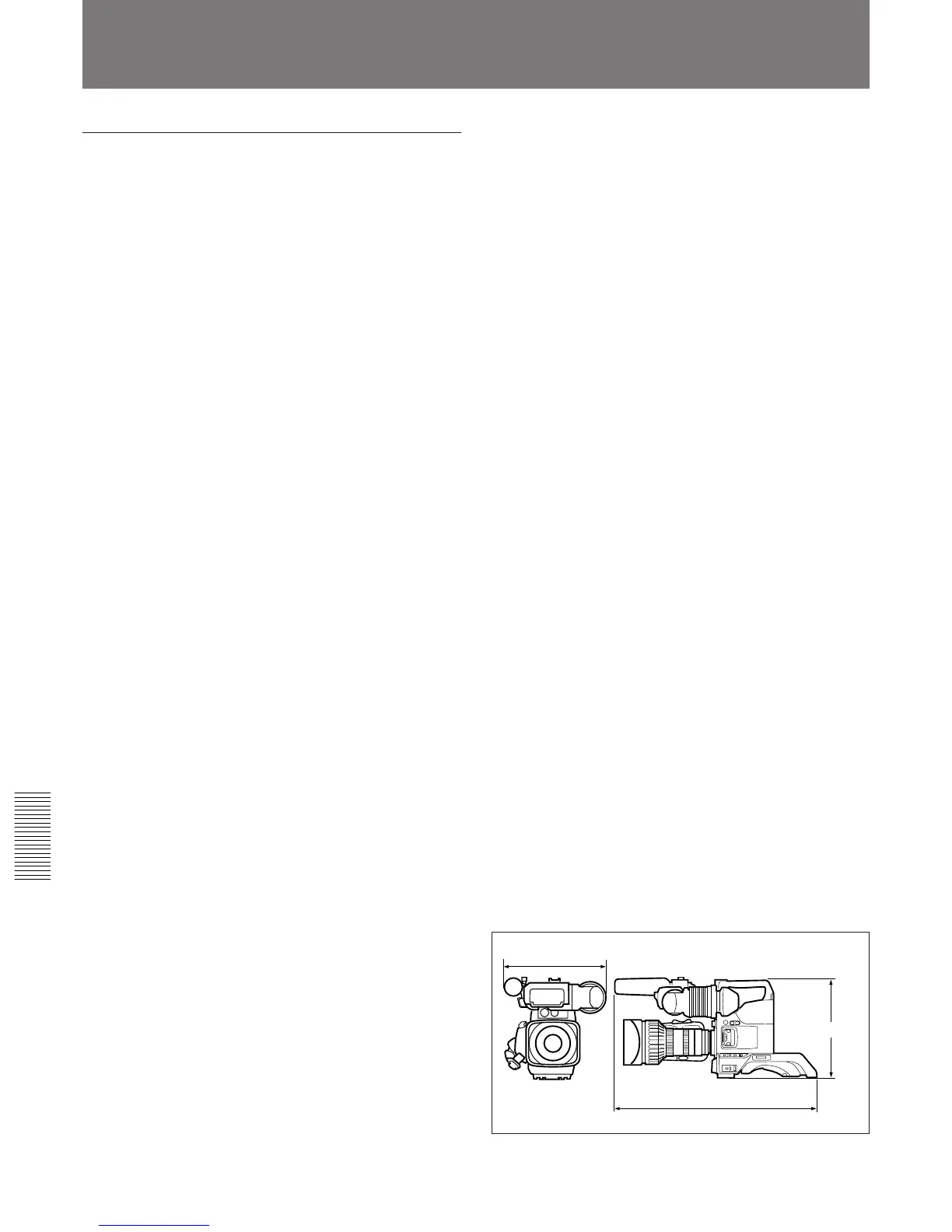

External dimensions in millimeters (inches)
