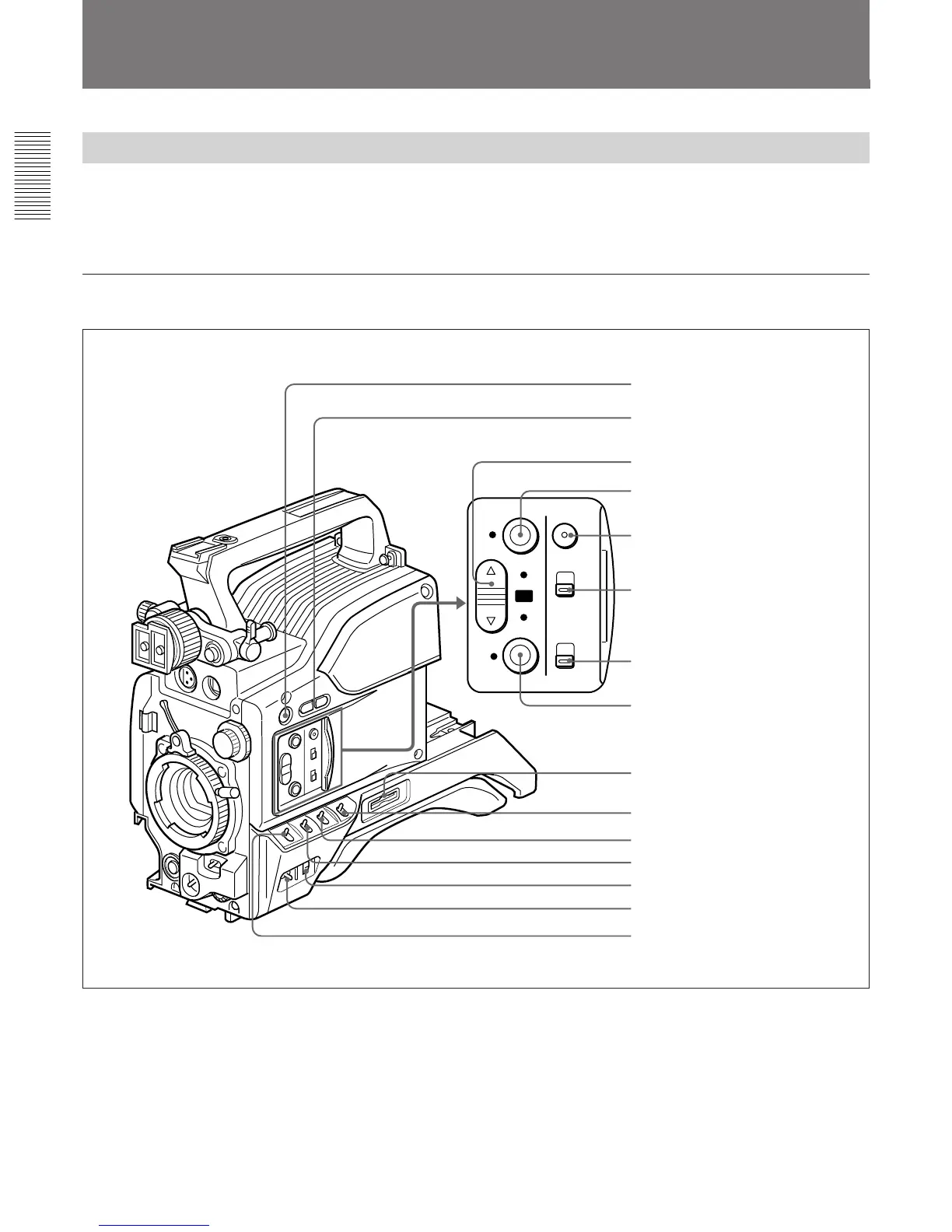

Right side view
Location and Function of Parts
Camera Head
Before attaching/detaching peripheral equipment to/
from the camera head, be sure to turn off the camera.
Otherwise, the camera may not function properly.
EZ
MODE
EZ
FOCUS
ZEBRA
ON
OFF
LOWCUT
MIC
ATW
STD
SPOT
L.
BACK
L.
ON
OFF
qg GAIN switch
1 5600K button
2 EDIT SEARCH buttons
3 A.IRIS MODE switch and indicator
4 EZ MODE button and indicator
5 EZ FOCUS button
6 ZEBRA switch
7 MIC LOW CUT switch
8 ATW button and indicator
9 Memory Stick slot
0 MENU switch
qa W. BAL switch
qs OUTPUT/DCC switch
qd MENU dial
qf POWER switch
