Self-Diagnostics
17
CCU-TX50: Model name and format of the camera
control unit connected.
Genlock: External reference signal and its status
(lock/unlock)
Prompter: Transmission direction of the prompter
line
Return 1 to 3: Return video signal input status

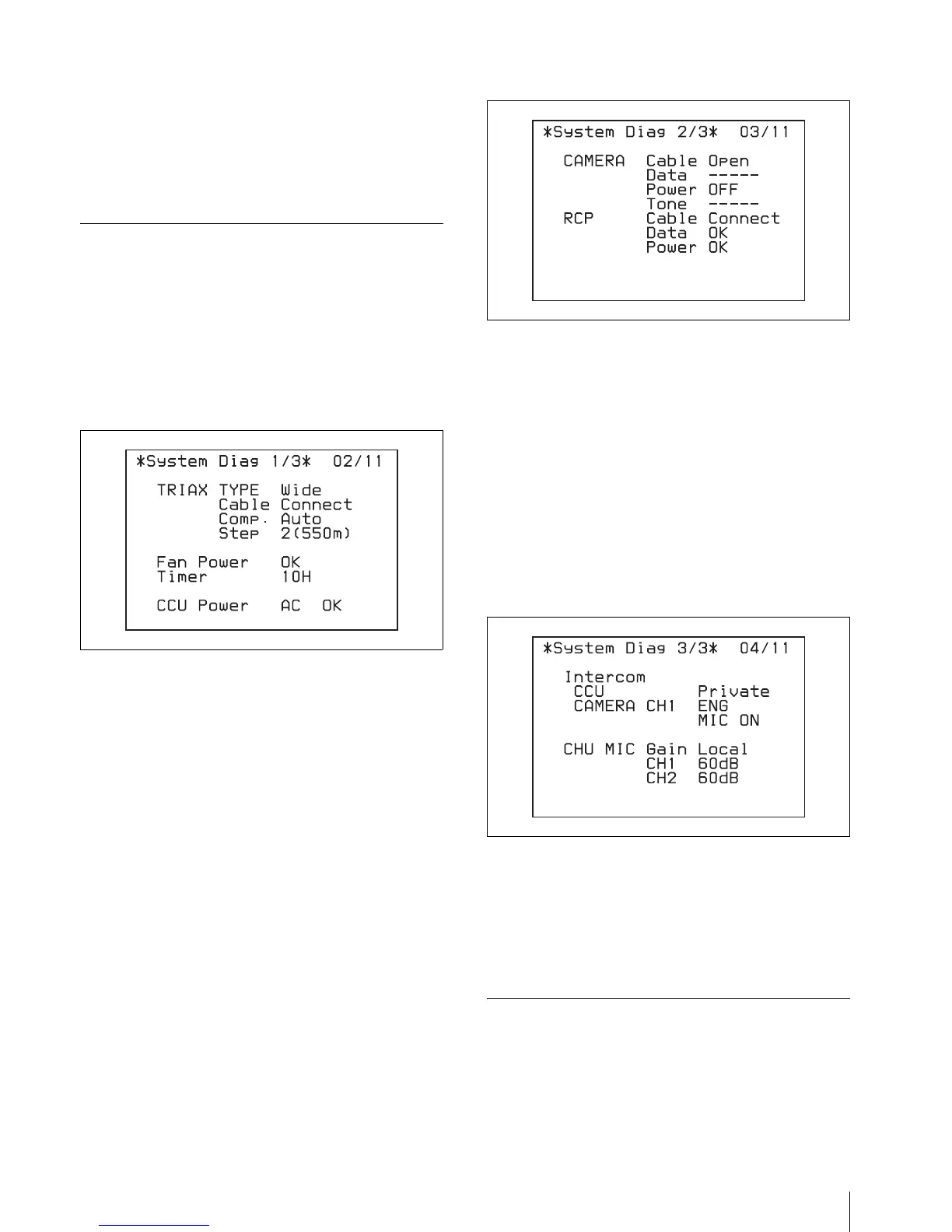

Self-diagnostics of the Camera
System
Press the CHARACTER button when the status display
of the unit is displayed. Page 1 of the self-diagnostics
display is displayed.
The results of a self-diagnosis of the camera system are
displayed spread over three pages.
Page 1
TRIAX TYPE: Type of Triaxial circuit
TRIAX Cable: Triaxial cable connection status
(connected/disconnected)
TRIAX Comp.: Cable compensation type selected
for the triaxial cable (automatic/manual)
TRIAX Step: Compensation step of the triaxial cable
(step indication in the circuit) (The cable length may
not be displayed correctly.)
Fan power: Fan status in the CCU power block
Timer: Power up time to devices connected
CCU Power: Status of the CCU power supply
Page 2
CAMERA cable: Camera cable connection status
(connected/shorted)
CAMERA Data: Camera data transmission status
CAMERA Power: Status of the power supply to a
camera
CAMERA Tone: Camera ID tone status
RCP cable: Connection status of the REMOTE
connector
RCP Data: Data transmission status of the REMOTE
connector
RCP Power: REMOTE connector power supply
status
Page 3
Intercom CCU: CCU intercom selection (system/
private)
Intercom CAMERA CH1: Status of intercom 1 of a
camera (producer line/engineer line)
CHU MIC Gain: Gain and control status of the
microphone circuit
Results of the Self-diagnosis of the
Internal Boards of the Unit
Press the CHARACTER button when page 3 is
displayed. Page 1 of the results of the self-diagnosis of
the internal boards is displayed.
