Self-Diagnostics
18

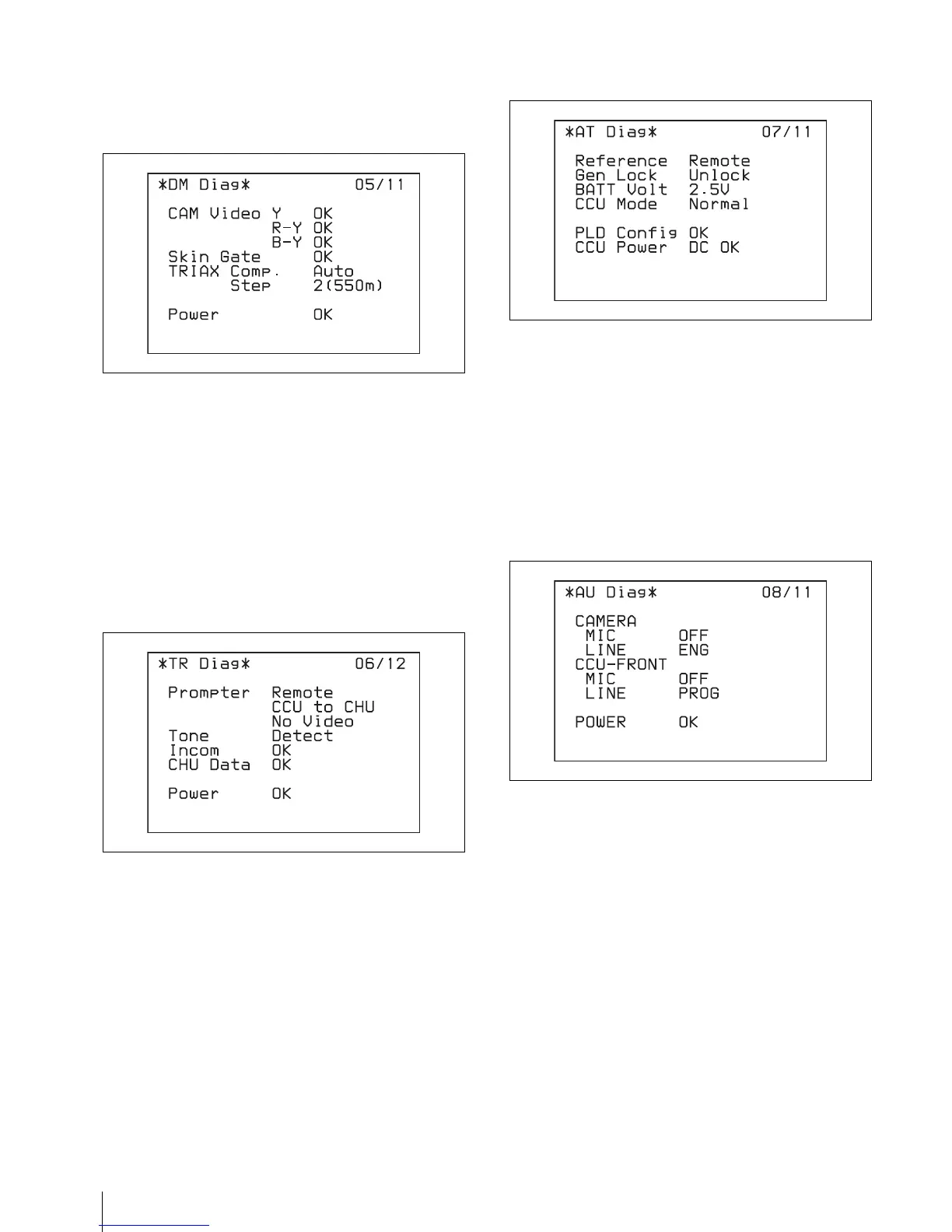

Each time you press the CHARACTER button, another
page of results is displayed in turn.
DM board
CAM Video: Reception status of the video signals
from the camera.
Skin Gate: Reception status of the Skin gate signal
from the camera
TRIAX Comp.: Cable compensation type selected
for the triaxial cable (automatic/manual)
TRIAX Step: Compensation step of the triaxial cable
(step indication in the circuit) (The cable length may
not be displayed correctly.)
Power: DM board power supply status
TR board
Prompter: Setting status of the prompter line
Tone: Tone signal status
Incom: Demodulating status of the intercom line
CHU Data: Data reception status from the camera
Power: Power supply status of the TR board
AT board
Reference: Operation mode of the phase adjustment
Gen Lock: Locking status
BATT Volt: Voltage of the coin battery supplied with
the AT board
CCU Mode: Operation mode of the CCU
PLD Config.: Configuration result status of the PLD
mounted on the AT board
CCU Power: CCU power supply type (AC/DC) and
power supply status
AU board
CAMERA MIC: Input status of the camera
microphone (on/off)
CAMERA LINE: Pathway of the intercom signal of
the camera (ENG/PROD/PRIV)
CCU FRONT MIC: Input status of the unit’s
microphone (on/off)
CCU FRONT LINE: Pathway of the connection of
the intercom signal of the unit (ENG/PROD/PRIV)
POWER: Power supply status of the AU board
