Chapter 2 Fitting and Connections
Chapter 2 Fitting and Connections 27

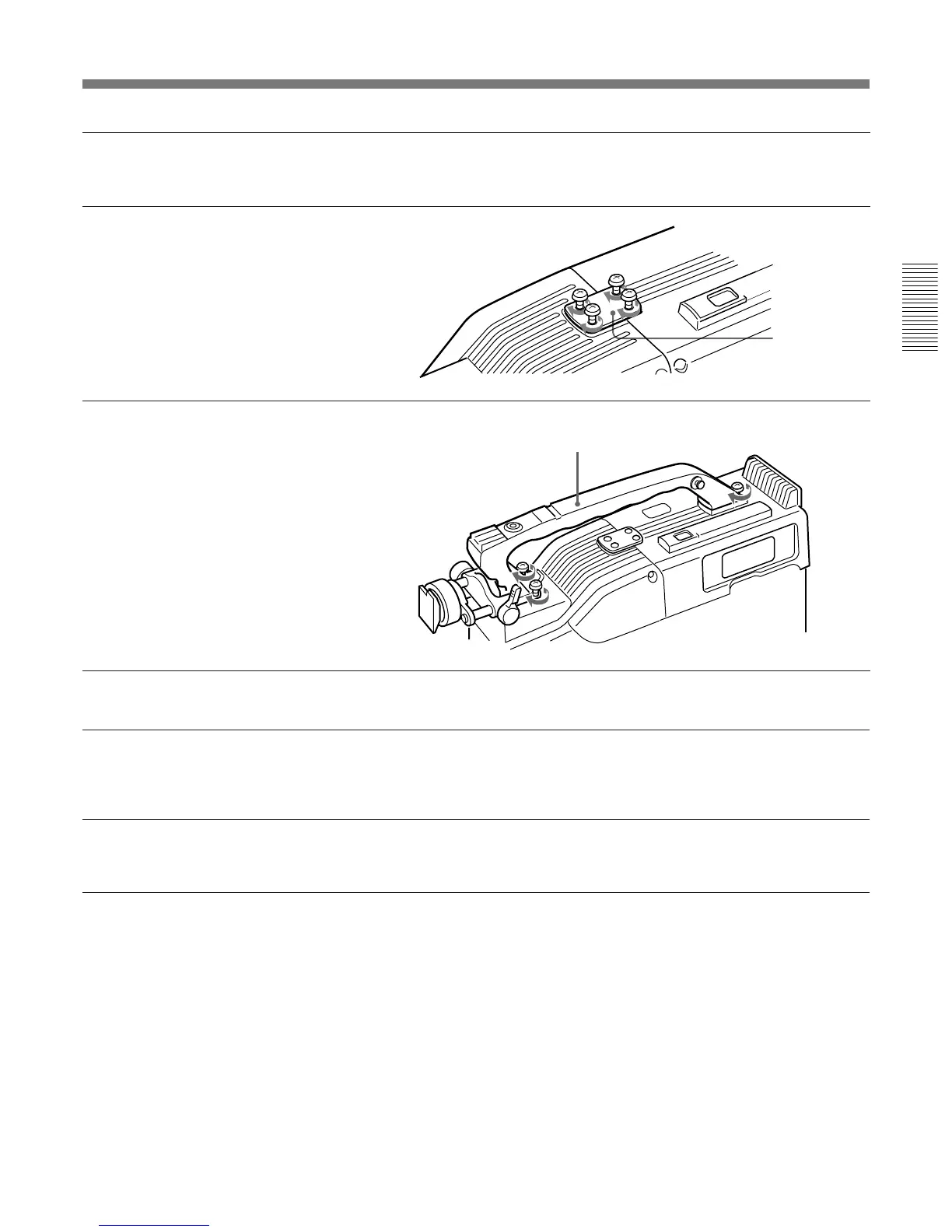

5 Perform the first three steps in
“Fitting a VTR”.
6 Screw the connection plate
(supplied with the grip for the
DVCAM camcorder) which
straddles the connection
between the camera head and
the DSR-1/1P. Also, tighten
the two screws in the shoulder
pad section. (See page 33.)
7 Screw the grip for the
DVCAM camcorder.
Grip for the DVCAM camcorder
Connection
plate
Attaching a camcorder grip to the PVV-3/3P
The CAC-H102 (optional) is required.
1 Perform steps 2 to 4 in “Fitting
a VTR”.
2 Adjust the viewfinder to the
full-forward position.
For details, see “Adjusting the
viewfinder position” on page 31.
