Chapter 2 Fitting and Connections
30 Chapter 2 Fitting and Connections

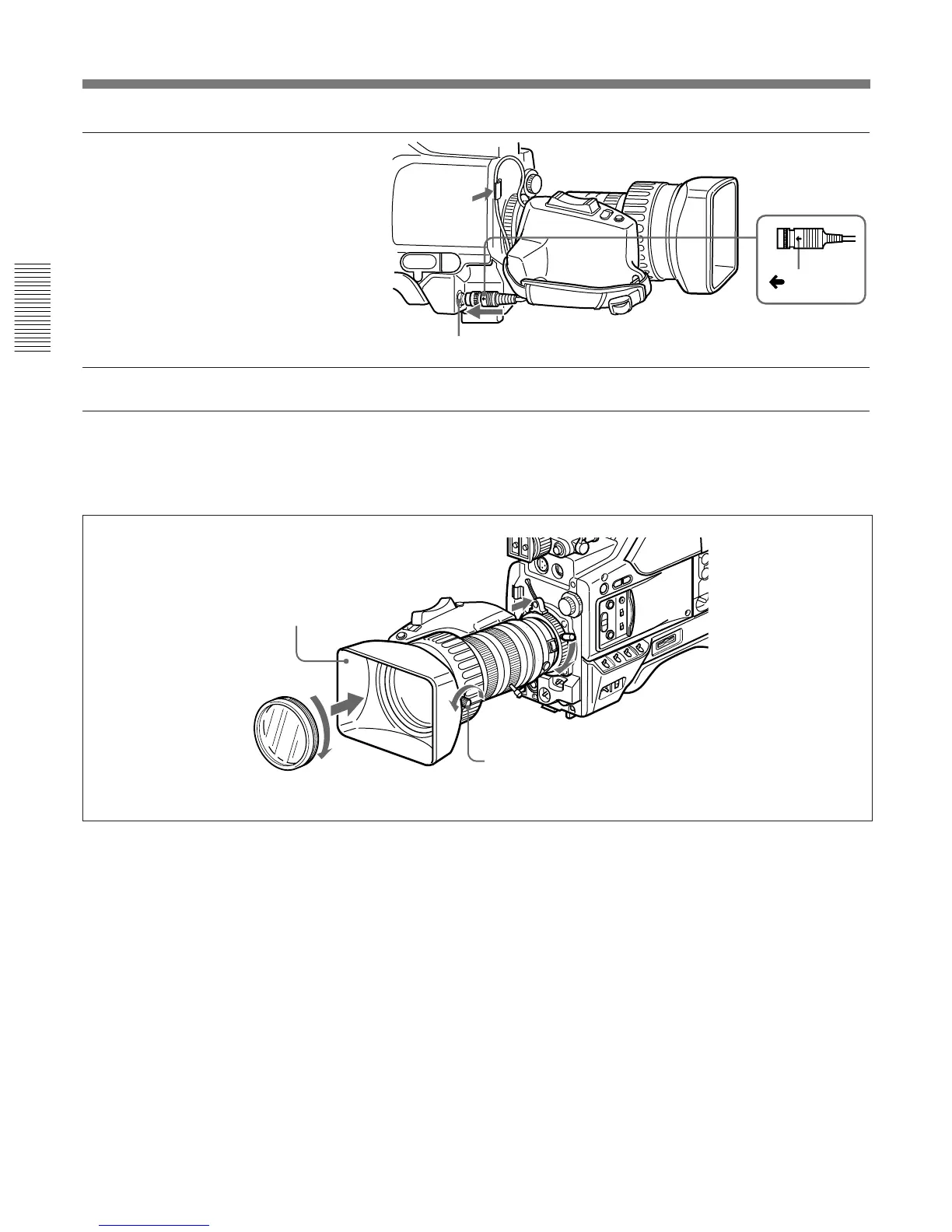

4 Using the triangular mark as a
guide, push the lens connector
into the LENS connector on
the camera head, until it clicks
into place. Fasten the cable
with the clamps.
LENS connector
Triangular
mark
Fitting optional filters
Loosen the lens hood fixing screw to remove the lens
hood, then attach the filter.
Fitting the Lens
Remove lens hood
Lens hood fixing screw
Filter (optional)
