Sony DXC-D50 - Multi-Camera Connections; Multi-Camera Connection Setup

Chapter 2 Fitting and Connections
36 Chapter 2 Fitting and Connections

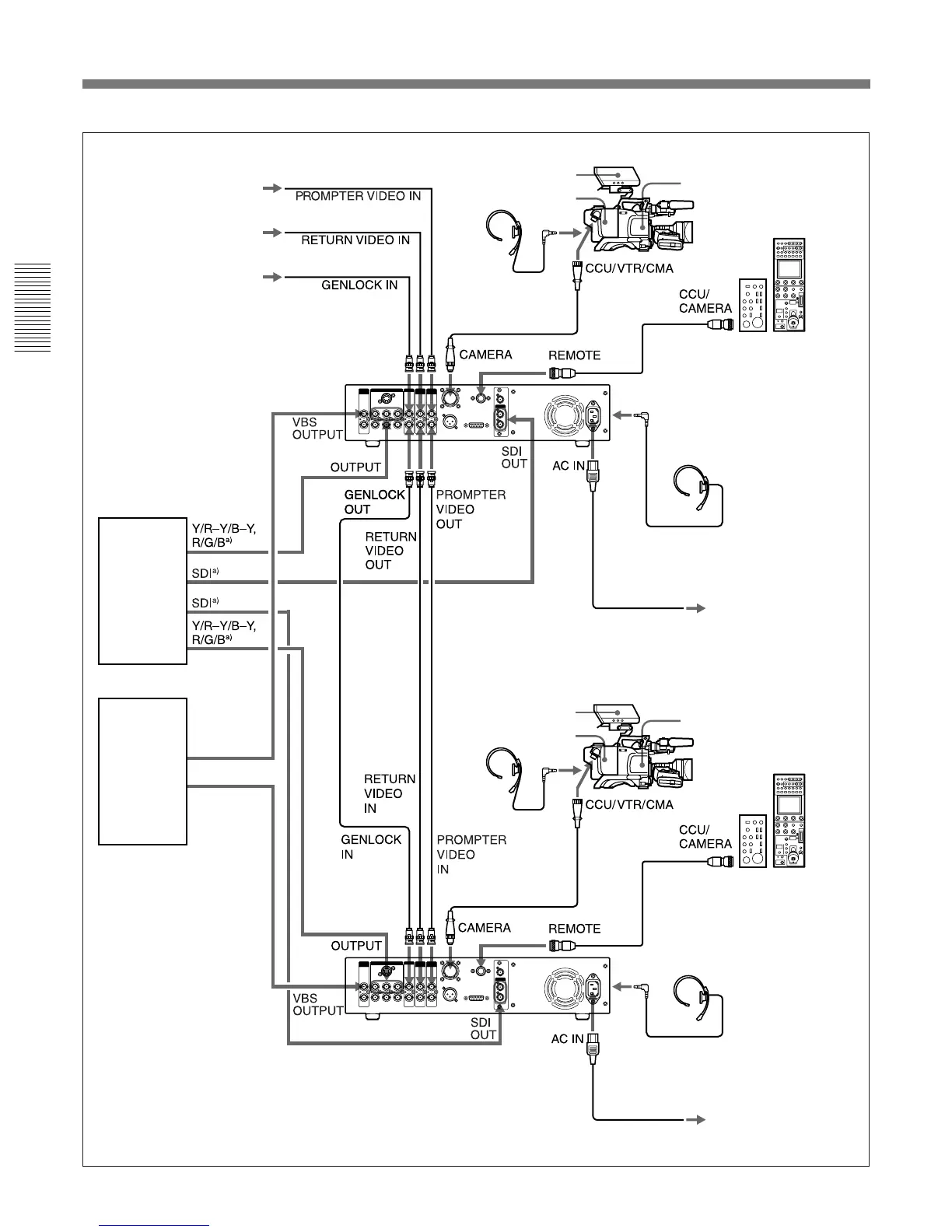

ConnectionsCCU-D50/D50P
DXC-D50/D50P/
D50WS/D50WSP
CA-D50/D50P
Headset
Headset
CA-D50/D50P
DXF-51
Headset
Headset
INTERCOM
(on the front)
INTERCOM
(on the front)
to AC power supply
DXC-D50/D50P/
D50WS/D50WSP
to AC power supply
DXF-51
Prompter video signal
Return video signal
Reference sync signal
CCU-D50/D50P Camera Control Unit
CCU-D50/D50P Camera Control Unit
VTR,
chroma keyer,
etc.
Switcher,
video
monitor,
etc.
RM-M7G
Camera Remote
Control Unit
RCP-D50/D51
Remote Control
Panel
a) Switching of the SDI, Y/R-Y/B-Y, R/G/B signals can be done
with the System Setting switch located on the front panel of the
CCU and by changing wiring of the SDI unit.
RM-M7G
Camera Remote
Control Unit
RCP-D50/D51
Remote Control
Panel
