Sony GN3TR - Page 231

REF. No. PART No. DESCRIPTION MARK
551 1-812-326-11 LCD PANEL(A75QVF3B)
552 4-588-223-01 SHEET, THERMAL (TPZ BBE)
553 4-549-186-01 SHEET, THERMAL(BM)
554 4-690-221-01 CUSHION, CORNER(SBT)
555 8-594-302-80 UNIVERSAL SIL-TU SUT-RA243ZP
556 4-598-764-11 BRACKET, SIDE (SBT) FOR LA1
556 4-598-764-61 BRACKET, SIDE (SBT) FOR UC2
557 A-2170-502-A COMPL SVC BMKS_UC_KS FOR UC2
557 A-2170-504-A COMPL SVC BMKS_MX_KS FOR LA1
558 2-650-770-21 SLIDE, CLAMP
559 4-595-398-11 SHEET, INSULATION(SBT 3L S)
560 1-474-683-11 G72-STATIC CONVERTER(TV)
561 4-595-402-11 SHEET, INUSLATION(SBT 3L M)
562 1-474-682-11 G71-STATIC CONVERTER(TV)
563 4-687-345-01 BRACKET, SPEAKER (3L SBT) A
564 A-2167-845-A IR MOUNT FOR UC2
XBR-49/55/65/75X900E

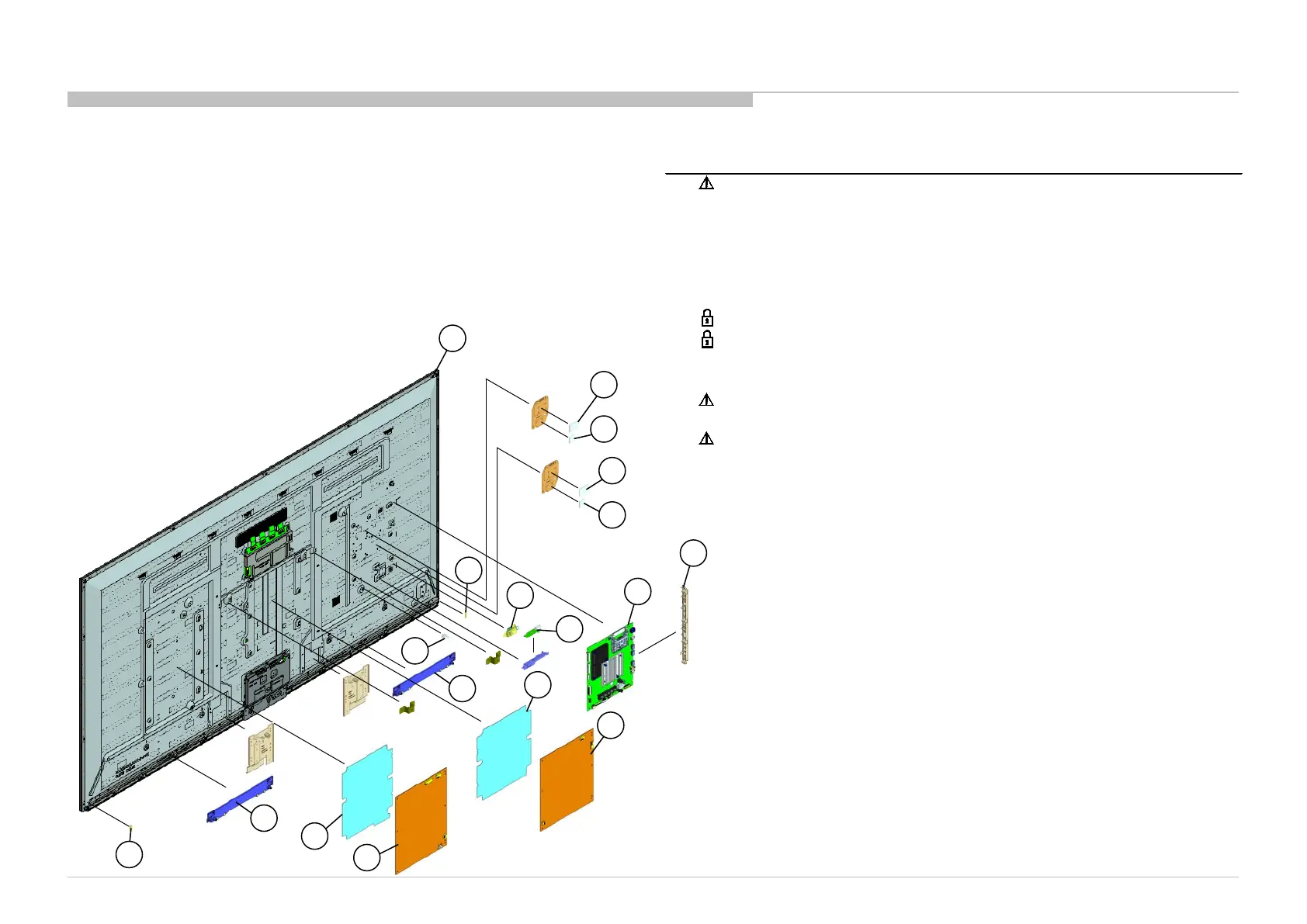

EXPLODED VIEWS
