Sony GN3TR - Page 232

XBR-49/55/65/75X900E

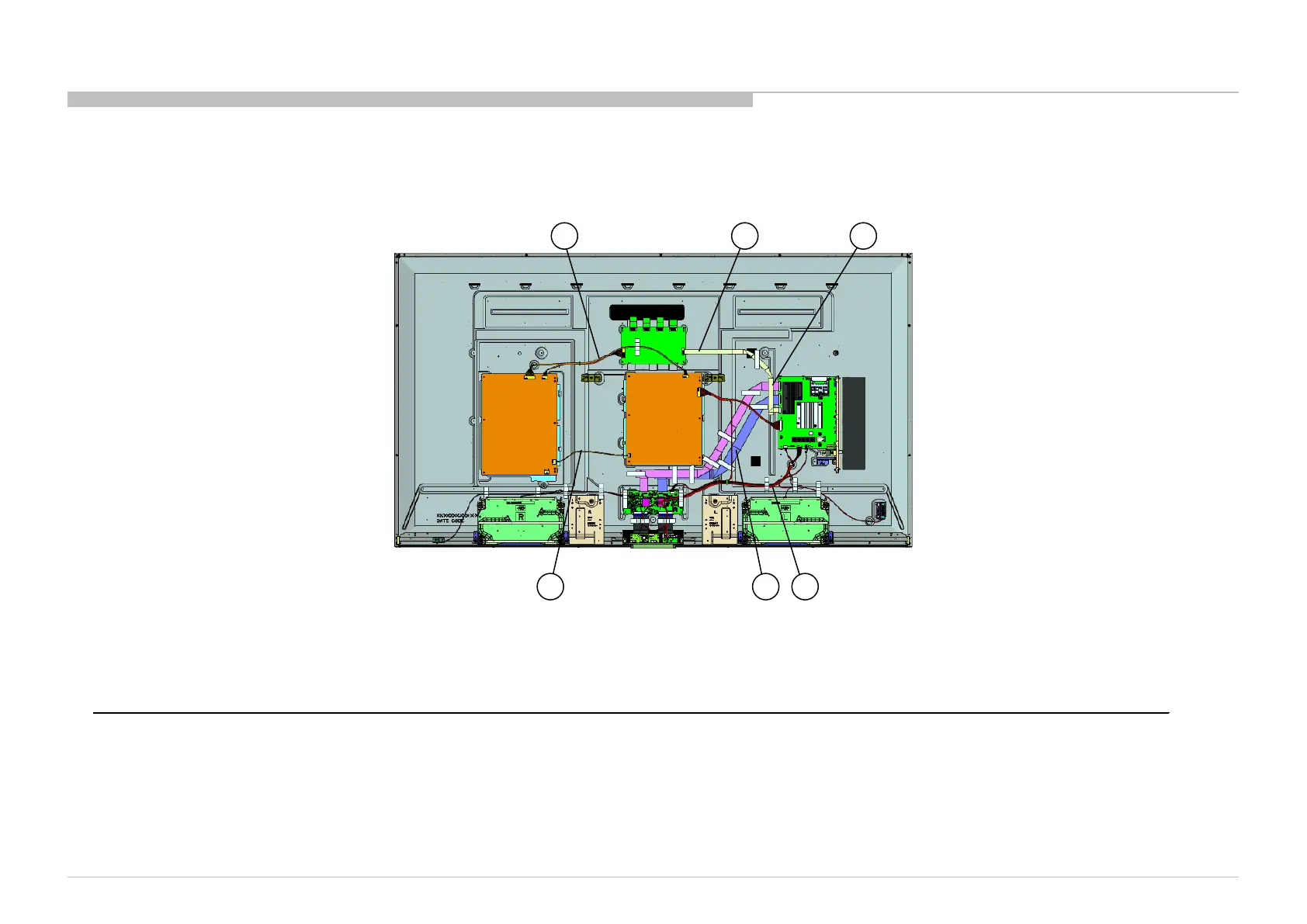

EXPLODED VIEWS
CONNECTORS
4. XBR-75X900E
232
REF.NO. PART No. DESCRIPTION MARK
601 1-849-888-11 FLEXIBLE FLAT CABLE 41P CN4400(BMKS)-J104(TCON)(1)
602 1-849-893-11 FLEXIBLE FLAT CABLE 51P CN4401(BMKS)-J103(TCON)(1)
603 1-910-112-10 FLEXIBLE FLAT CABLE 30P CN4000(BMKS)-CN6001(LD)(1)
604 1-910-112-11 HARNESS ASSY (MAIN) CN1000(BMKS)-KEY-WIFI-HSC3L-TSA-CN1002(BMKS)-CN3201(BMKS)-SP-CN400(BMKS)-CN6401(G
605 1-910-112-12 CONNECTOR ASSY 14P CN6601(G71)-CN6002(LD)-CN6603(G71)-CN6402(G72)(1)
606 1-912-000-11 CONNECTOR ASSY 2P CN6103(G71)-CN6102(G72)(1)
604
605
606
603 601
602
