Sony HBD-DZ950 - Holder Chuck; Tray Disc-1

DAV-DZ350/DZ650/DZ950
12

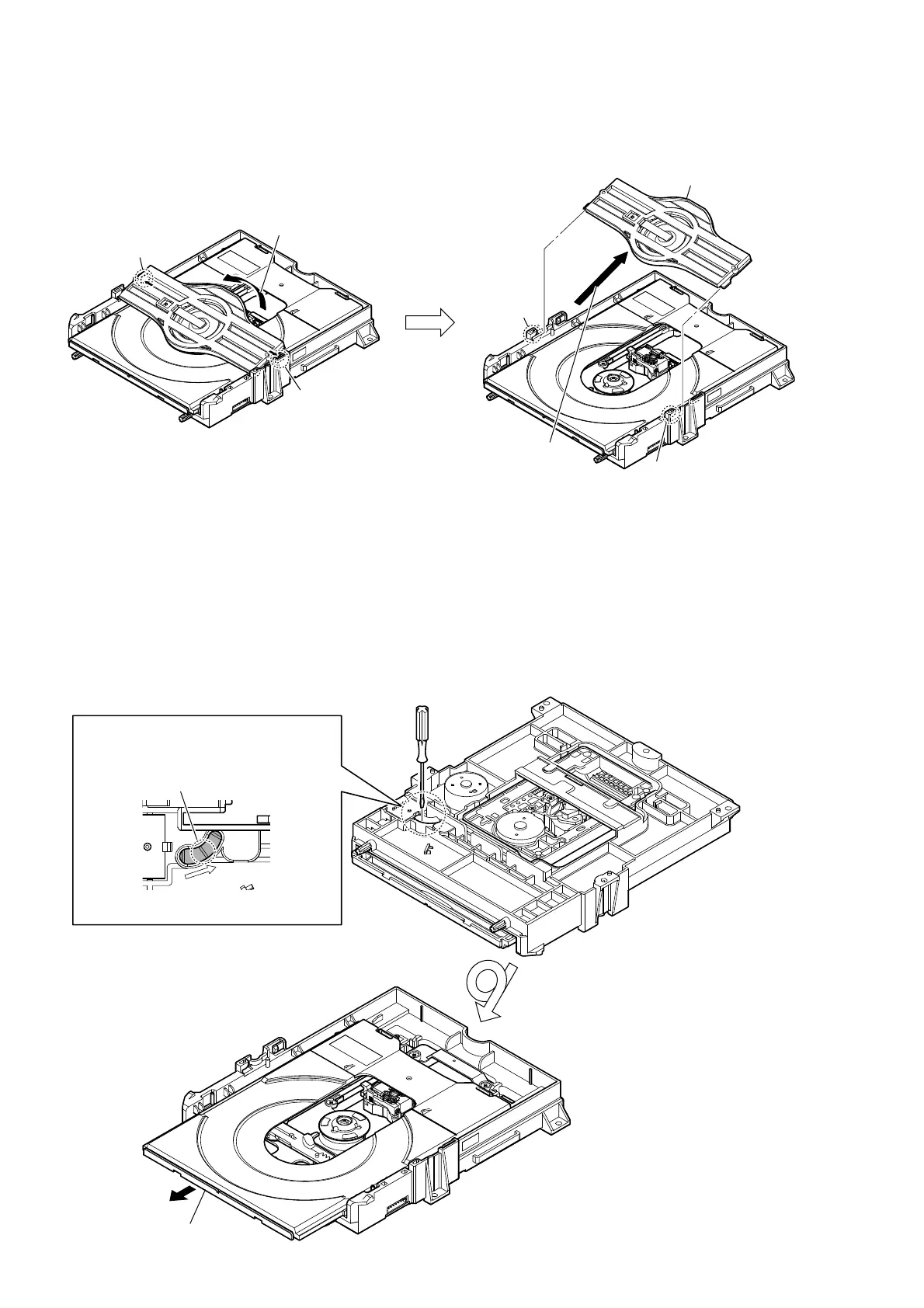

2-9. HOLDER CHUCK
2-10. TRAY DISC-1
• Continued on next page.
4 Remove the holder chuck
in the direction of the arrow.
5 holder chuck
3 hook
3 hook
1 claw
1 claw
2 Remove the holder chuck
in the direction of the arrow.
2 Pull out the tray disc.
ditch
1 Insert a flat-head screwdriver etc. in the
hole, and slide the lever in the direction
of the arrow.
– DVD mechanism deck bottom view –
– DVD mechanism deck bottom view –
Ver. 1.3
