Sony HBD-DZ950 - Chassis Section

44
DAV-DZ350/DZ650/DZ950

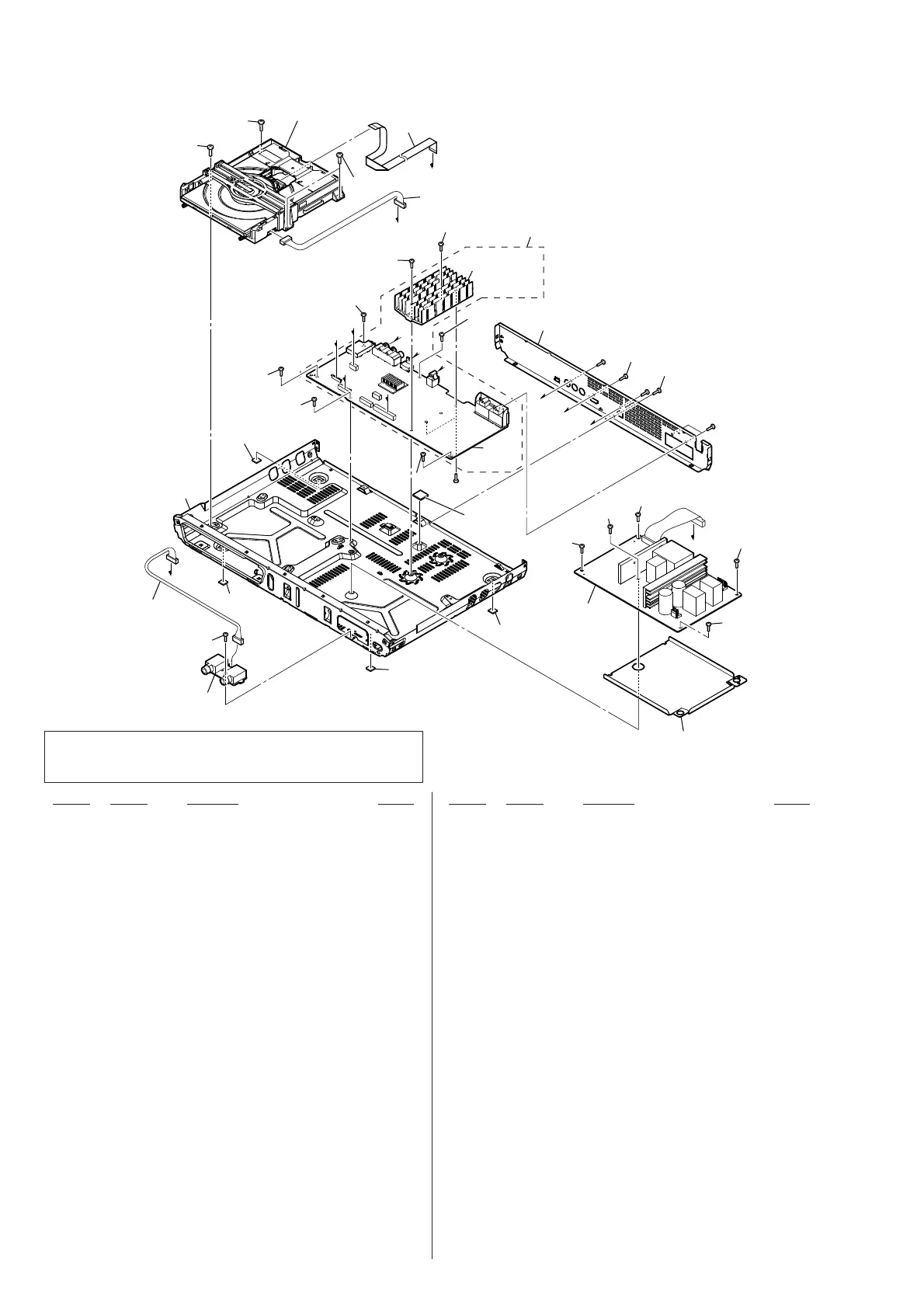

6-3. CHASSIS SECTION
101 9-885-183-82 MIC BOARD, COMPLETE
102 9-885-170-69 +BVTT 3X7 CZN3 (POINT CIRCLE)
103 9-885-166-85 PORON FOOT
0 104 9-885-183-66 POWER BOARD, COMPLETE (450V)
(E3, E12, E93)
0 104 9-885-183-68 POWER BOARD, COMPLETE (400V)
(CEL, RU, SAF, EA, SP1, TH)
105 9-885-152-89 HEAT SINK SCREW
9 106 9-885-183-50 MAIN BOARD, COMPLETE (DZ350: E12)
9 106 9-885-183-51 MAIN BOARD, COMPLETE (DZ350: E3) (Former)
(See Note)
9 106 9-885-183-52 MAIN BOARD, COMPLETE (DZ350: E93) (Former)
(See Note)
9 106 9-885-183-53 MAIN BOARD, COMPLETE (DZ350: EA)
9 106 9-885-183-54 MAIN BOARD, COMPLETE (DZ350: SAF)
9 106 9-885-183-55 MAIN BOARD, COMPLETE (DZ350: SP1)
9 106 9-885-183-56 MAIN BOARD, COMPLETE (DZ650: E3) (Former)
(See Note)
9 106 9-885-183-57 MAIN BOARD, COMPLETE (DZ650: E93) (Former)
(See Note)
9 106 9-885-183-58 MAIN BOARD, COMPLETE (DZ650: RU)
9 106 9-885-183-59 MAIN BOARD, COMPLETE (DZ650: SP1)
9 106 9-885-183-60 MAIN BOARD, COMPLETE (DZ650: TH)
9 106 9-885-183-61 MAIN BOARD, COMPLETE (DZ950: E3) (Former)
(See Note)
9 106 9-885-183-62 MAIN BOARD, COMPLETE (DZ950: E93) (Former)
(See Note)
9 106 9-885-183-63 MAIN BOARD, COMPLETE (DZ950: EA)
9 106 9-885-183-64 MAIN BOARD, COMPLETE (DZ950: SP1)
9 106 9-885-183-65 MAIN BOARD, COMPLETE (DZ950: TH)
9 106 9-885-185-01 MAIN BOARD, COMPLETE (DZ650: EA)
9 106 9-885-185-35 MAIN BOARD, COMPLETE (DZ650: CEL)
9 106 9-885-185-36 MAIN BOARD, COMPLETE (DZ950: CEL)
9 106 9-885-186-37 MAIN BOARD, COMPLETE (DZ350: TH)
9 106 9-885-194-88 MAIN BOARD, COMPLETE (DZ350: E3) (New)
(See Note)
9 106 9-885-194-89 MAIN BOARD, COMPLETE (DZ350: E93) (New)
(See Note)
9 106 9-885-194-90 MAIN BOARD, COMPLETE (DZ650: E3) (New)
(See Note)
9 106 9-885-194-91 MAIN BOARD, COMPLETE (DZ650: E93) (New)
(See Note)
9 106 9-885-194-92 MAIN BOARD, COMPLETE (DZ950: E3) (New)
(See Note)
9 106 9-885-194-93 MAIN BOARD, COMPLETE (DZ950: E93) (New)
(See Note)
107 9-885-144-64 +BVTT 3X6 BZN3
FFC1 9-885-183-84 WIRE KIT (FFC) (24P)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not
supplied
D
E
C
not supplied
#1
#1
#1
not supplied
not supplied
not supplied
#2
101
not supplied
103
103
103
102
102
102
102
102
102
102
102
102
102
103
104
102
102
105
105
106
107
107
102
F
A
D
E
C
FFC1
B
G
F
A
B
G
102
MAIN
board
DVD mechanism deck section
(CMS-LS5FP)
Ver. 1.4
Note: Refer to the “CHANGES TO SPECIFICATIONS” on page 4 for
how to distinguish new/former types of the MAIN board. (E3 and
E93 models only)
