Sony HBD-DZ950 - Main Board Replacement

DAV-DZ350/DZ650/DZ950
17

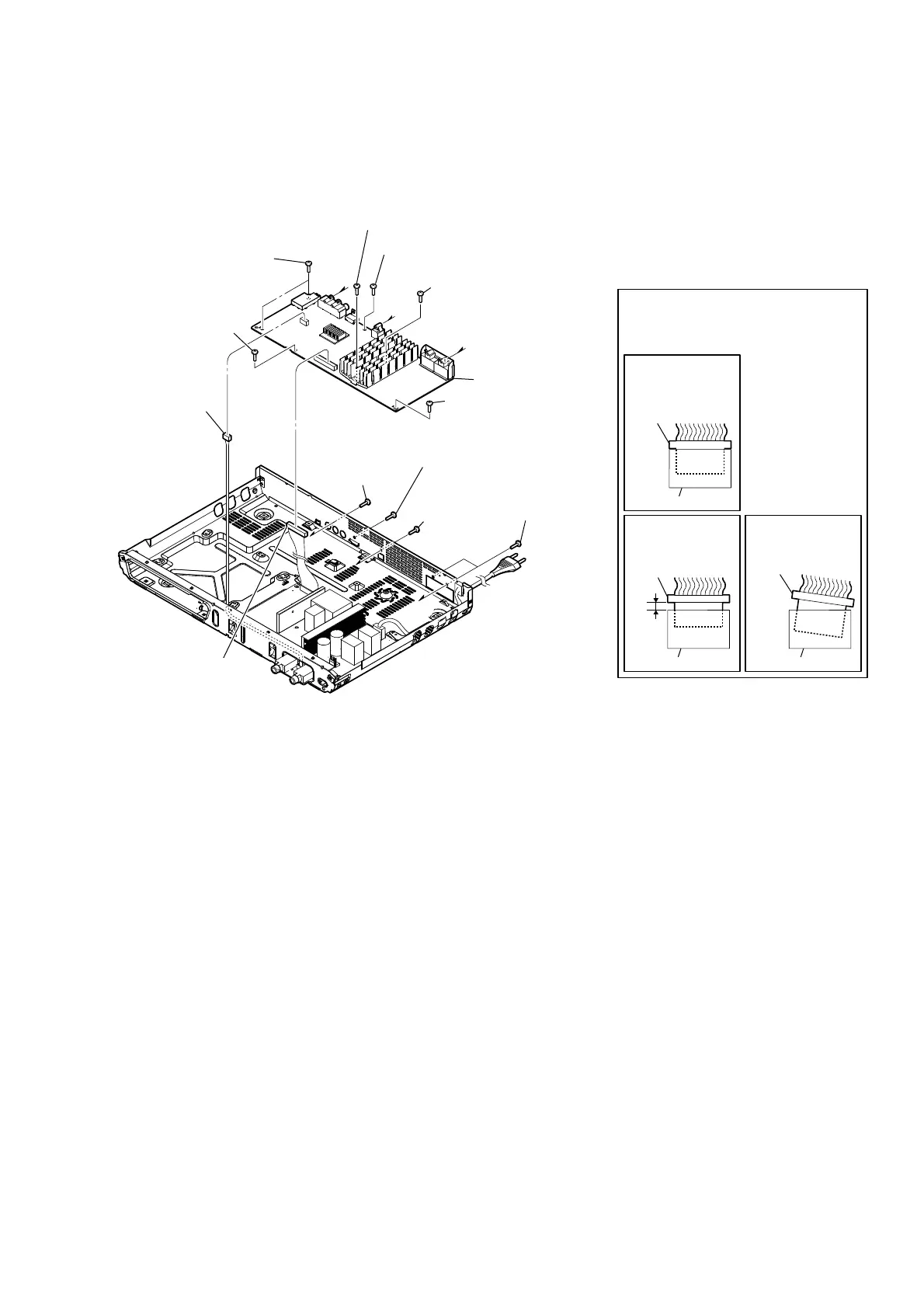

2-15. MAIN BOARD
4 two screws
(BVTT3 u 7)
4 screw
(BVTT3 u 7)
4 screw
(BVTT3 u 7)
4 screw
(BVTT3 u 7)
7 MAIN board
5 two screws
(BVTP3 u 10)
5 screw
(BVTP3 u 10)
6 screw
(BVTT3 u 6)
5 screw
(BVTP3 u 10)
3 heat sink screw
3 heat sink screw
2 connector
(CN600)
1 connector
(CN400)
B
A
A
B
C
C
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
NG
OK
NG
Note:
When you install the connector, please
install them correctly.
There is a possibility that this machine
damages when not correctly installing it.
