Sony HBD-DZ950 - Tray Disc-2

DAV-DZ350/DZ650/DZ950
13

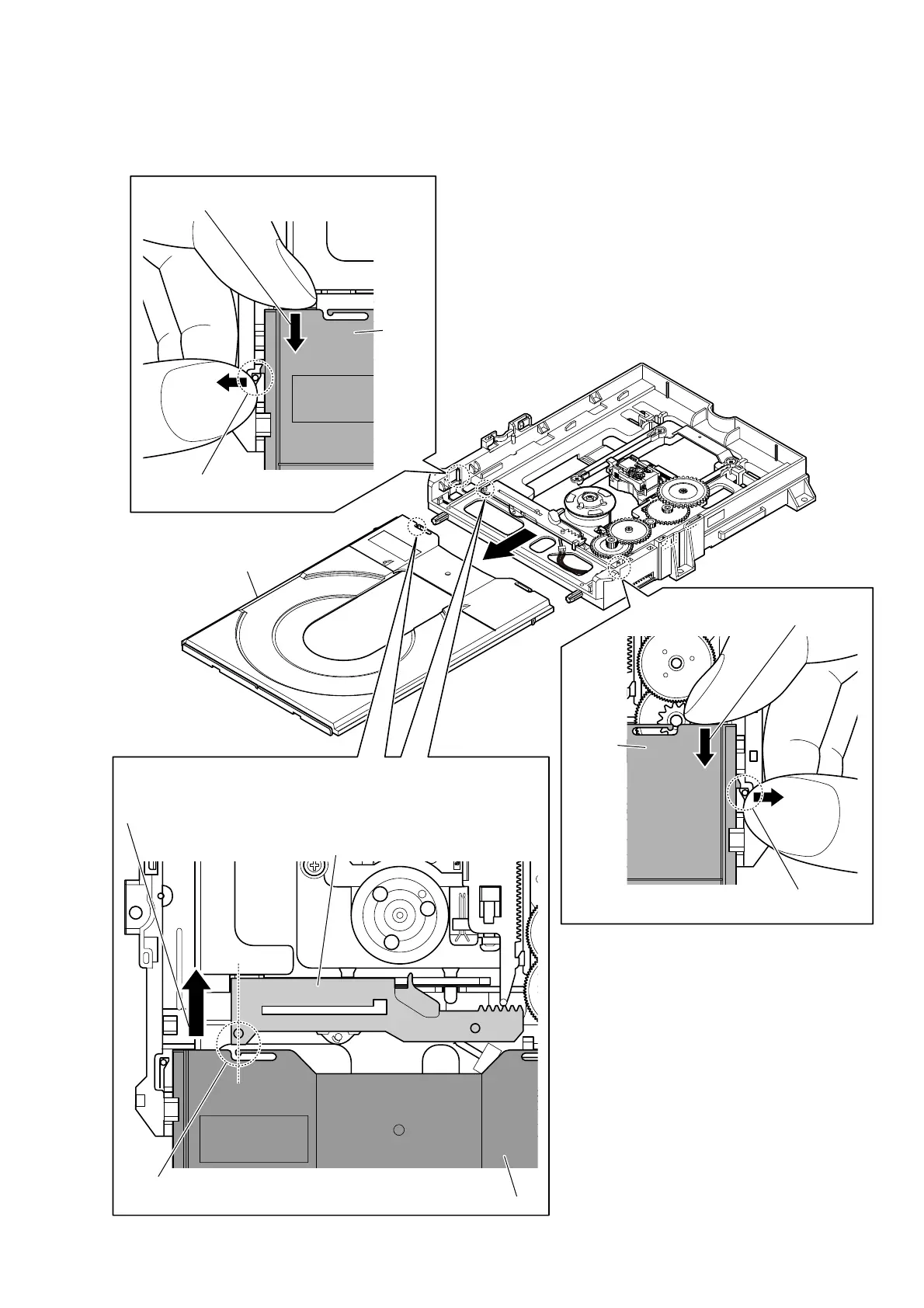

2-11. TRAY DISC-2
3 tray disc
1 Pull the claw in the direction of
the arrow with the thumb.
2 Push the tray disc in the direction of
the arrow with an index finger.
tray disc
1 Pull the claw in the direction of
the arrow with the thumb.
2 Push the tray disc in the direction of
the arrow with an index finger.
tray disc
1 Align the boss of the slide cam and the crack of tray disc.
slide cam
2 Push the tray disc in the direction of the arrow
until it will be in the state of chucking.
tray disc
Note:
When installing the tray disc, follow the assembly procedure
in the numerical order given.
Ver. 1.3
