2-12. OPTICAL PICK-UP BLOCK-1
• Continued on next page.
1 Remove the solder.
[red]
1 Remove the solder.
[blue]
1 Remove the solder.
[black]
1 Remove the solder.
[blue]

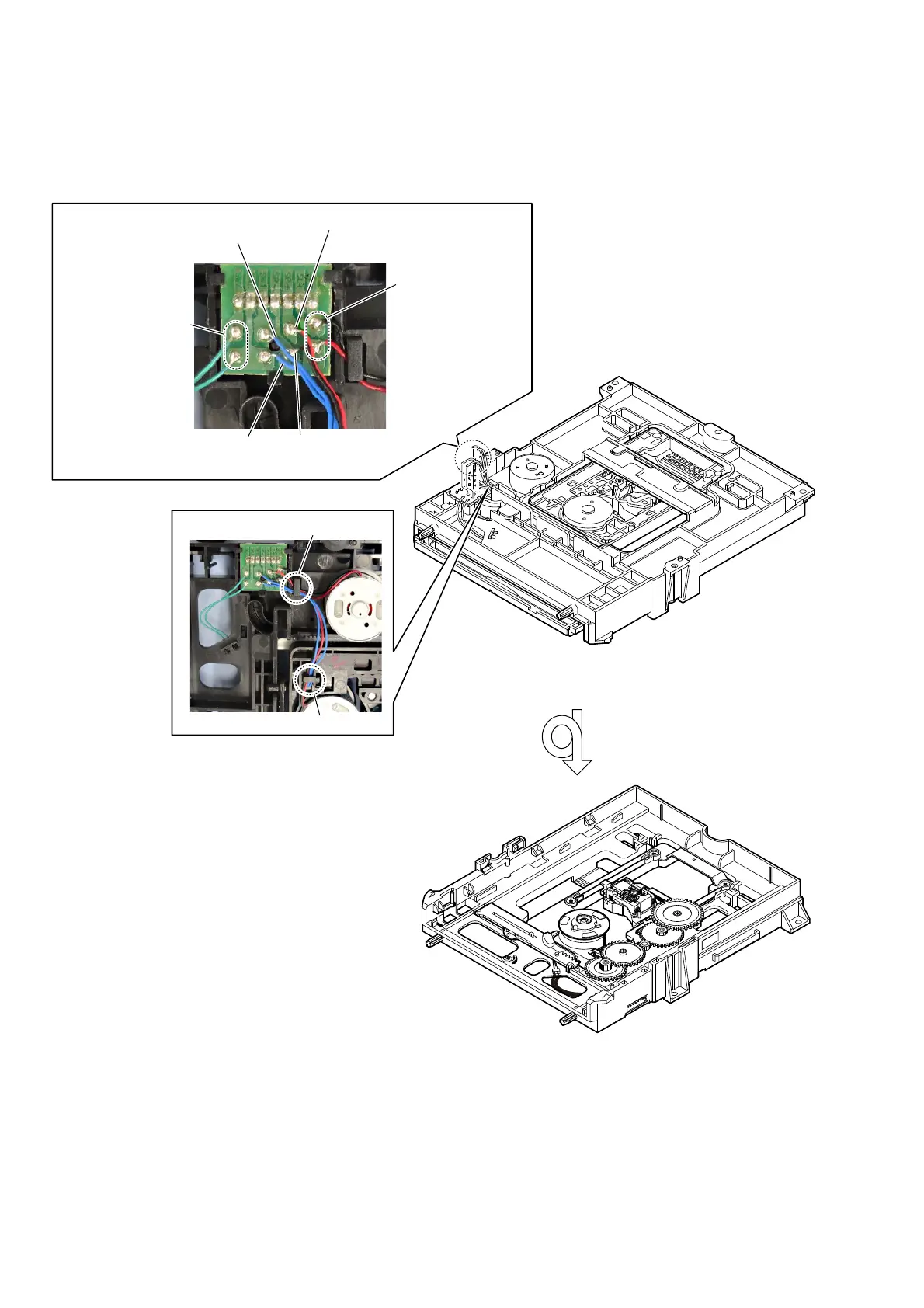

– DVD mechanism deck bottom view –
Note:
Don't remove these
two solders.
[green]
Note:
Don't remove these
two solders.
[black/red]
hook
hook
