Sony HBD-DZ950 - Optical Pick-Up Block-2

DAV-DZ350/DZ650/DZ950
15

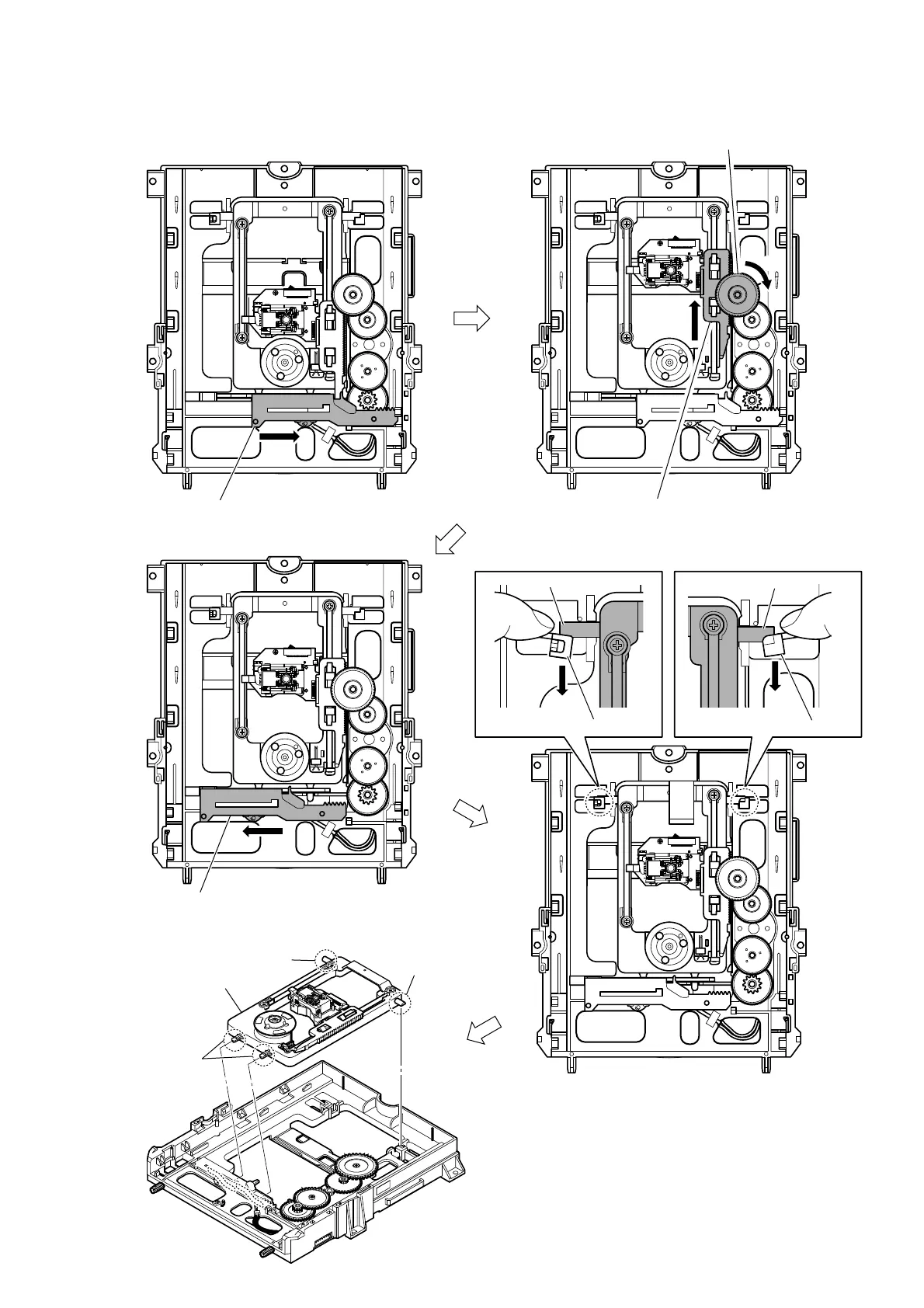

2-13. OPTICAL PICK-UP BLOCK-2
– DVD mechanism deck top view –
1 Move the slide cam in the direction of the arrow A
and it will be in the state of chucking.
4 Move the slide cam in the direction of the arrow D
and it will be in the state of unchucking.
2 Rotate the gear [black] in the direction of the arrow B.
3 Move the gear rack [white] in the direction of the arrow C.
C
B
A
D
5 Push the hook
6 shaft
8 optical pick-up block
6 shaft
7 two bosses
5 Push the hook
shaftshaft
Ver. 1.3
