5-15. PRINTED WIRING BOARD - POWER Board (Conductor Side) -

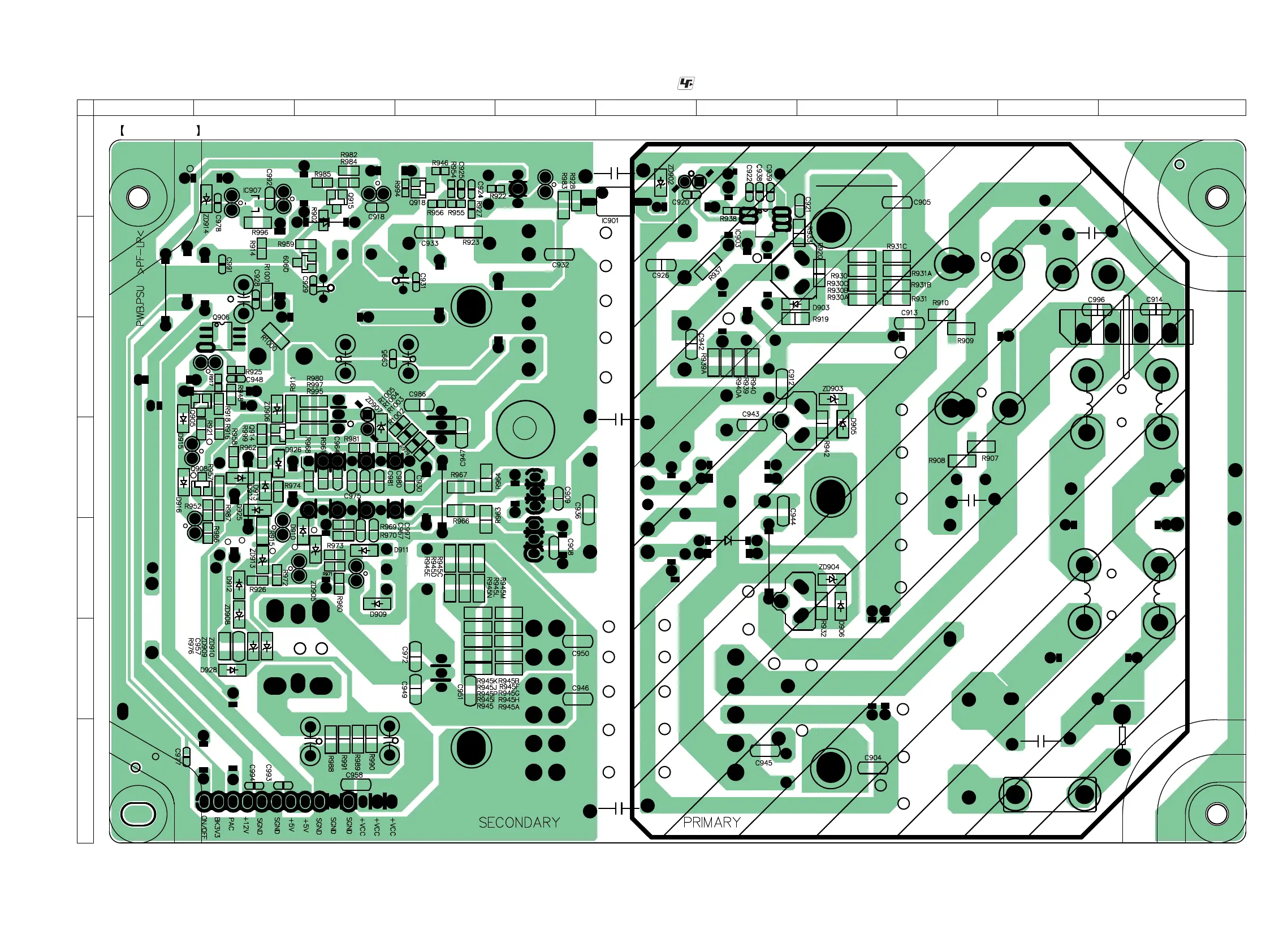

POWER BOARD (CONDUCTOR SIDE)
A
B
C
D
E
F
G
1 2 3 4 5 6 7 8 9 10 11
• : Uses unleaded solder.
• See page 21 for Circuit Boards Location.
