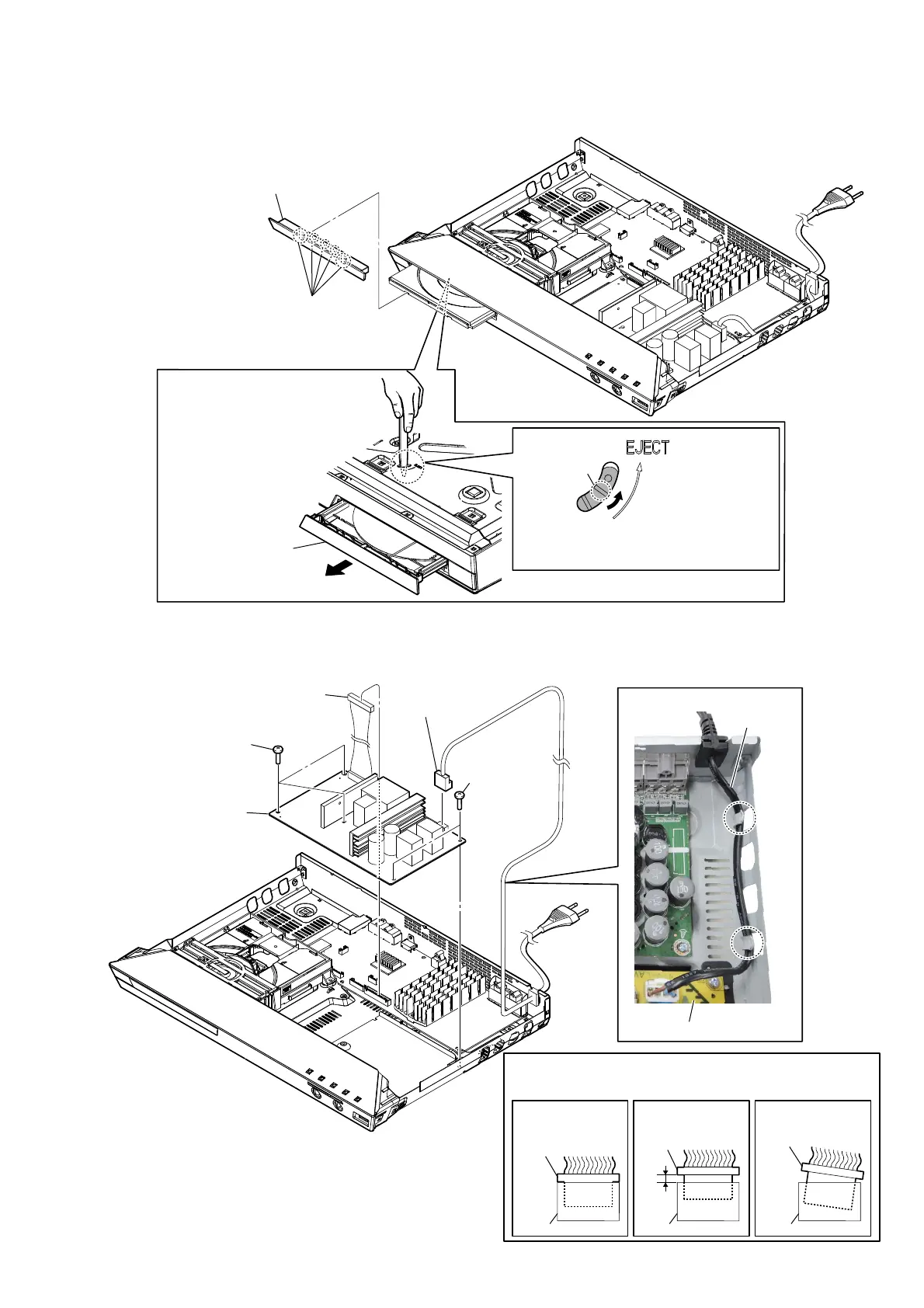

2-3. DVD DOOR ASSY
3 five claws
4 DVD door assy
2 Pull out the disc tray.
ditch
1 Insert the tweezers etc. in the hole of the
chassis, and slide the lever in the direction
of the arrow.
– Bottom view –
– Bottom view –
2-4. POWER BOARD
4 POWER board
POWER board
1 power cord connector
(CN901)
2 connector
(CN400)
3 three screws
(BVTT3 u 7)
3 two screws
(BVTT3 u 7)
3RZHUFRUGVHWWLQJ
power cord
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector connector
connector
connector
connector
NGOK NG
Note:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
