Sony HBD-DZ950 - 6 Exploded Views; Top Cover Section

42
DAV-DZ350/DZ650/DZ950
SECTION 6
EXPLODED VIEWS
1 9-885-183-77 DVD DOOR ASSY
2 9-885-166-84 WIRE TIE
3 9-885-144-64 +BVTT 3X6 BZN3
4 9-885-183-76 TOP COVER (DJ)
0 AC1 9-885-183-70 AC CORD (CEL, RU, E3, E12, SAF, SP1)
0 AC1 9-885-183-71 AC CORD (E93, EA)
0 AC1 9-885-183-72 AC CORD (TH)
0 ACP1 9-885-169-68 AC PLUG ADAPTER (E12)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
CEL : Turkish model
E3 : Middle East & African models
(Except country of E93 area,
South African)
E12 : Indian model
E93 : Iraqi, Kuwait, UAE, Kenyan,
Nigerian and Tanzanian models
EA : Saudi Arabia model
RU : Russian model
SAF : South African model
SP1 : Asian and Oceanian models
(Except Australian, Thai)
TH : Thai model

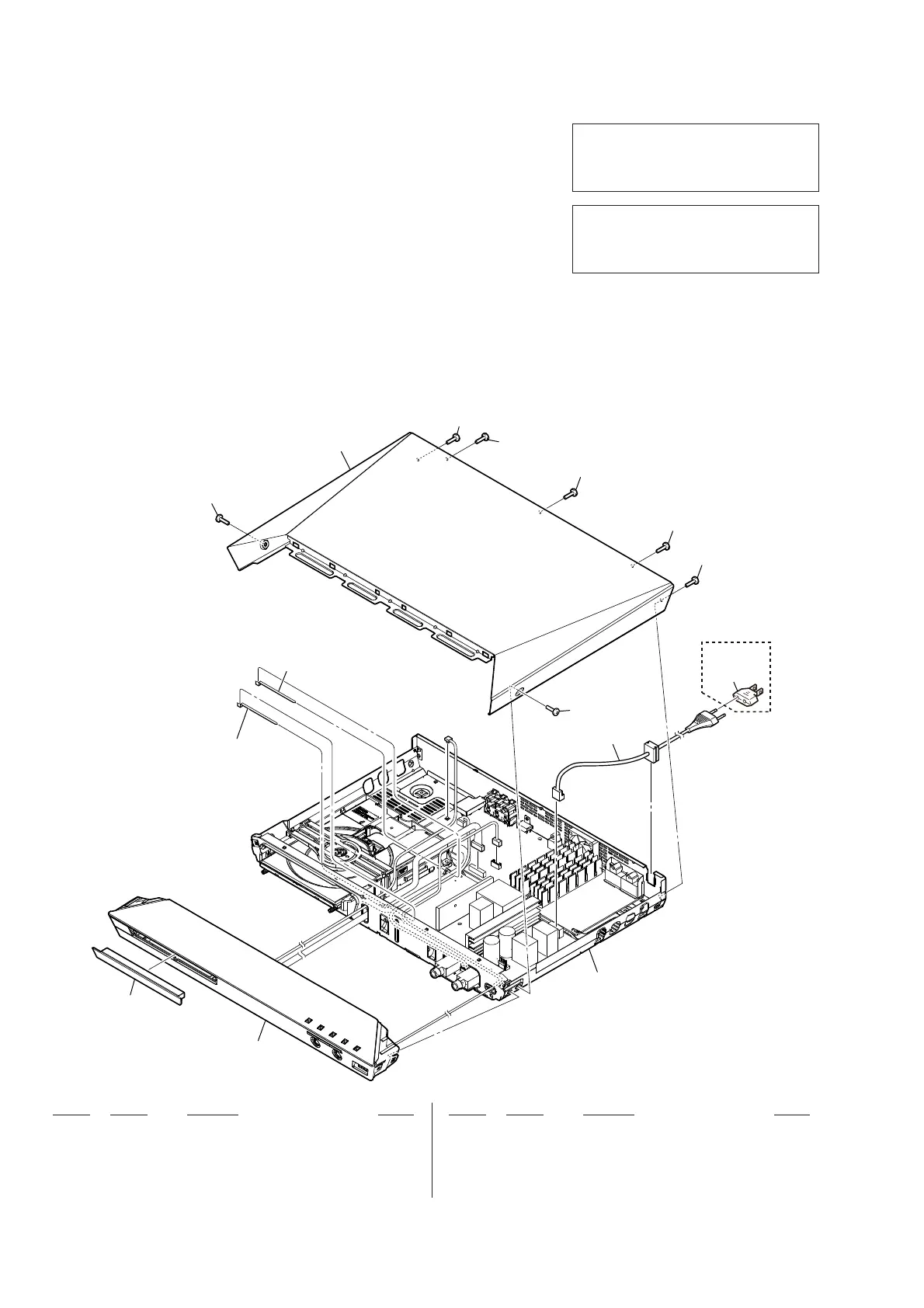

6-1. TOP COVER SECTION
chassis section
front panel section
ACP1
AC1
3
4
3
3
3
3
3
3
1
2
2
(E12)
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Ver. 1.1
