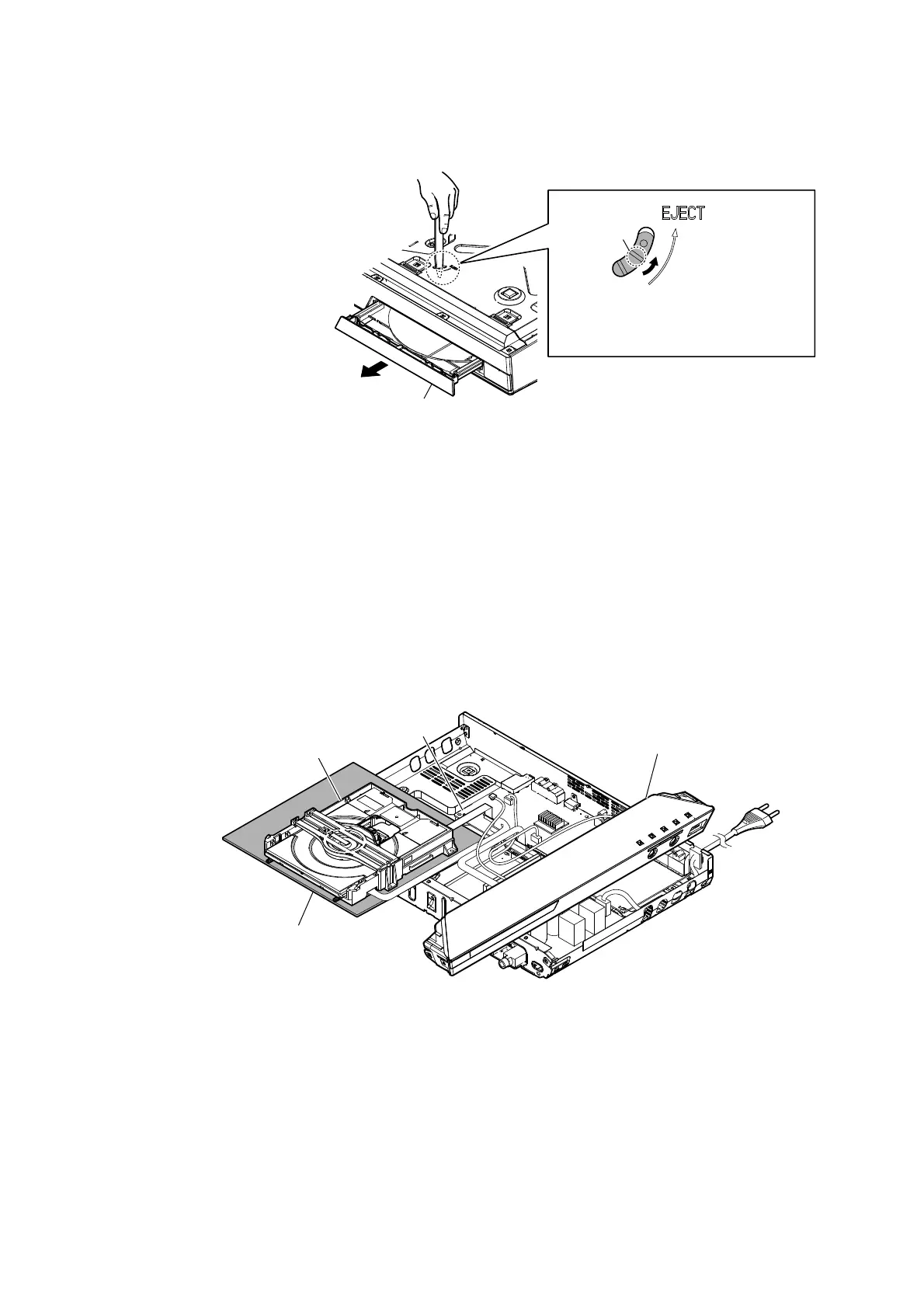

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
DVD MECHANISM DECK SERVICE POSITION
2 Pull out the disc tray.
ditch
1 Insert the tweezers etc. in the hole of the
chassis, and slide the lever in the direction
of the arrow.
– Bottom view –
– Bottom view –
DVD mechanism deck
(CMS-LS5FP)
MAIN board
front panel block
insulating sheet
