HBD-E280/T28
8

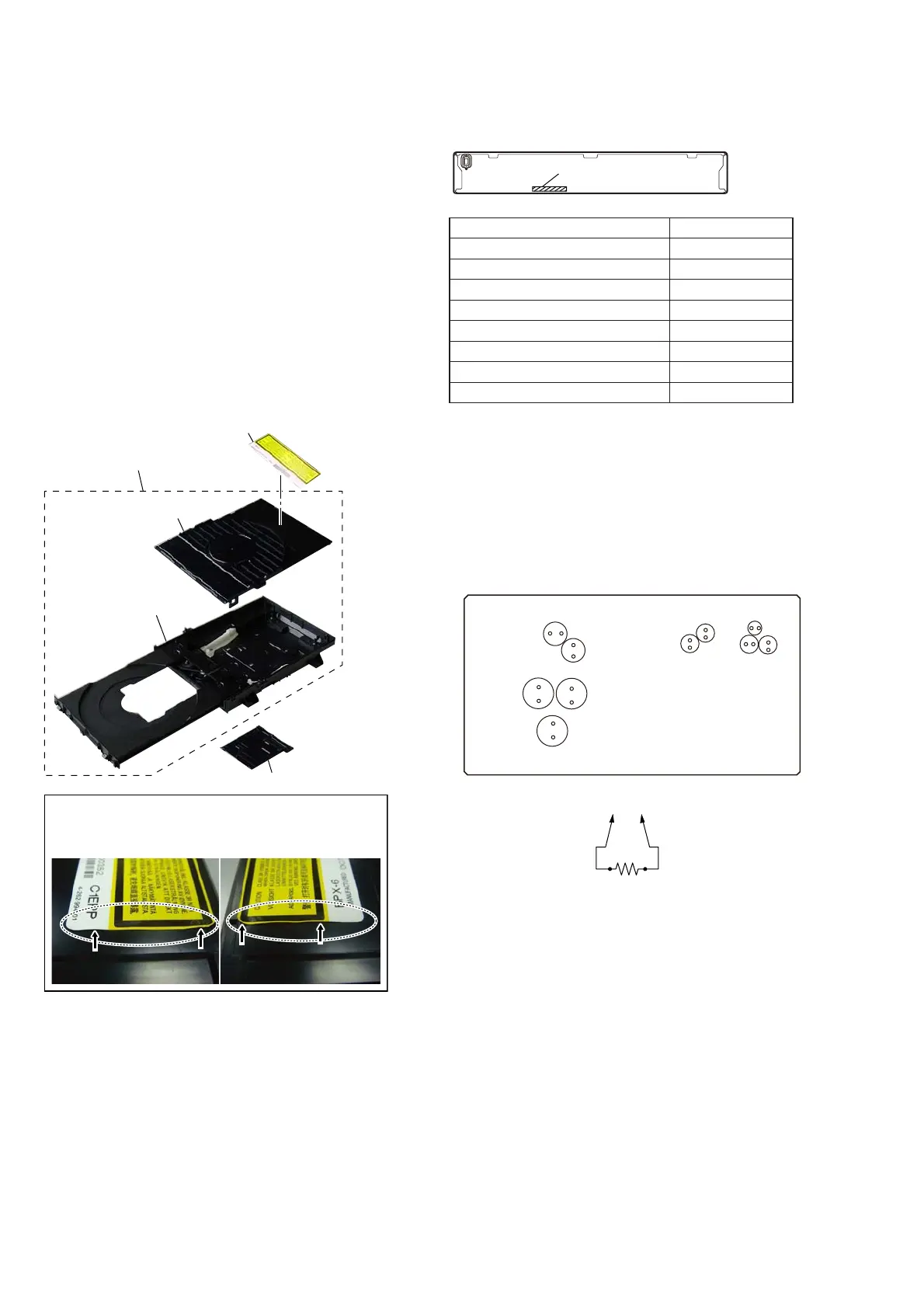

MODEL IDENTIFICATION
- Rear view -
Part No.
Model Part No.
E280: US model
4-264-116-0[]
E280: Canadian model
4-264-116-1[]
E280: AEP, Italian and UK models
4-264-116-2[]
E280: Australian model
4-264-116-4[]
E280: Mexican model
4-264-116-5[]
T28: Canadian model
4-264-116-8[]
T28: Mexican model
4-264-116-9[]
E280: PX model
4-264-119-1[]
CAPACITOR ELECTRICAL DISCHARGE PROCESSING
When checking the board, the electrical discharge is necessary for
the electric shock prevention.
Connect the resistor to both ends of respective capacitors.
• Switching regulator
C1, C3, C4, C101, C102, C305, C306, C309, C310, C313
– SWICTHING REGULATOR (Conductor Side) –
C1
C3
C4
C101
(To both ends of each capacitor)
C313
C310
C306
C305
C309
C102
800 :/2 W
NOTE THE BD DRIVE (BPX-6) PARTS REPLACING
The mechanism blocks except optical device of BD drive (BPX-6)
are chiefl y composed of the following parts.
• CHUCK HOLDER ASSY
• LOADING ASSY
• HOLDER, FFC (REAR)
These parts are produced by two venders, it is not compatible.
Therefore, CHUCK HOLDER ASSY and LOADING ASSY are
supplied by one pair as repair parts. Please exchange both CHUCK
HOLDER ASSY and LOADING ASSY at the same time.
HOLDER FFC (REAR) need not be exchanged at the same time.
Note 1: The laser caution label is not pasted to LOADING FOR SER-
VICE (Part No. A-1750-926-A). Please peel off an original laser
caution label, and paste it to LOADING FOR SERVICE when
you use LOADING FOR SERVICE.
LASER CAUTION LABEL
CHUCK HOLDER ASSY
LOADING ASSY
LOADING FOR SERVICE
HOLDER, FFC (REAR)
/LPLWVDPSOHLQVWDWHRIODVHUFDXWLRQODEHO
Note 2:
If laser caution label is a condition of the figure below,
it is acceptable.
Ver. 1.1
