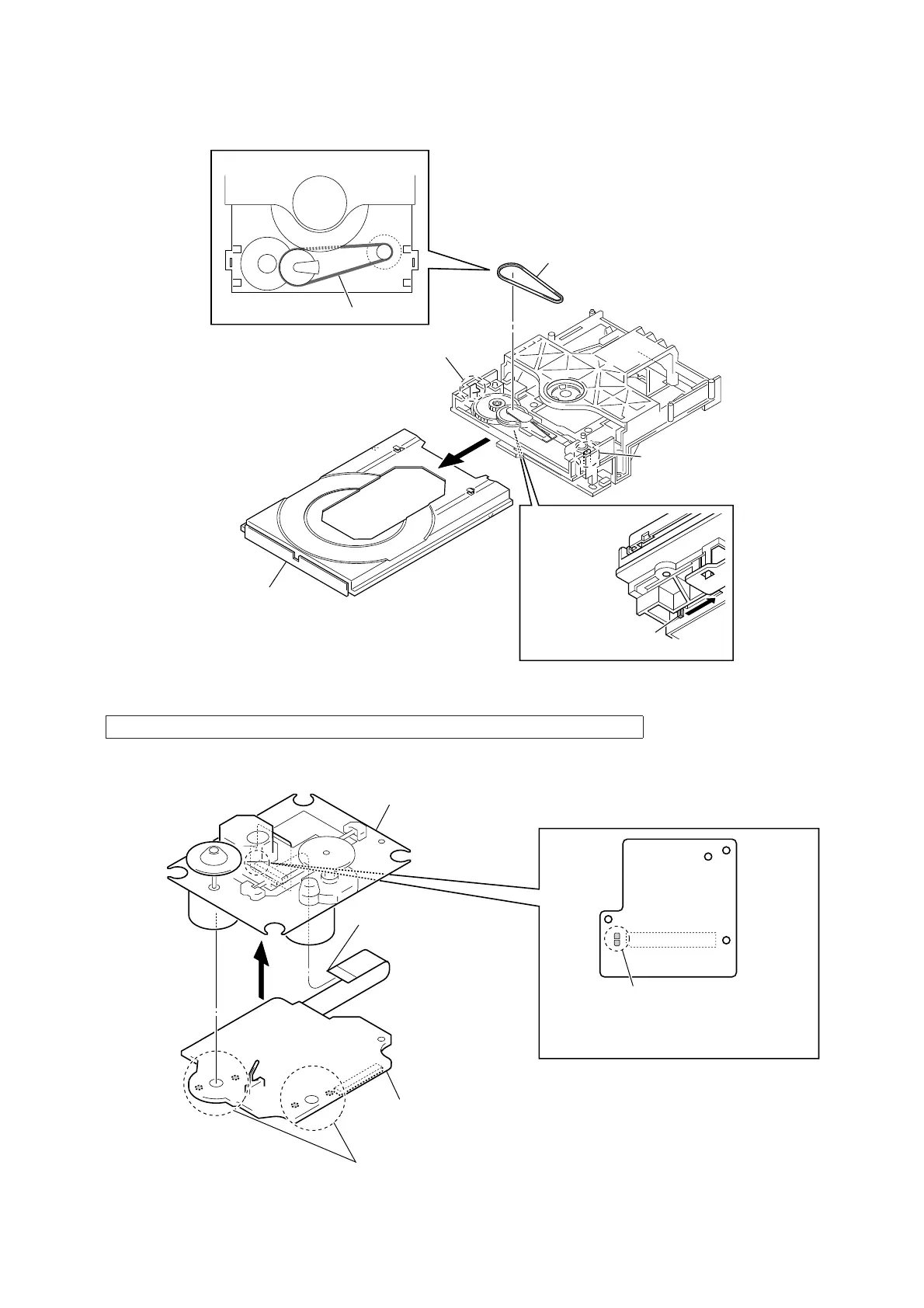

2-14. BELT
2-15. OPTICAL PICK-UP BLOCK (KSM-213DCP)
3RVLWLRQRIEHOW
5 belt
3 claw
3 claw
4 tray (AU)
2
belt
1
Slide the boss in the
direction of the arrow.
Note 1: When disconnecting the wire (fl at type) (16 core) of optical pick-up block, solder the short-land.
1 Remove four solders.
3 flexible flat cable (16 core)
(optical pick-up)
4 CD board
5 optical pick-up block
(KSM-213DCP)
2
Solder the short-land.
Note 2: When assembling the optical pick-up block,
remove the solder of short-land after
connecting the wire (flat type) (16 core).
