Sony HCD-BX77DBi - MAIN BOARD SECTION; Main Board Exploded View and Components

46
HCD-BX77DBi

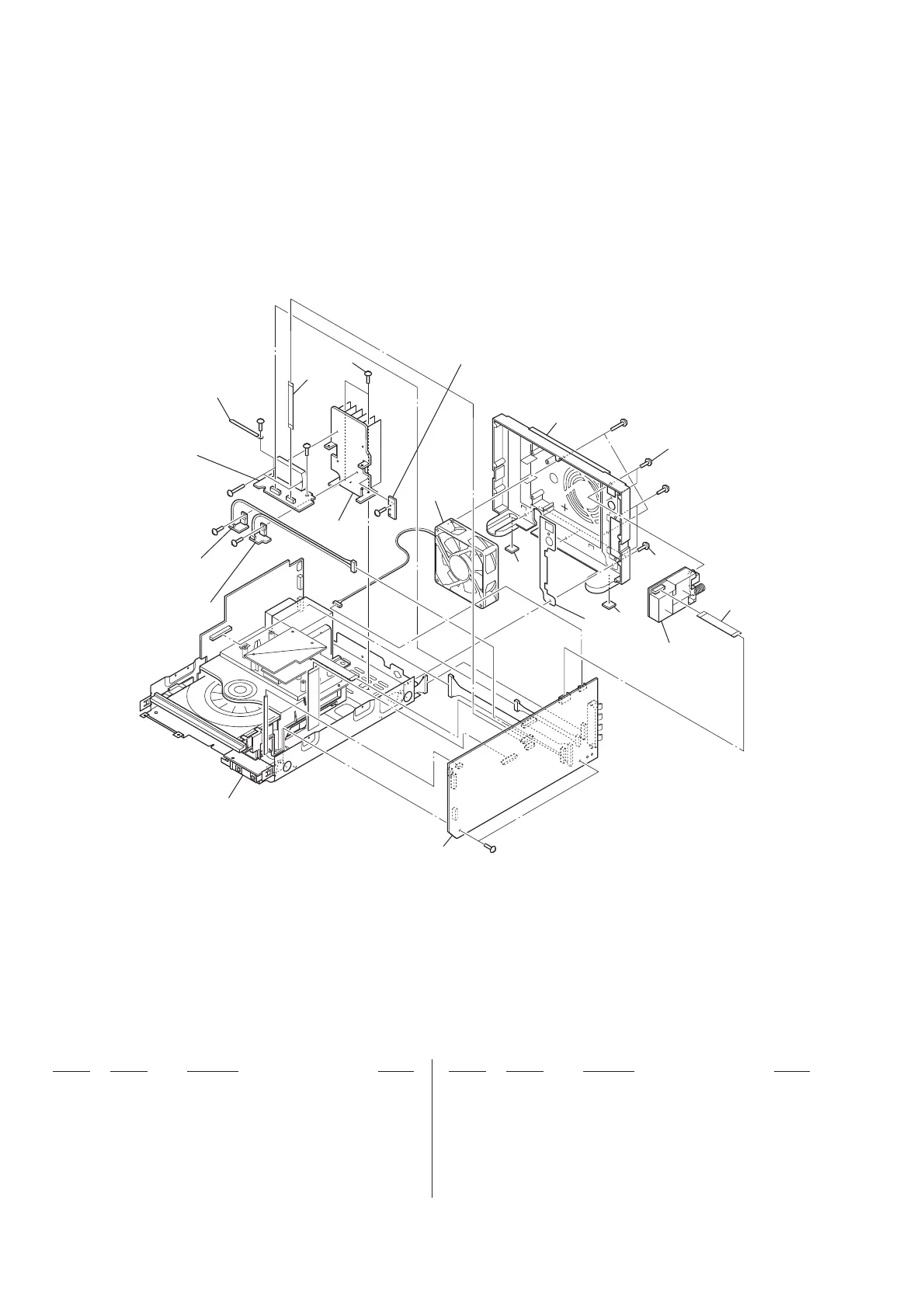

6-4. MAIN BOARD SECTION
151 A-1775-214-A MAIN BOARD, COMPLETE
152 1-832-803-21 CABLE, FLEXIBLE FLAT (7 CORE)
153 3-077-331-01 +BV3 (3-CR)
154 3-282-726-31 PANEL (REAR)
156 1-832-821-21 CABLE, FLEXIBLE FLAT (11 CORE)
157 4-233-372-02 FOOT (FELT)
158 1-693-759-11 TUNER (FM/AM)
160 2-580-628-01 SCREW, +BVTP S3X6 TYPE2
M901 1-787-400-11 D.C. FAN
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#5 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#7 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#1
160
#5
#5
#5
#7
160
#5
#5
#7
not
supplied
not
supplied
not supplied
M901
158
POWER board section
157
157
156
154
#3
151
152
153
not supplied
(GUARD board)
not supplied
(AMP board)
not supplied
(5VREG board)
not supplied
(9VREG board)
