Sony HCD-BX77DBi - BASE UNIT SECTION; Base Unit Exploded View and Components

49
HCD-BX77DBi

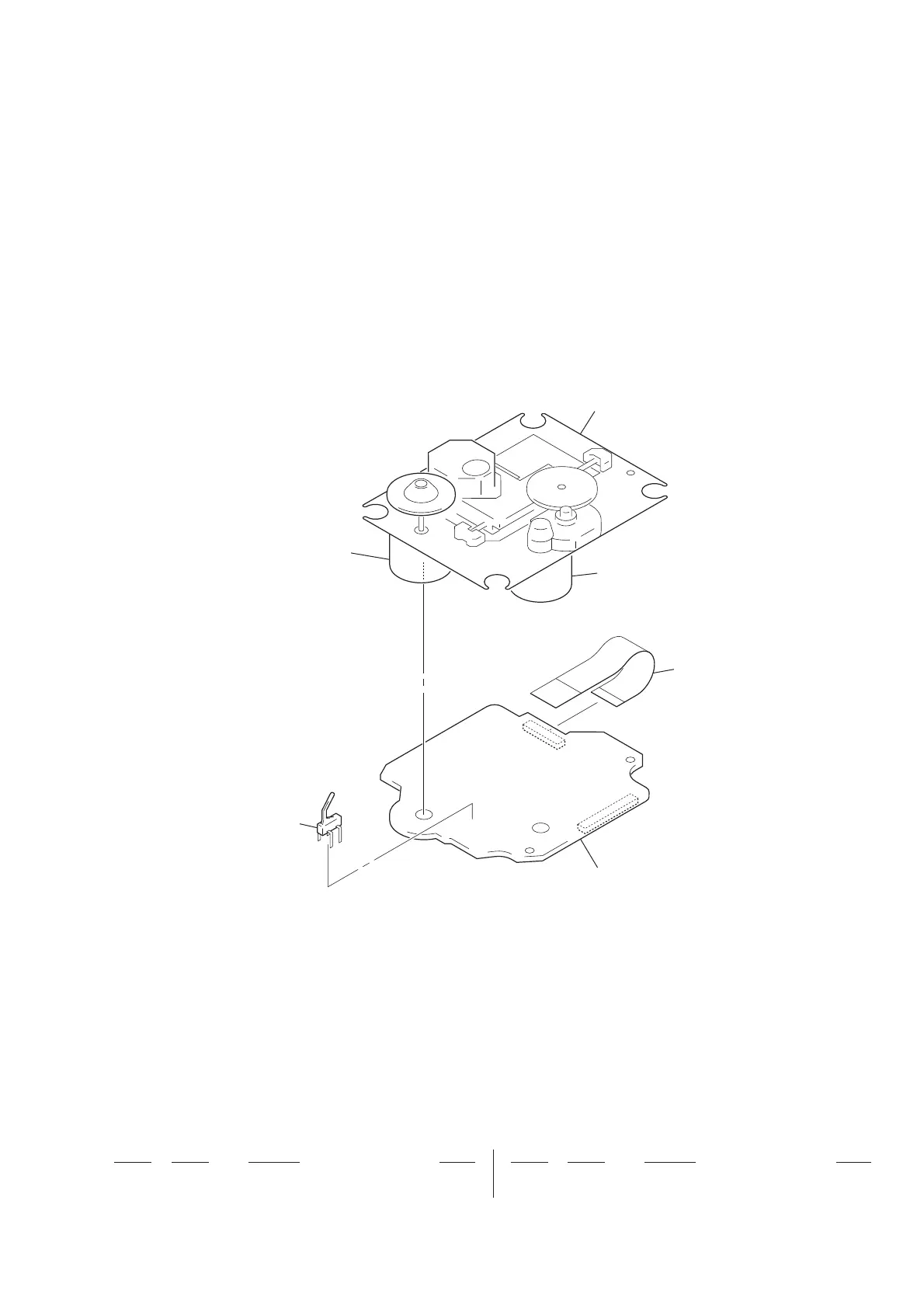

6-7. BASE UNIT SECTION (BU-K6BD90-WOD)
0 301 A-4735-357-A OPTICAL PICK-UP BLOCK (KSM-213D)
302 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
303 A-1217-914-A CD BOARD, COMPLETE
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301
(including sled motor (M402),
spindle motor (M401))
302
303
S201
sled motor (M402)
spindle motor (M401)
