Sony HCD-BX77DBi - TOP PANEL SECTION; Top Panel Assembly Details

44
HCD-BX77DBi

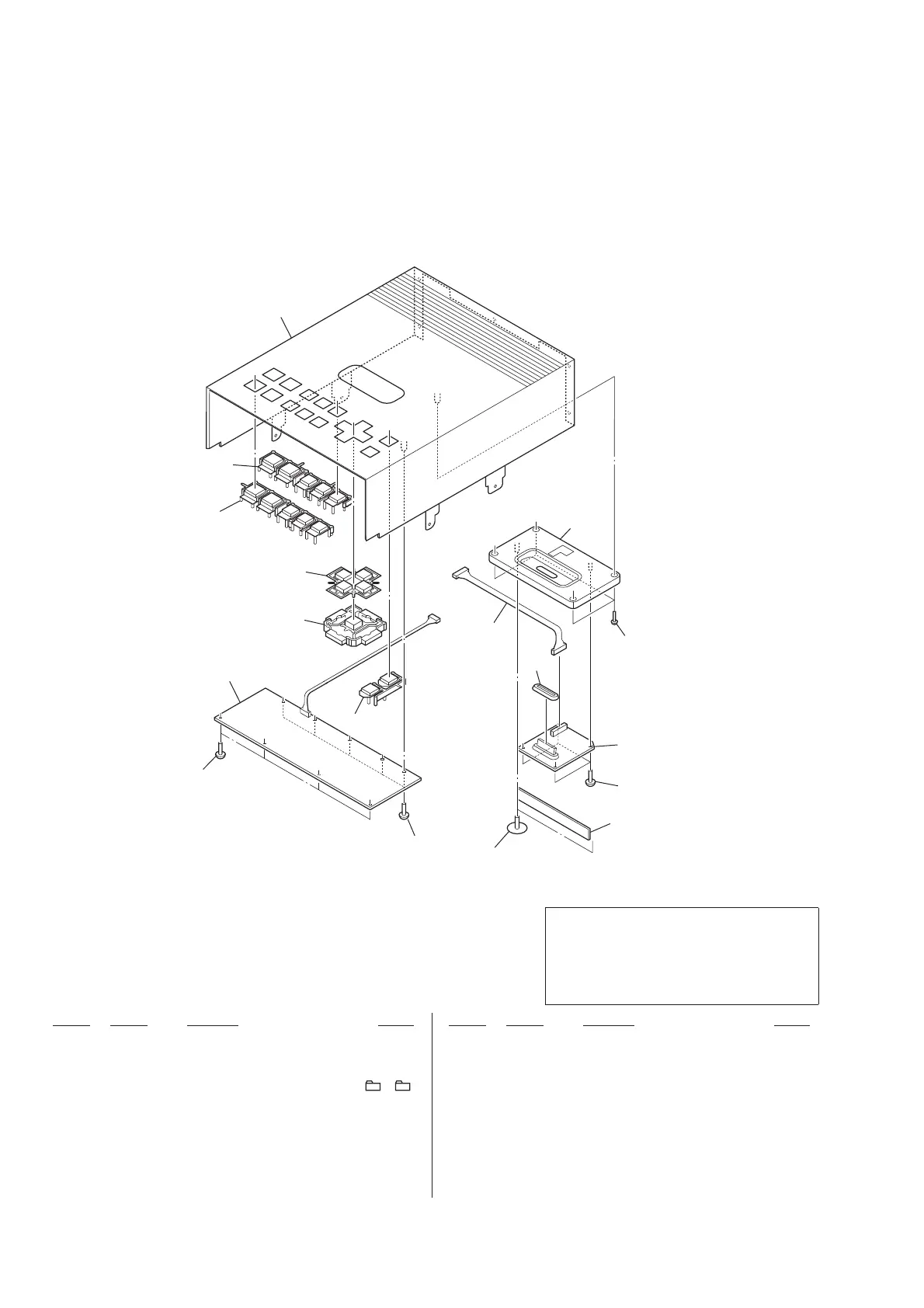

6-2. TOP PANEL SECTION
51 3-087-053-01 +BVTP2.6 (3CR)
52 3-282-748-01 BUTTON (VOL) (VOL +, VOL –)
53 3-282-738-01 BUTTON (ENTER)
54 3-282-739-01 BUTTON (TUNE) (
l m
TUNE –, +, –,
M L
TUNE +)
55 3-282-733-51 BUTTON (FUNCTION B) (iPod
u
, CD
u
,
x
CANCEL, DSGX, DAB AUTO SCAN)
56 3-282-732-21 BUTTON (FUNCTION) (TUNER/BAND, AUDIO IN,
FUNCTION, REPEAT/FM MODE,
PLAY MODE/TUNING MODE)
57 3-282-746-11 PANEL TOP (IP)
58 A-1541-488-A BASE (IP) ASSY
60 A-1466-251-A IP BOARD, COMPLETE (Former)
60 A-1788-743-A IP BOARD, COMPLETE (New)
61 4-674-137-11 SCREW (PTP2X5)
62 3-277-576-01 ESCUTCHEON
63 3-921-725-01 SCREW (2.6X10), +PWH
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
57
56
55
54
53
52
60
62
61
58
51
51
51
63
not supplied
(TOP KEY board)
not supplied
(HOLD board)
not supplied
Note: (Former)
AEP model : Serial No. 5100858 or smaller
UK model : Serial No. 6123117 or smaller
(New)
AEP model : Serial No. 5100859 or larger
UK model : Serial No. 6123118 or larger
Ver. 1.1
